  1. 1. SMACK Stack 1.1
  2. 2. Elodina is a big data as a service platform built on top of open source software. The Elodina platform solves today’s data analytics needs by providing the tools and support necessary to utilize open source technologies. http://www.elodina.net/

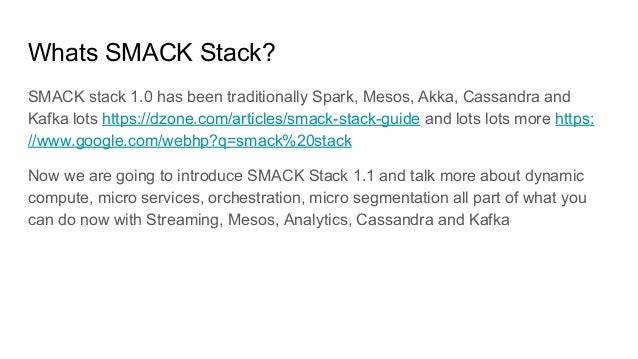

  3. 3. Whats SMACK Stack? SMACK stack 1.0 has been traditionally Spark, Mesos, Akka, Cassandra and Kafka lots https://dzone.com/articles/smack-stack-guide and lots lots more https: //www.google.com/webhp?q=smack%20stack Now we are going to introduce SMACK Stack 1.1 and talk more about dynamic compute, micro services, orchestration, micro segmentation all part of what you can do now with Streaming, Mesos, Analytics, Cassandra and Kafka

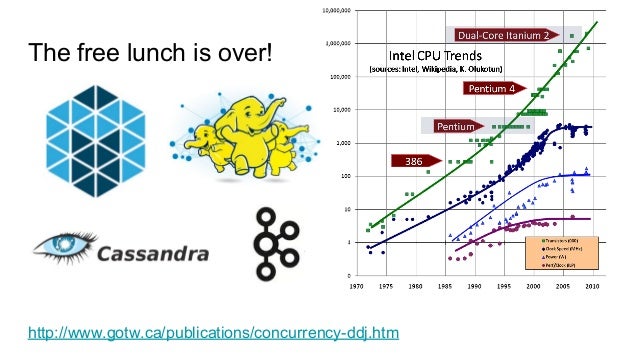

  4. 4. The free lunch is over! http://www.gotw.ca/publications/concurrency-ddj.htm

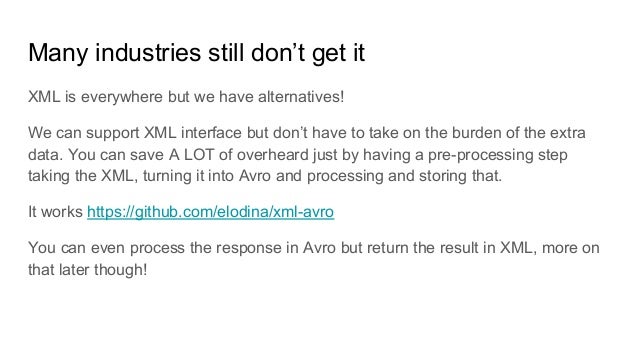

  5. 5. Many industries still don’t get it XML is everywhere but we have alternatives! We can support XML interface but don’t have to take on the burden of the extra data. You can save A LOT of overheard just by having a pre-processing step taking the XML, turning it into Avro and processing and storing that. It works https://github.com/elodina/xml-avro You can even process the response in Avro but return the result in XML, more on that later though!

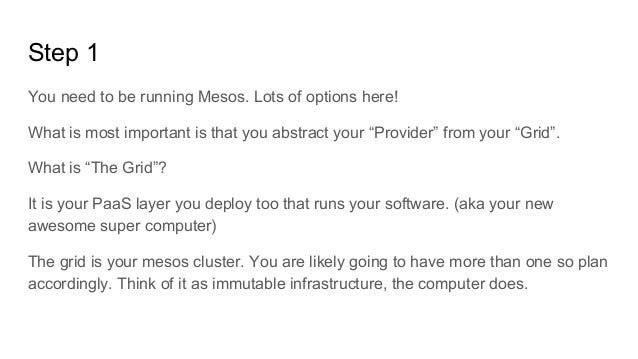

  6. 6. You need to be running Mesos. Lots of options here! What is most important is that you abstract your “Provider” from your “Grid”. What is “The Grid”? It is your PaaS layer you deploy too that runs your software. (aka your new awesome super computer) The grid is your mesos cluster. You are likely going to have more than one so plan accordingly. Think of it as immutable infrastructure, the computer does. Step 1

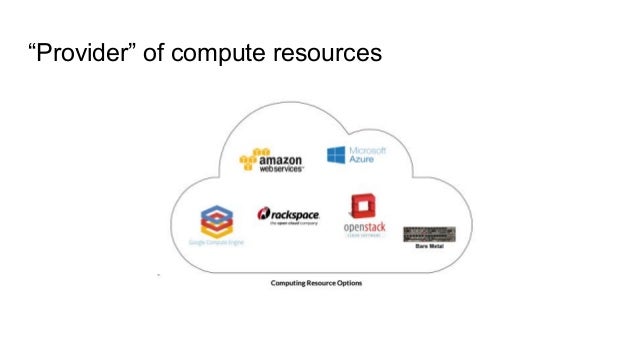

  7. 7. “Provider” of compute resources

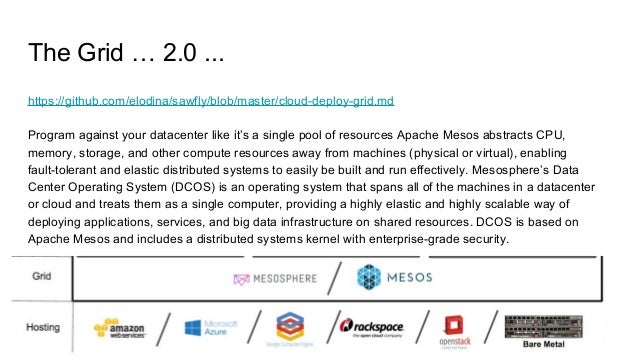

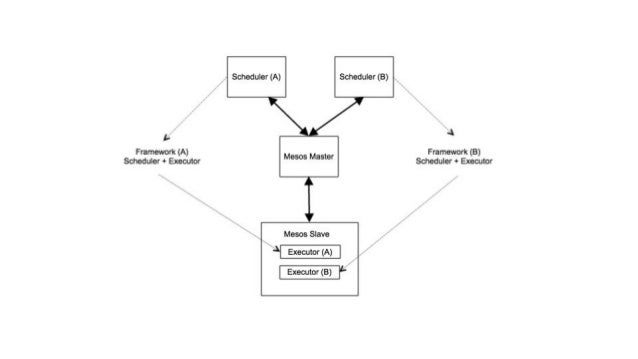

  8. 8. The Grid … 2.0 ... https://github.com/elodina/sawfly/blob/master/cloud-deploy-grid.md Program against your datacenter like it’s a single pool of resources Apache Mesos abstracts CPU, memory, storage, and other compute resources away from machines (physical or virtual), enabling fault-tolerant and elastic distributed systems to easily be built and run effectively. Mesosphere’s Data Center Operating System (DCOS) is an operating system that spans all of the machines in a datacenter or cloud and treats them as a single computer, providing a highly elastic and highly scalable way of deploying applications, services, and big data infrastructure on shared resources. DCOS is based on Apache Mesos and includes a distributed systems kernel with enterprise-grade security.

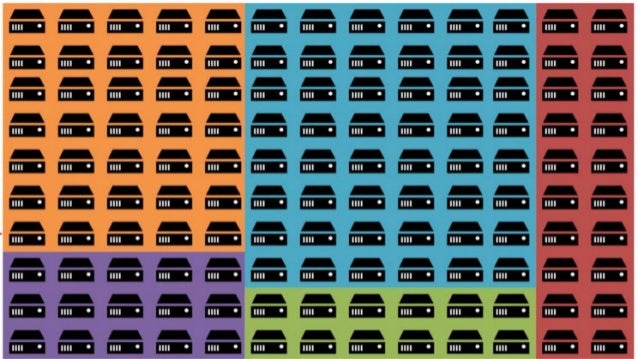

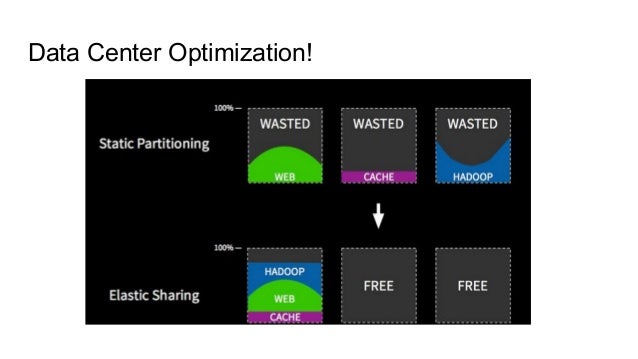

  9. 9. Data Center Optimization!

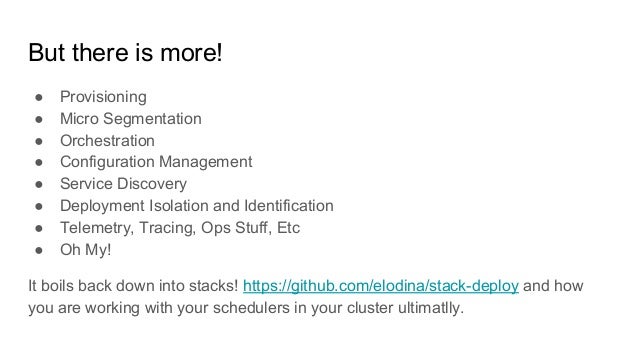

  10. 10. But there is more! ● Provisioning ● Micro Segmentation ● Orchestration ● Configuration Management ● Service Discovery ● Deployment Isolation and Identification ● Telemetry, Tracing, Ops Stuff, Etc ● Oh My! It boils back down into stacks! https://github.com/elodina/stack-deploy and how you are working with your schedulers in your cluster ultimatlly.

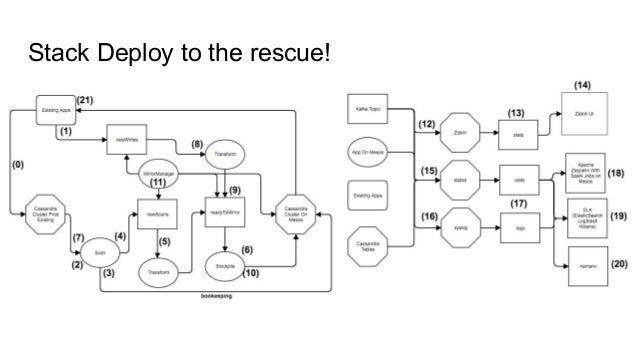

  11. 11. Stack Deploy to the rescue!

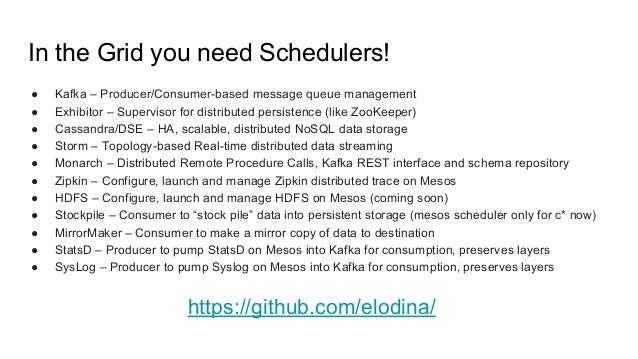

  12. 12. In the Grid you need Schedulers! ● Kafka – Producer/Consumer-based message queue management ● Exhibitor – Supervisor for distributed persistence (like ZooKeeper) ● Cassandra/DSE – HA, scalable, distributed NoSQL data storage ● Storm – Topology-based Real-time distributed data streaming ● Monarch – Distributed Remote Procedure Calls, Kafka REST interface and schema repository ● Zipkin – Configure, launch and manage Zipkin distributed trace on Mesos ● HDFS – Configure, launch and manage HDFS on Mesos (coming soon) ● Stockpile – Consumer to “stock pile” data into persistent storage (mesos scheduler only for c* now) ● MirrorMaker – Consumer to make a mirror copy of data to destination ● StatsD – Producer to pump StatsD on Mesos into Kafka for consumption, preserves layers ● SysLog – Producer to pump Syslog on Mesos into Kafka for consumption, preserves layers https://github.com/elodina/

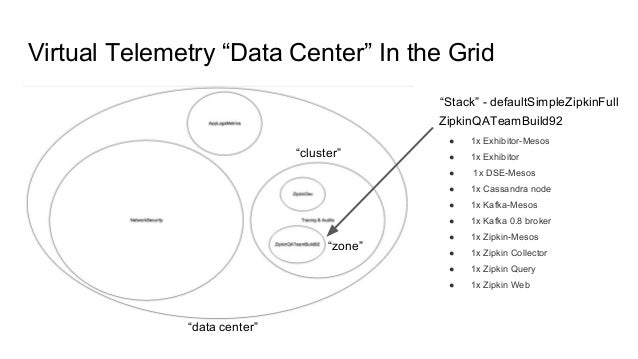

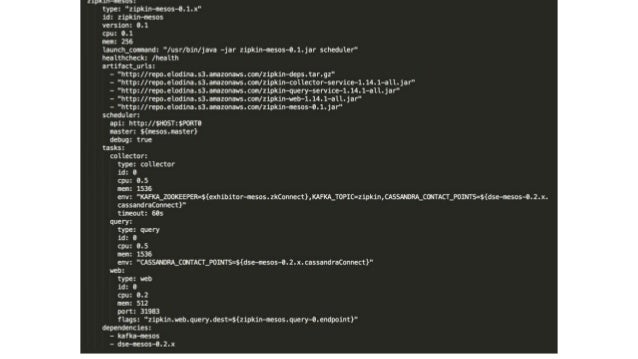

  13. 13. Virtual Telemetry “Data Center” In the Grid ZipkinQATeamBuild92 ● 1x Exhibitor-Mesos ● 1x Exhibitor ● 1x DSE-Mesos ● 1x Cassandra node ● 1x Kafka-Mesos ● 1x Kafka 0.8 broker ● 1x Zipkin-Mesos ● 1x Zipkin Collector ● 1x Zipkin Query ● 1x Zipkin Web “cluster” “zone” “Stack” - defaultSimpleZipkinFull “data center”

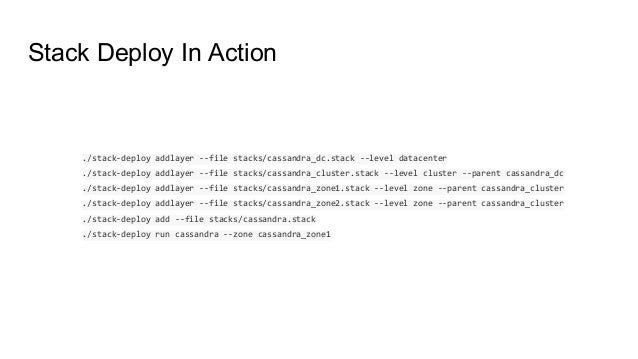

  14. 14. Stack Deploy In Action ./stack-deploy addlayer --file stacks/cassandra_dc.stack --level datacenter ./stack-deploy addlayer --file stacks/cassandra_cluster.stack --level cluster --parent cassandra_dc ./stack-deploy addlayer --file stacks/cassandra_zone1.stack --level zone --parent cassandra_cluster ./stack-deploy addlayer --file stacks/cassandra_zone2.stack --level zone --parent cassandra_cluster ./stack-deploy add --file stacks/cassandra.stack ./stack-deploy run cassandra --zone cassandra_zone1

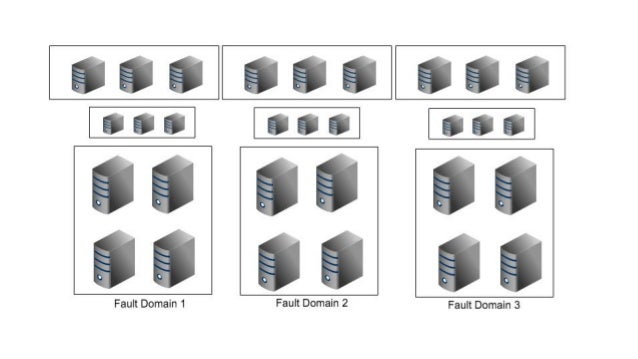

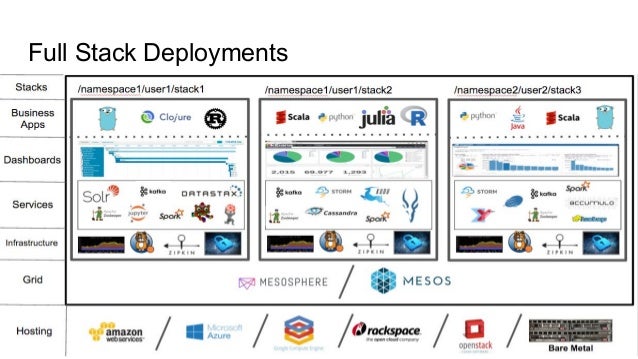

  15. 15. Full Stack Deployments

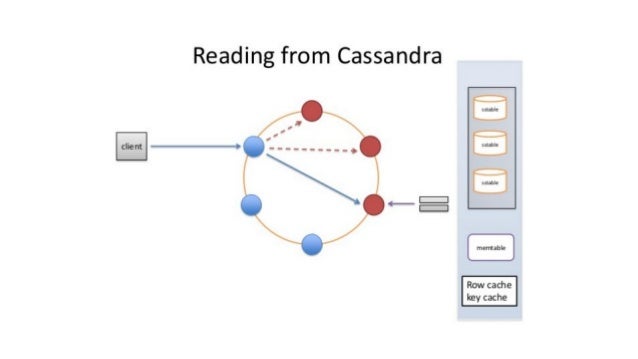

  16. 16. Cassandra

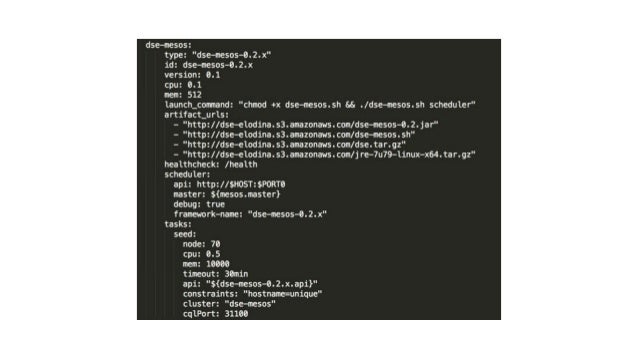

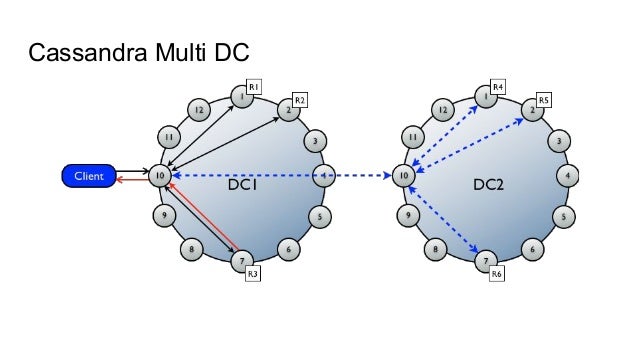

  17. 17. Cassandra Multi DC
  18. 18. Casandra https://github.com/elodina/datastax-enterprise-mesos

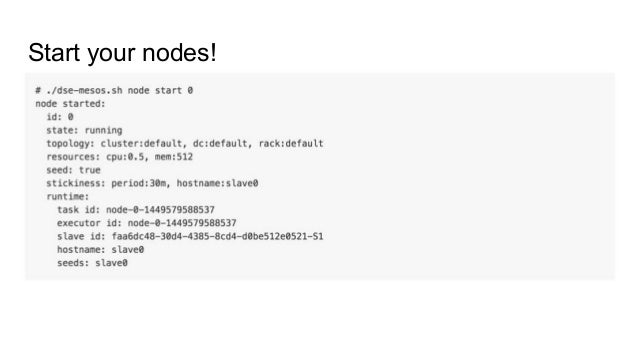

  19. 19. Start your nodes!

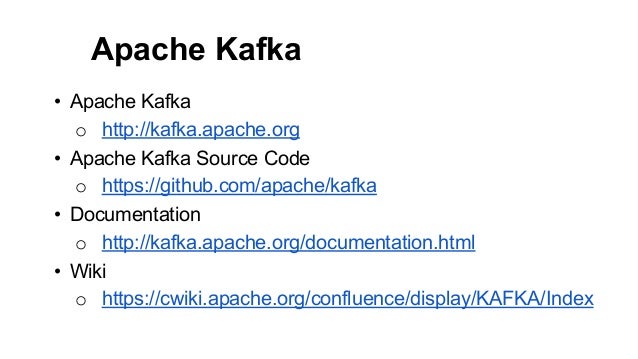

  20. 20. Apache Kafka • Apache Kafka o http://kafka.apache.org • Apache Kafka Source Code o https://github.com/apache/kafka • Documentation o http://kafka.apache.org/documentation.html • Wiki o https://cwiki.apache.org/confluence/display/KAFKA/Index

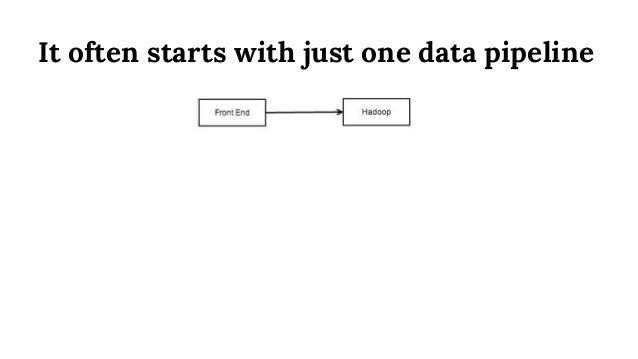

  21. 21. It often starts with just one data pipeline
  22. 22. Reuse of data pipelines for new producers
  23. 23. Reuse of existing providers for new consumers

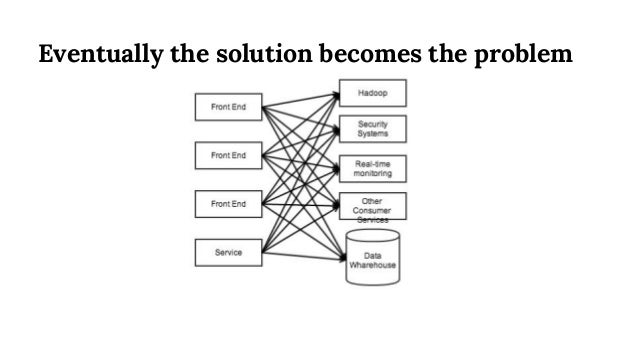

  24. 24. Eventually the solution becomes the problem

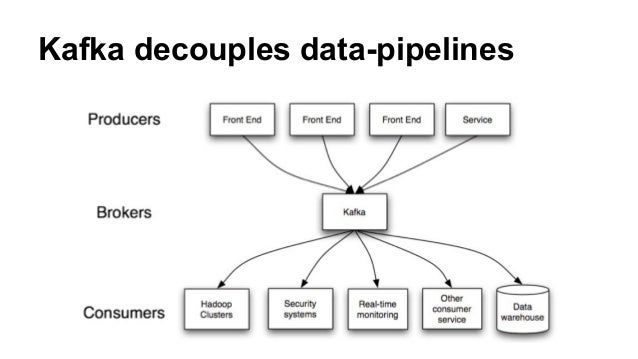

  25. 25. Kafka decouples data-pipelines
  26. 26. Topics & Partitions
  27. 27. A high-throughput distributed messaging system rethought as a distributed commit log.
  28. 28. Intra Cluster Replication
  29. 29. Mesos Kafka http://github.com/mesos/kafka
  30. 30. Streaming & Analytics ● The landscape of streaming is about to get more fragmented and harder to navigate. This is not all bad news and it is not much different than where we were with NoSQL 6 years ago or so. ● Different systems are getting really (really (really)) good at different things. ○ Dag based systems ○ Event based systems ○ Query & Execution Engines ○ Streaming Engines ○ Etc!
  31. 31. GearPump
  32. 32. Airflow
  33. 33. Spring Cloud Data Flow
  34. 34. Storm (and Storm Topology based systems)
  35. 35. Storm Nimbus { "id": "storm-nimbus", "cmd": "cp storm.yaml storm-mesos-0.9.6/conf && cd storm-mesos-0.9.6 && ./bin/storm-mesos nimbus -c mesos.master.url=zk: //zookeeper.service:2181/mesos -c storm.zookeeper.servers="["zookeeper.service"]" -c nimbus.thrift.port=$PORT0 -c topology. mesos.worker.cpu=0.5 -c topology.mesos.worker.mem.mb=615 -c worker.childopts=-Xmx512m -c topology.mesos.executor.cpu=0.1 -c topology.mesos.executor.mem.mb=160 -c supervisor.childopts=-Xmx128m -c mesos.executor.uri=http://repo.elodina.s3.amazonaws. com/storm-mesos-0.9.6.tgz -c storm.log.dir=$(pwd)/logs", "cpus": 1.0, "mem": 1024, "ports": [31056], "requirePorts": true, "instances": 1, "uris": [ "http://repo.elodina.s3.amazonaws.com/storm-mesos-0.9.6.tgz", "http://repo.elodina.s3.amazonaws.com/storm.yaml" ] }
  36. 36. Storm UI { "id": "storm-ui", "cmd": "cp storm.yaml storm-mesos-0.9.6/conf && cd storm-mesos-0.9.6 && ./bin/storm ui -c ui.port=$PORT0 -c nimbus.thrift.port=31056 -c nimbus. host=storm-nimbus.service -c storm.log.dir=$(pwd)/logs", "cpus": 0.2, "mem": 512, "ports": [31067], "requirePorts": true, "instances": 1, "uris": [ "http://repo.elodina.s3.amazonaws.com/storm-mesos-0.9.6.tgz", "http://repo.elodina.s3.amazonaws.com/storm.yaml" ], "healthChecks": [ { "protocol": "HTTP", "portIndex": 0, "path": "/", "gracePeriodSeconds": 120, "intervalSeconds": 20, "maxConsecutiveFailures": 3 } ] }
  37. 37. Storm Kafka - new spouts & bolts for Kafka 8, 9, ...
  38. 38. Apache Kafka Streams
  39. 39. Go Kafka Client - Fan Out Processing https://github.com/elodina/go-kafka-client-mesos ● Dynamic Kafka Log workers ● Blue/Green Deploy Support ● Fan Out Processing ● Auditable ● Batches ● Scalable/Auto-Scalable
  40. 40. Questions? http://www.elodina.net
