  1. 1. Cassandra & Redis Diego Pacheco
  2. 2. Cassandra
  3. 3. Cassandra ❏ FOSS ❏ NoSQL Database ❏ Low Latency ❏ High Throughput ❏ Battle tested by Netflix, Apple, Facebook. ❏ AP on CAP - Favors availability over consistency. ❏ Multi-region support. ❏ Great software but hard to operate.

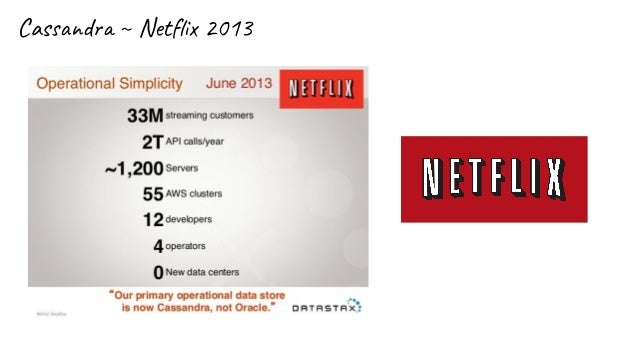

  4. 4. Cassandra ~ Netflix 2013

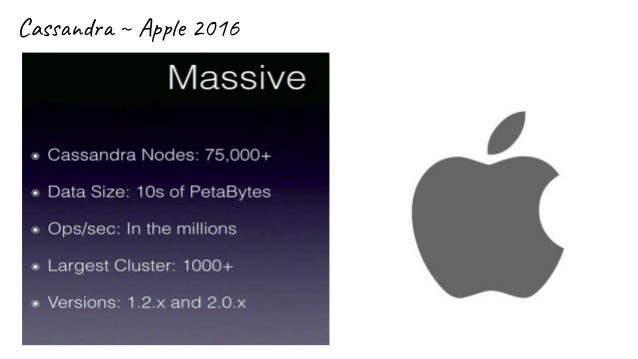

  5. 5. Cassandra ~ Apple 2016

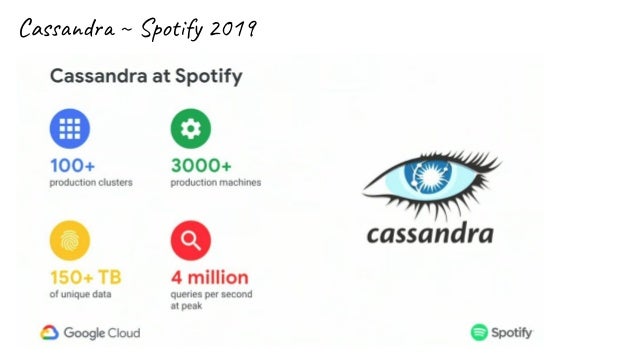

  6. 6. Cassandra ~ Spotify 2019

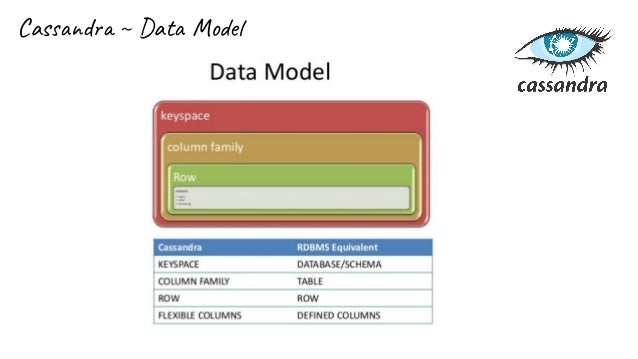

  7. 7. Cassandra ~ Data Model

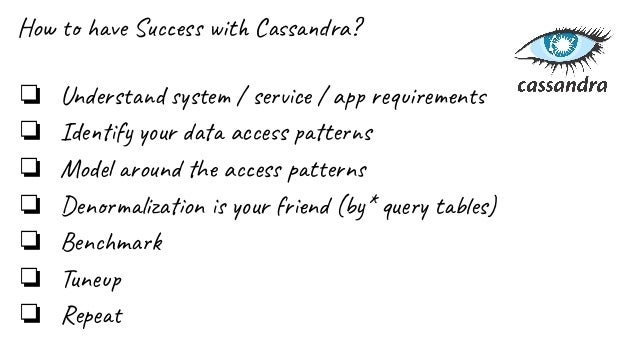

  8. 8. How to have Success with Cassandra? ❏ Understand system / service / app requirements ❏ Identify your data access patterns ❏ Model around the access patterns ❏ Denormalization is your friend (by* query tables) ❏ Benchmark ❏ Tuneup ❏ Repeat

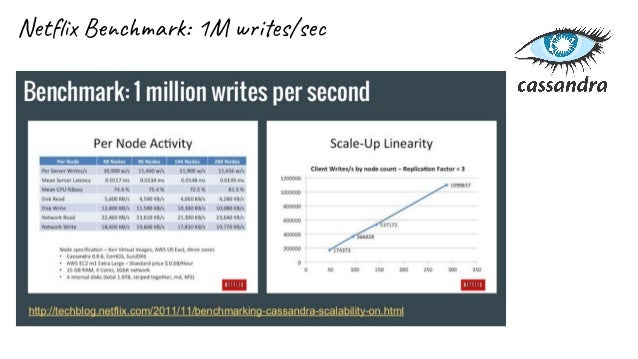

  9. 9. Netflix Benchmark: 1M writes/sec

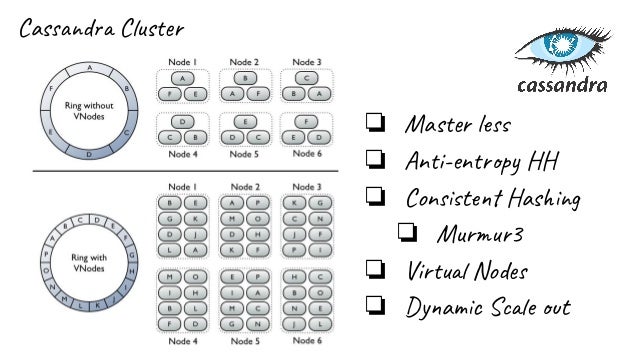

  10. 10. Cassandra Cluster ❏ Master less ❏ Anti-entropy HH ❏ Consistent Hashing ❏ Murmur3 ❏ Virtual Nodes ❏ Dynamic Scale out

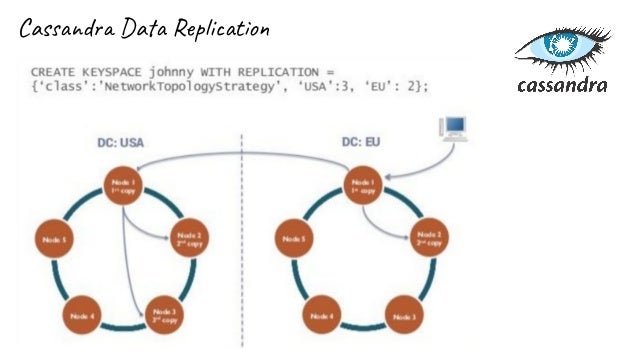

  11. 11. Cassandra Data Replication

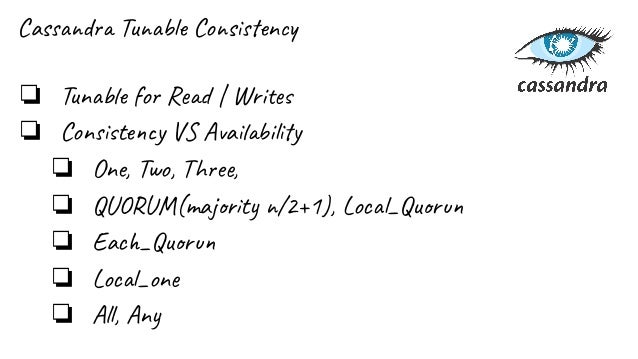

  12. 12. Cassandra Tunable Consistency ❏ Tunable for Read | Writes ❏ Consistency VS Availability ❏ One, Two, Three, ❏ QUORUM(majority n/2+1), Local_Quorun ❏ Each_Quorun ❏ Local_one ❏ All, Any

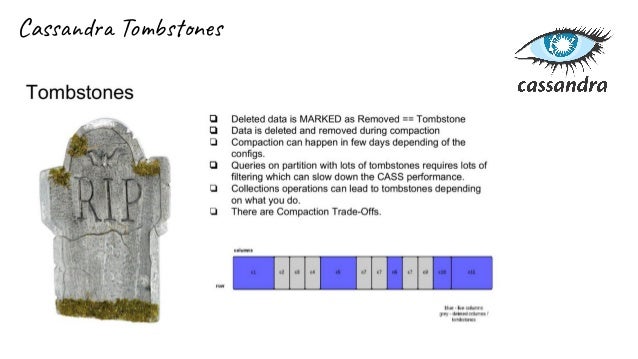

  13. 13. Cassandra Tombstones

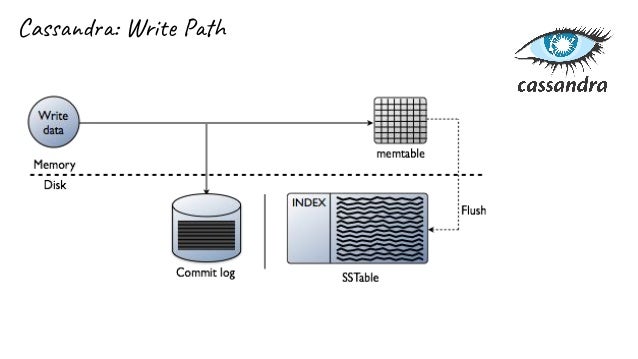

  14. 14. Cassandra: Write Path

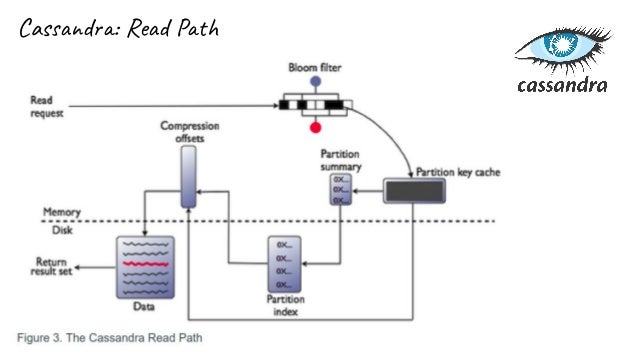

  15. 15. Cassandra: Read Path

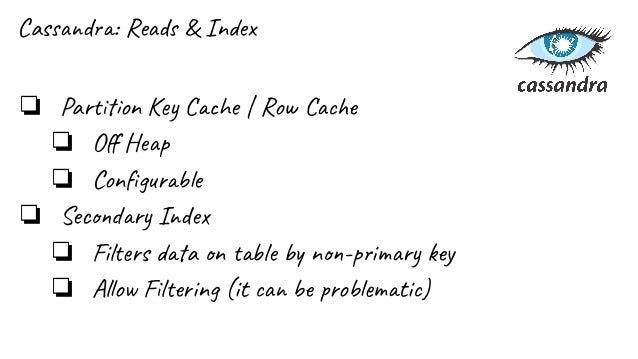

  16. 16. Cassandra: Reads & Index ❏ Partition Key Cache | Row Cache ❏ Off Heap ❏ Configurable ❏ Secondary Index ❏ Filters data on table by non-primary key ❏ Allow Filtering (it can be problematic)
  17. 17. Cassandra: Compaction ❏ Merge SSTables ❏ Can be trigger by node_tool ❏ Impact Cassandra Performance ❏ Different Strategies for different workloads

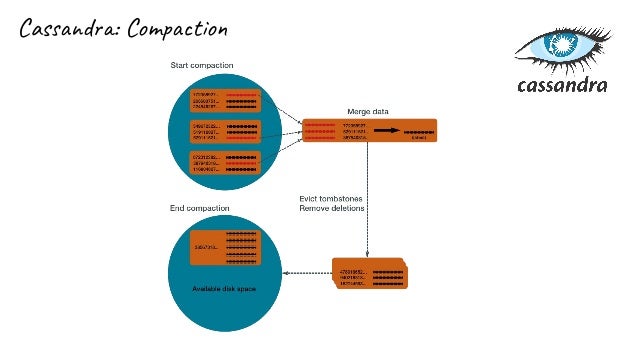

  18. 18. Cassandra: Compaction

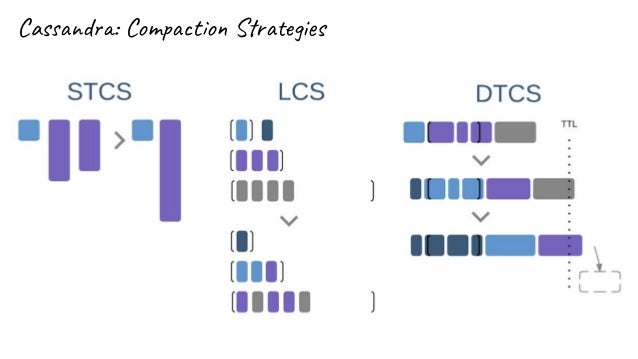

  19. 19. Cassandra: Compaction Strategies

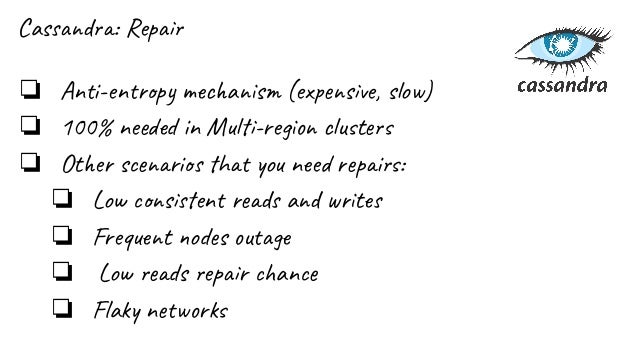

  20. 20. Cassandra: Repair ❏ Anti-entropy mechanism (expensive, slow) ❏ 100% needed in Multi-region clusters ❏ Other scenarios that you need repairs: ❏ Low consistent reads and writes ❏ Frequent nodes outage ❏ Low reads repair chance ❏ Flaky networks
  21. 21. Cassandra: Read Repair ❏ Easy and cheap (when reading from multiples replicas) ❏ Hot Data will be repaired a lot

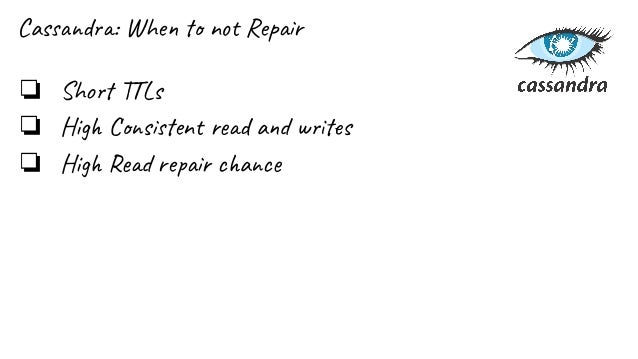

  22. 22. Cassandra: When to not Repair ❏ Short TTLs ❏ High Consistent read and writes ❏ High Read repair chance

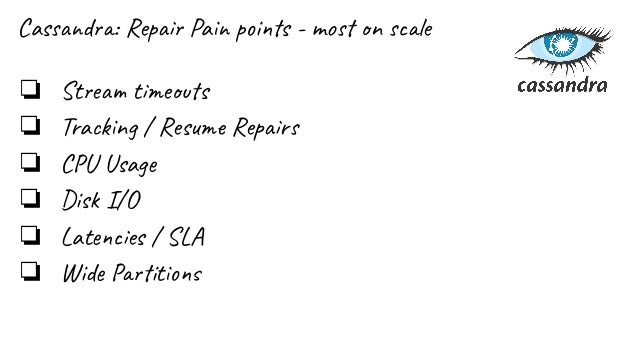

  23. 23. Cassandra: Repair Pain points - most on scale ❏ Stream timeouts ❏ Tracking / Resume Repairs ❏ CPU Usage ❏ Disk I/O ❏ Latencies / SLA ❏ Wide Partitions

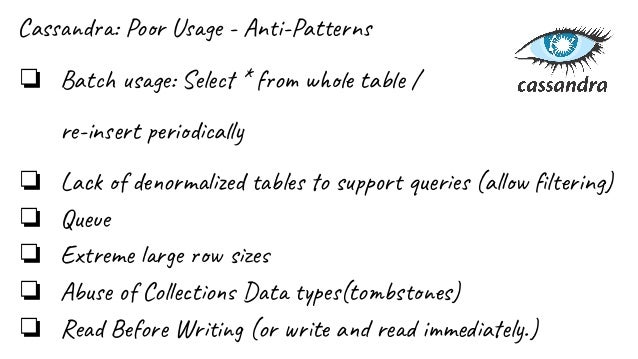

  24. 24. Cassandra: Poor Usage - Anti-Patterns ❏ Batch usage: Select * from whole table / re-insert periodically ❏ Lack of denormalized tables to support queries (allow filtering) ❏ Queue ❏ Extreme large row sizes ❏ Abuse of Collections Data types(tombstones) ❏ Read Before Writing (or write and read immediately.)
  25. 25. Running Cassandra: $ bin/cassandra

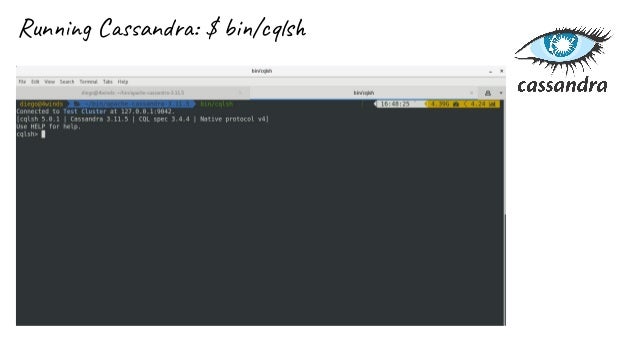

  26. 26. Running Cassandra: $ bin/cqlsh

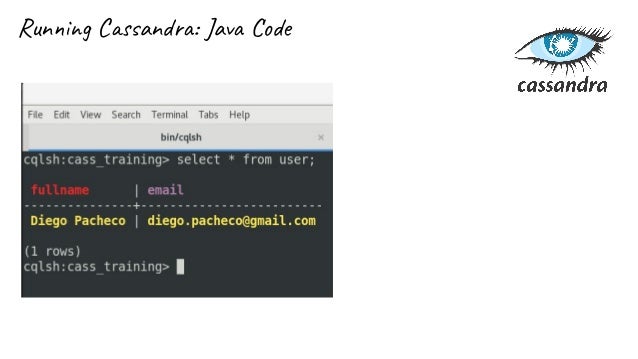

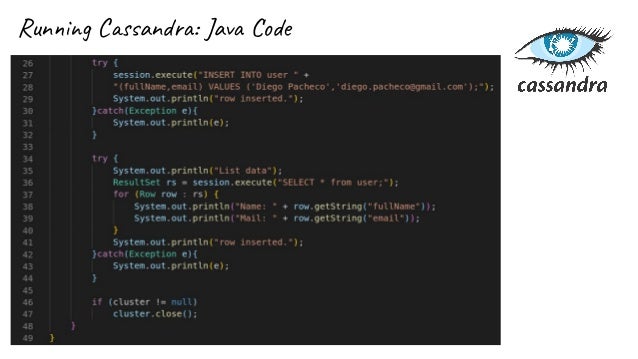

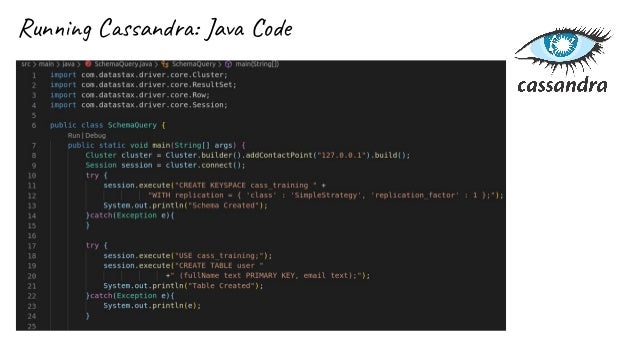

  27. 27. Running Cassandra: Java Code

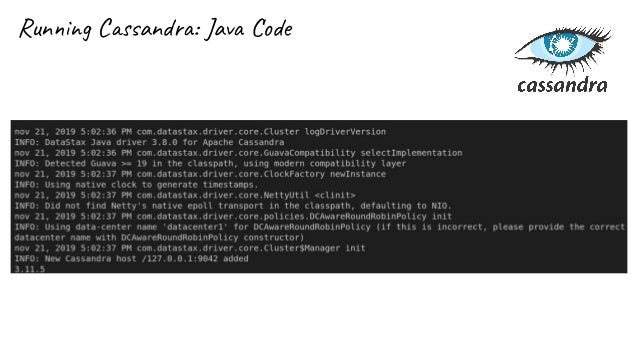

  28. 28. Running Cassandra: Java Code
  29. 29. Running Cassandra: Java Code
  30. 30. Running Cassandra: Java Code
  31. 31. Running Cassandra: Java Code
  32. 32. Running Cassandra: Java Code Async

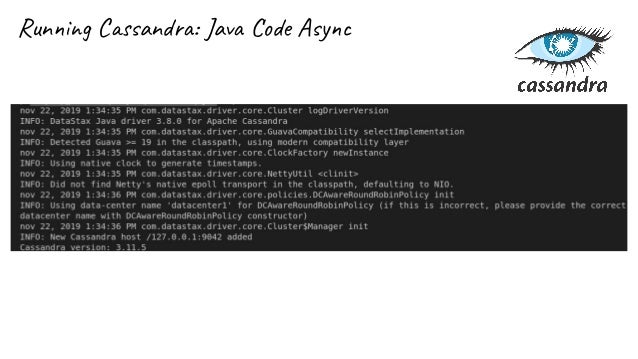

  33. 33. Running Cassandra: Java Code Async

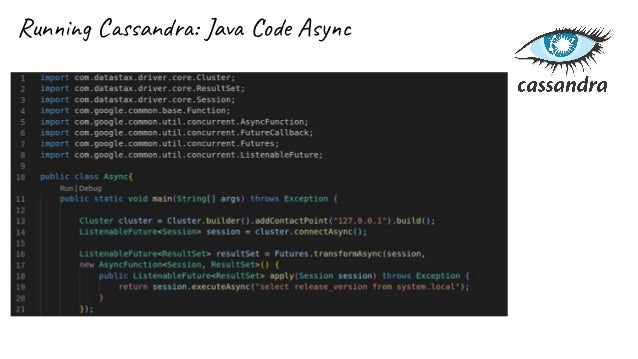

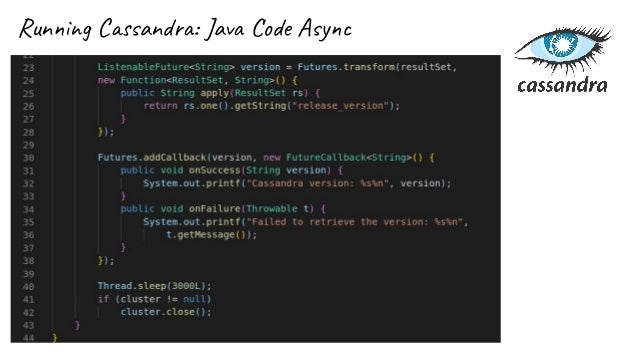

  34. 34. Running Cassandra: Java Code Async
  35. 35. Running Cassandra: Java Code Mapper

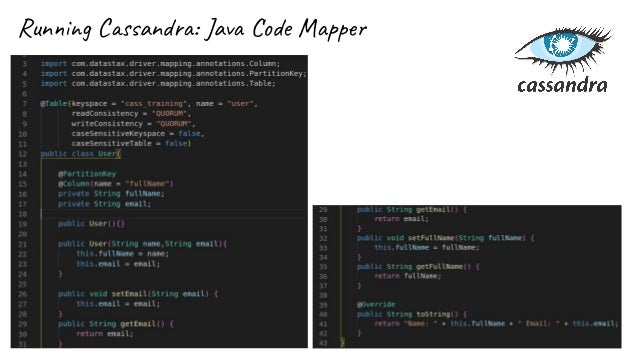

  36. 36. Running Cassandra: Java Code Mapper

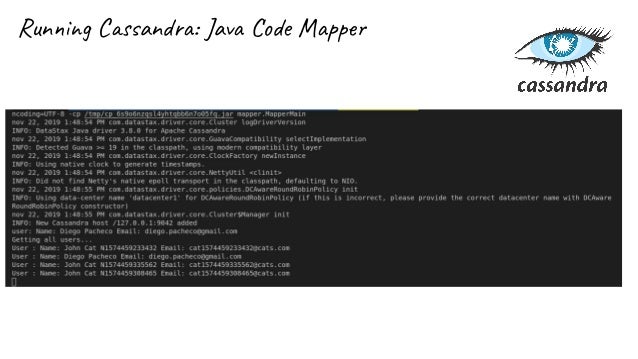

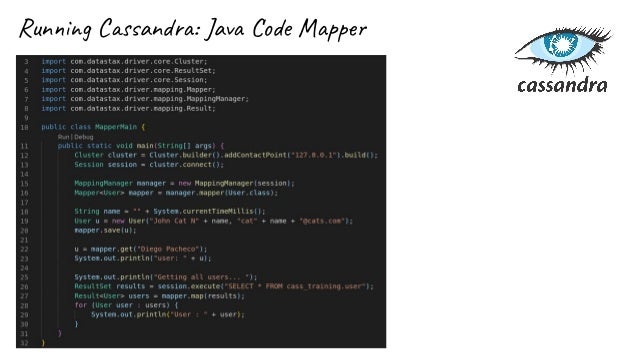

  37. 37. Running Cassandra: Java Code Mapper

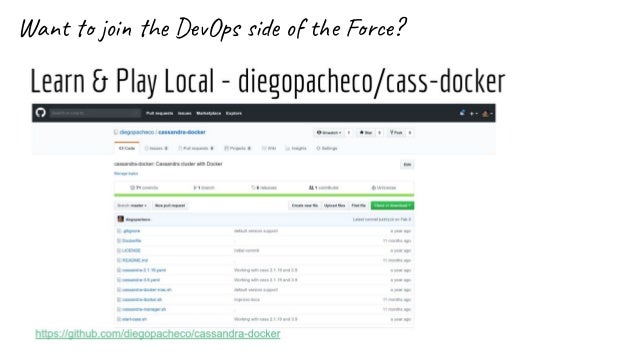

  38. 38. Want to join the DevOps side of the Force?
  39. 39. Redis

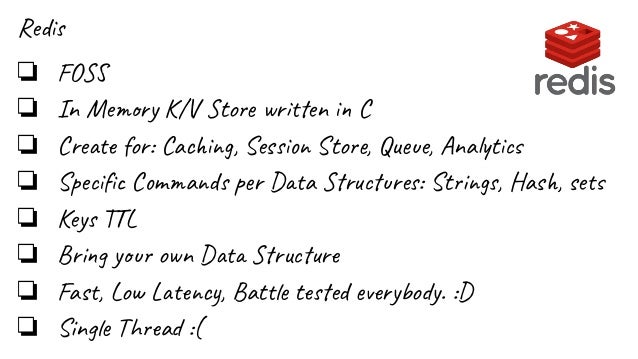

  40. 40. Redis ❏ FOSS ❏ In Memory K/V Store written in C ❏ Create for: Caching, Session Store, Queue, Analytics ❏ Specific Commands per Data Structures: Strings, Hash, sets ❏ Keys TTL ❏ Bring your own Data Structure ❏ Fast, Low Latency, Battle tested everybody. :D ❏ Single Thread :(

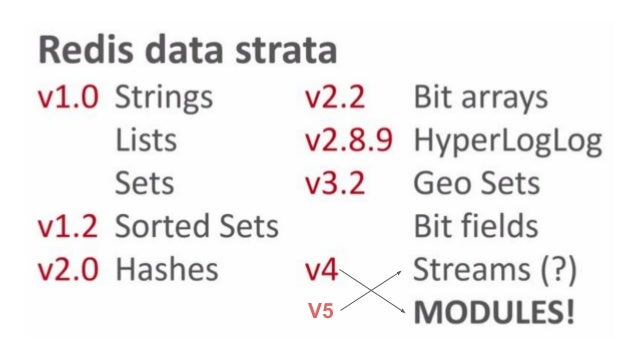

  41. 41. V5

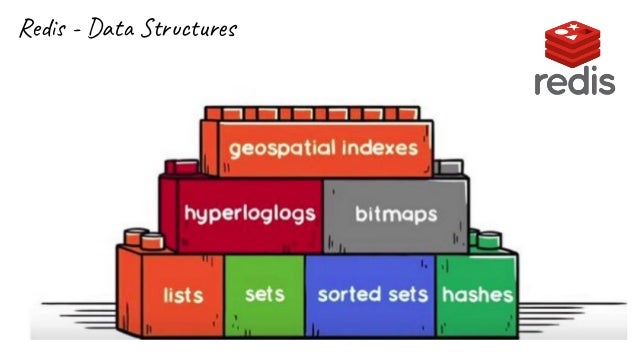

  42. 42. Redis - Data Structures

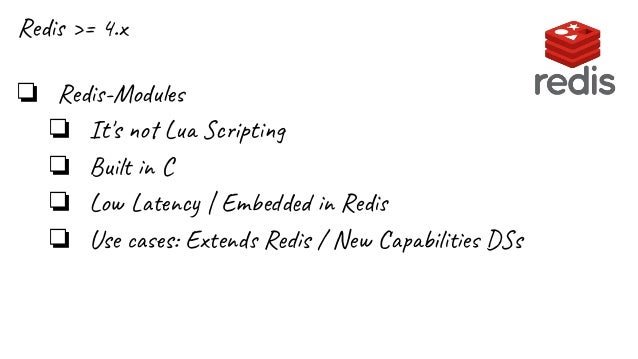

  43. 43. Redis >= 4.x ❏ Redis-Modules ❏ It's not Lua Scripting ❏ Built in C ❏ Low Latency | Embedded in Redis ❏ Use cases: Extends Redis / New Capabilities DSs

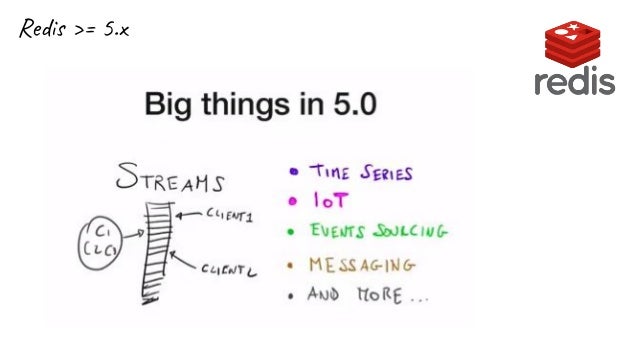

  44. 44. Redis >= 5.x

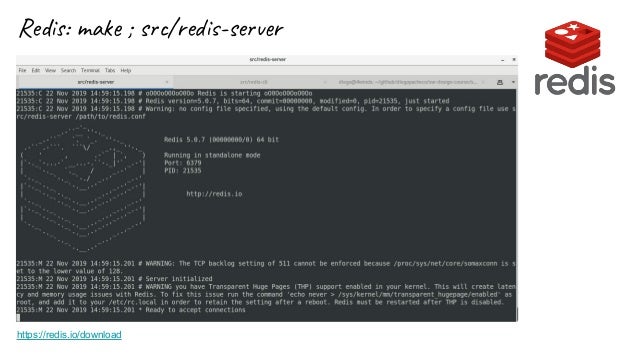

  45. 45. Redis: make ; src/redis-server https://redis.io/download
  46. 46. Redis: src/redis-cli https://redis.io/download

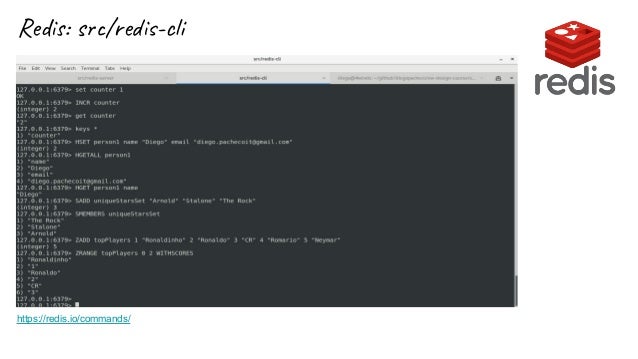

  47. 47. Redis: src/redis-cli https://redis.io/commands/

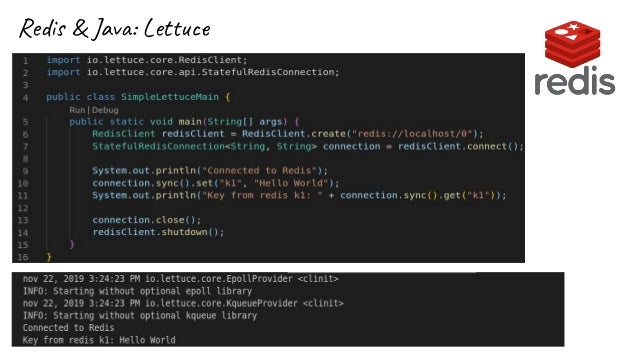

  48. 48. Redis & Java: Lettuce

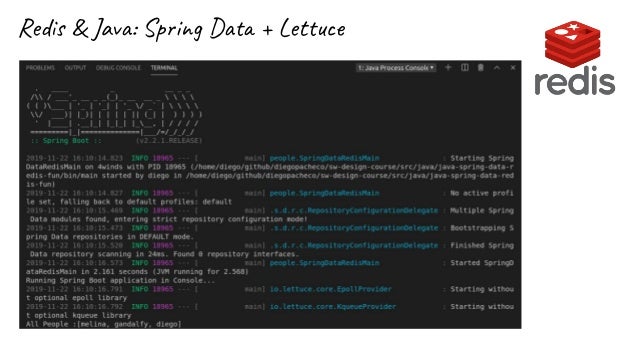

  49. 49. Redis & Java: Spring Data + Lettuce
  50. 50. Redis & Java: Spring Data + Lettuce

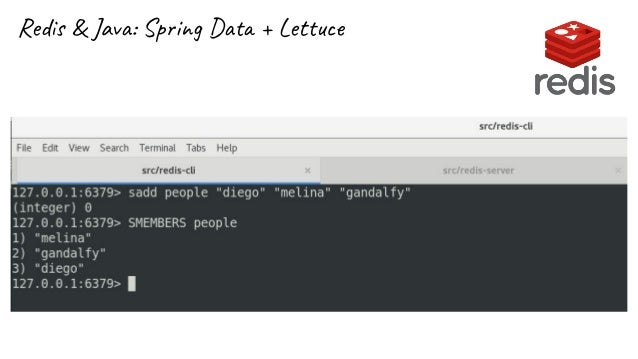

  51. 51. Redis & Java: Spring Data + Lettuce

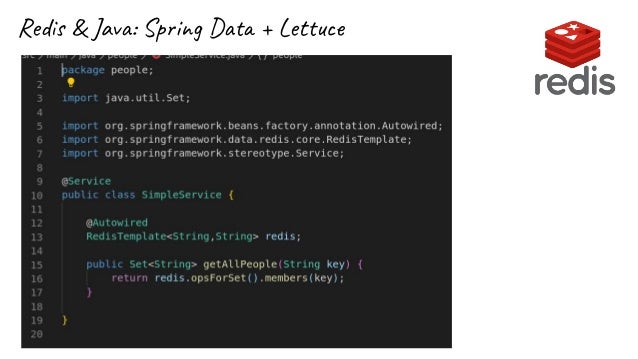

  52. 52. Redis & Java: Spring Data + Lettuce

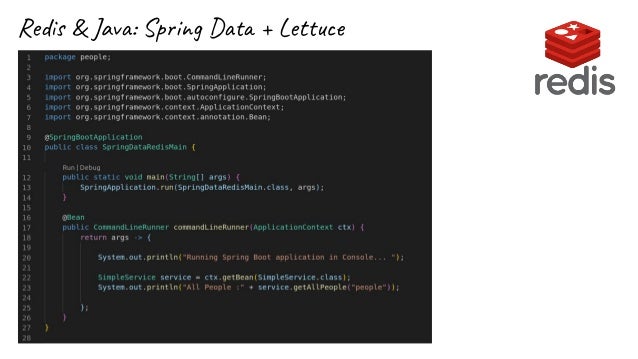

  53. 53. Redis & Java: Spring Data + Lettuce
  54. 54. Redis & Java: Spring Data + Lettuce : Hash Mapping

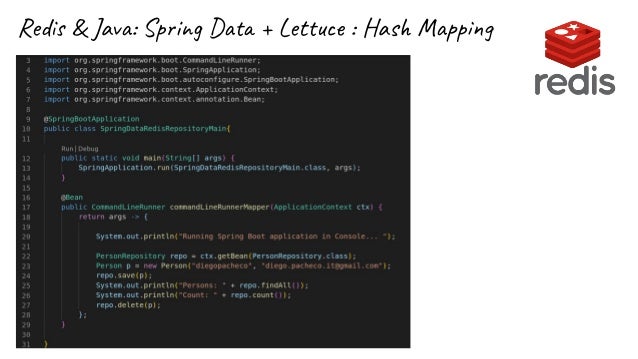

  55. 55. Redis & Java: Spring Data + Lettuce : Hash Mapping

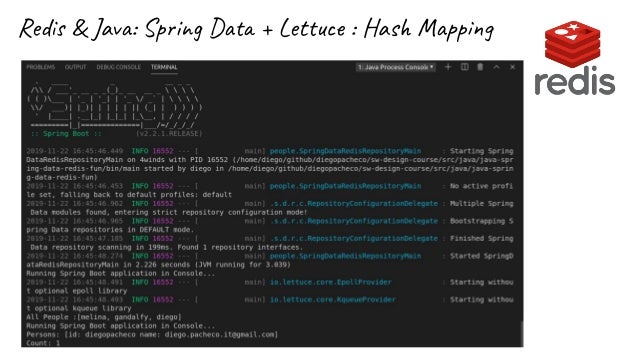

  56. 56. Redis & Java: Spring Data + Lettuce : Hash Mapping

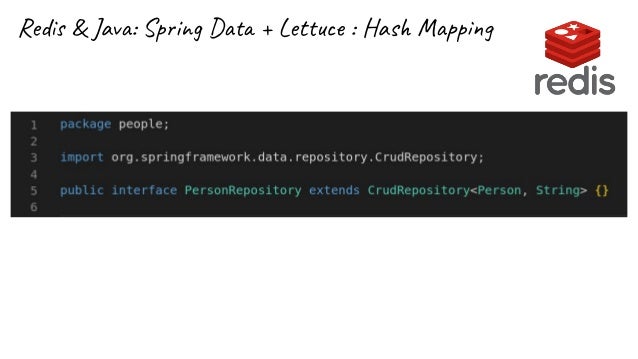

  57. 57. Redis & Java: Spring Data + Lettuce : Hash Mapping
  58. 58. Exercises Constraints You can code this exercises with Java, Scala or Clojure. You can use any framework you like. UI is not required. You need to run Cassandra 3.x and Redis 5.x (nativily, docker, does not matter). 1. Use cassandra and build Movie Catalog Service Where movies should have ID(UUID), name, category, length, linkToYouTubeTrailer. You should be able to query by category, name and ID. 2. Use Redis and Build a Twitter application where you should have tweet(message) and you should be able to follow people and people could follow you. 3. Build a profile Service using Cassandra, you should have a REST interface with the following data: ID(UUID), name, email, dateOfBirth, gender, twitterURL, faceURL. You need store the data in Cassandra and use Redis as a Cache. You need support the following operations: a. List all users by Id b. List all users by Email c. Add / Remove / Update users
  59. 59. Cassandra & Redis Diego Pacheco

×
