Introduction to Cassandra SlideShare Explore You Successfully reported this slideshow.Introduction to CassandraUpcoming SlideShareLoading in …5× 3 Comments 6 Likes Statistics Notes Nandlal Sarda , Professor at IIT Bombay, at Indian Institute of Technology, Bombay Michael (毕建华) Bi , Solution Architect APAC at Irdeto at Irdeto Gawi Jyu Bui Kiet , gfg at fgf at gfg Mary Ann Redd / CCNA / PARALEGAL , CCNA, CWMP, SAP, on the road to AWS Certifications Show More No DownloadsNo notes for slide 1. INTRODUCTION TOAPACHE CASSANDRAGökhan Atıl 2. GÖKHAN ATIL➤ Database Administrator➤ Oracle ACE Director (2016)

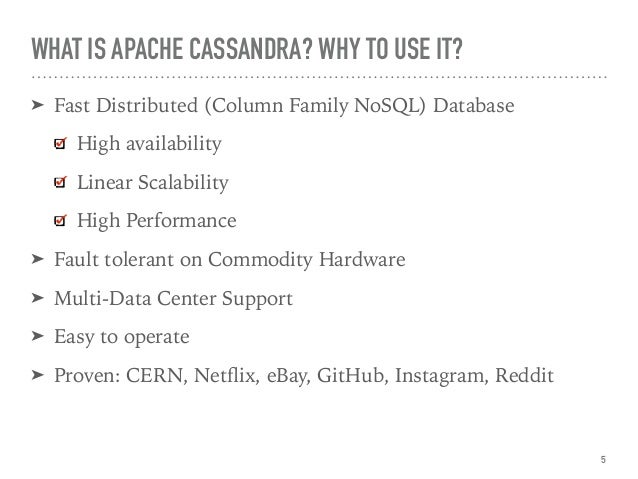

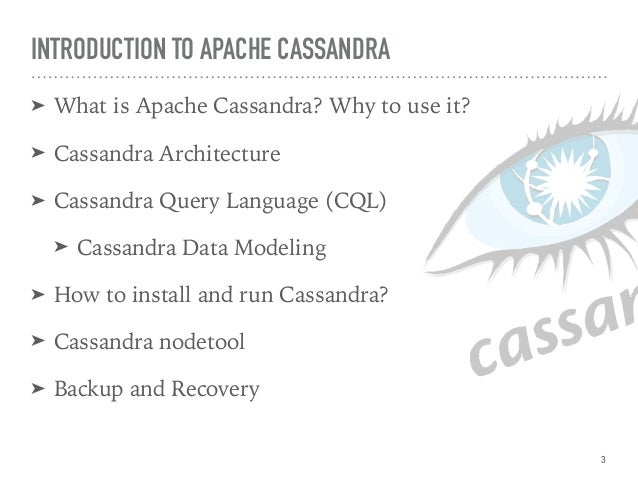

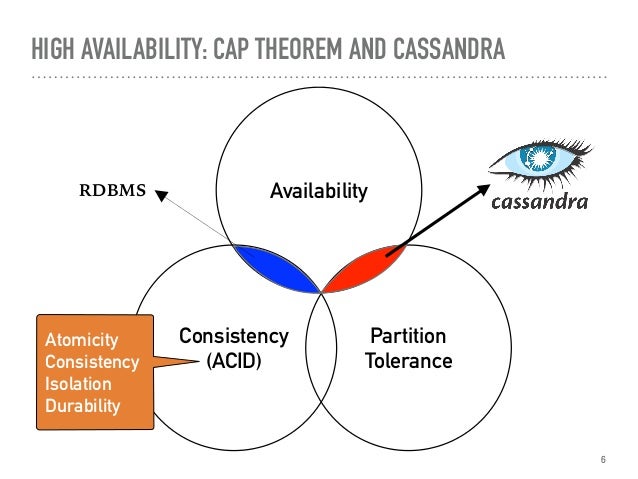

ACE (2011)➤ 10g/11g and R12 Oracle Certified Professional (OCP)➤ Co-author of Expert Oracle Enterprise Manager 12c➤ Founding Member and Vice President of TROUG➤ Blogger (since 2008) gokhanatil.com➤ Twitter: @gokhanatil2 3. INTRODUCTION TO APACHE CASSANDRA➤ What is Apache Cassandra? Why to use it?➤ Cassandra Architecture➤ Cassandra Query Language (CQL)➤ Cassandra Data Modeling➤ How to install and run Cassandra?➤ Cassandra nodetool➤ Backup and Recovery3 4. WHAT IS APACHE CASSANDRA? WHY TO USE IT?4 5. WHAT IS APACHE CASSANDRA? WHY TO USE IT?➤ Fast Distributed (Column Family NoSQL) DatabaseHigh availabilityLinear ScalabilityHigh Performance➤ Fault tolerant on Commodity Hardware➤ Multi-Data Center Support➤ Easy to operate➤ Proven: CERN, Netflix, eBay, GitHub, Instagram, Reddit5 6. HIGH AVAILABILITY: CAP THEOREM AND CASSANDRA6PartitionToleranceAvailabilityConsistency

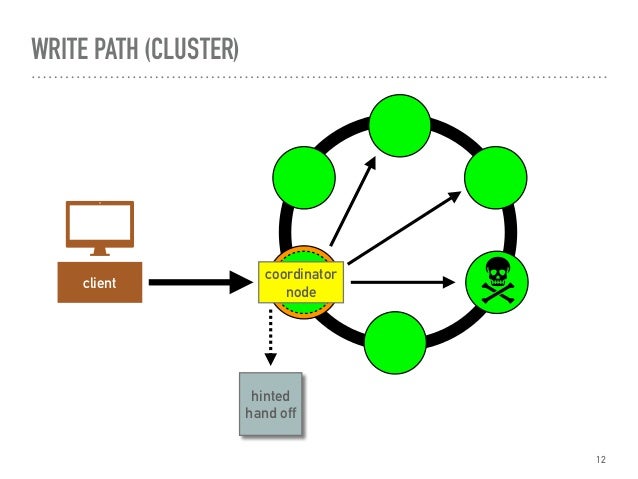

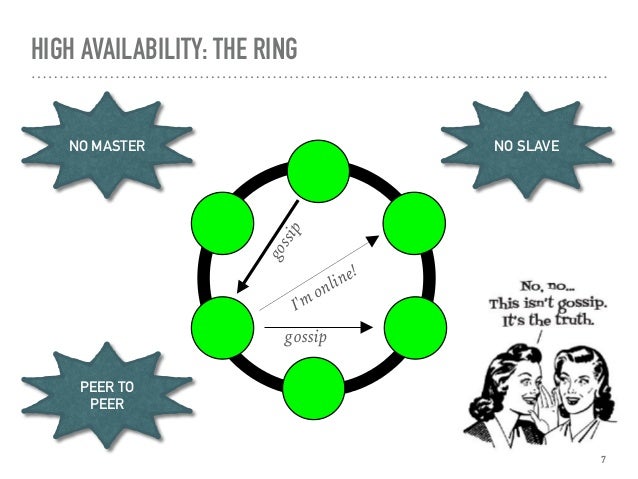

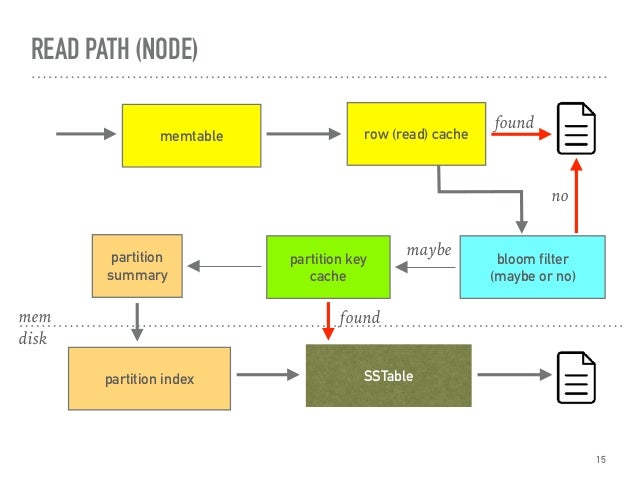

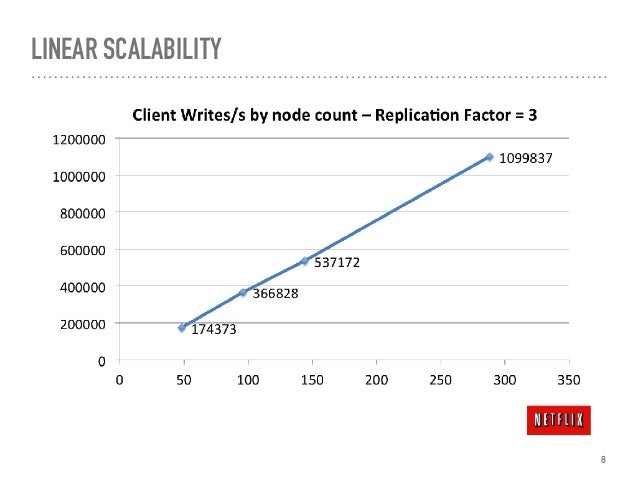

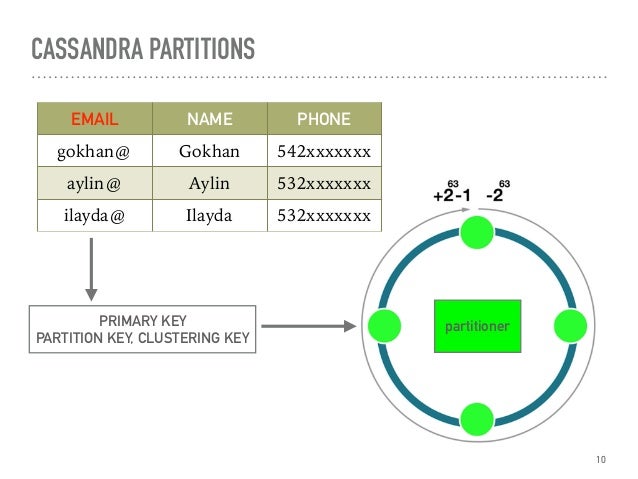

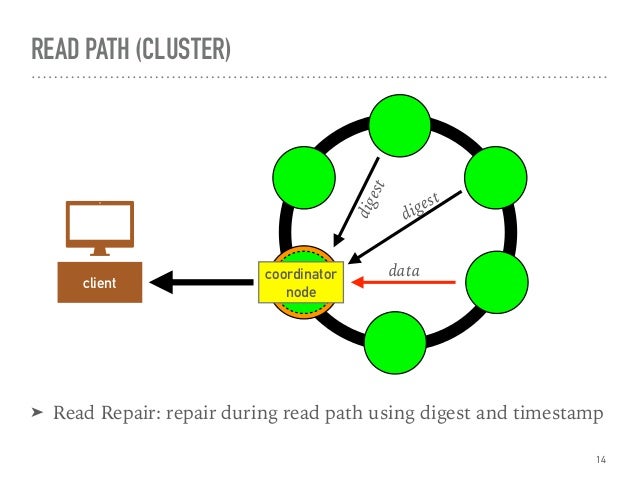

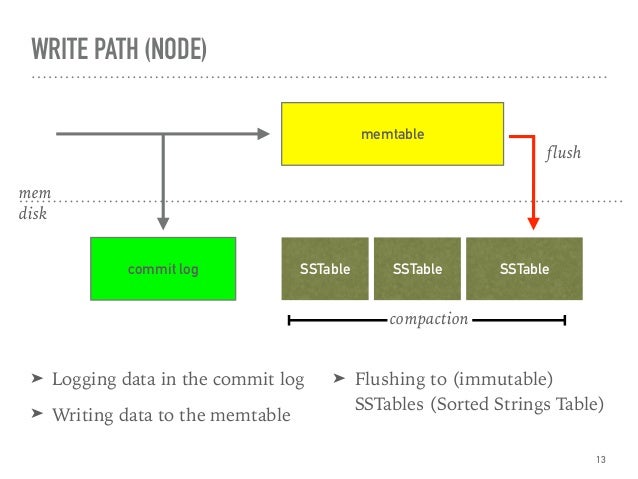

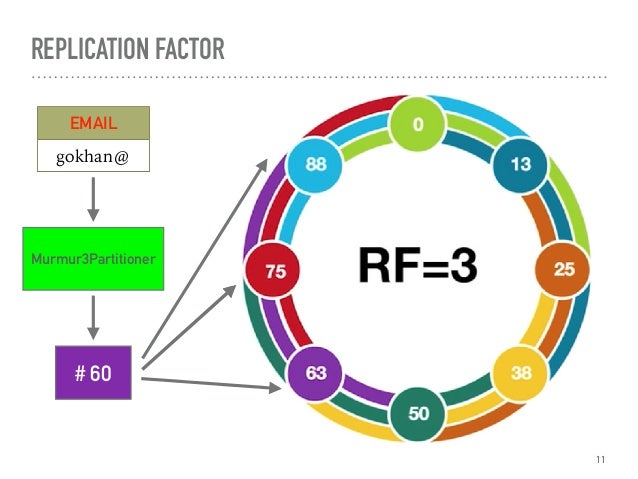

(ACID)RDBMSAtomicityConsistencyIsolationDurability 7. HIGH AVAILABILITY: THE RING7NO MASTER NO SLAVEPEER TOPEERgossipgossipI'm online! 8. LINEAR SCALABILITY8 9. CASSANDRA ARCHITECTURE9 10. CASSANDRA PARTITIONS10EMAIL NAME PHONEgokhan@ Gokhan 542xxxxxxxaylin@ Aylin 532xxxxxxxilayda@ Ilayda 532xxxxxxxpartitionerPRIMARY KEYPARTITION KEY, CLUSTERING KEY 11. REPLICATION FACTOR11EMAILgokhan@Murmur3Partitioner# 60 12. WRITE PATH (CLUSTER)12coordinatornodeclienthintedhand off 13. WRITE PATH (NODE)➤ Logging data in the commit log➤ Writing data to the memtable➤ Flushing to (immutable)SSTables (Sorted Strings Table)13memtablecommit log SSTable SSTable SSTablediskmemflushcompaction 14. READ PATH (CLUSTER)14coordinatornodeclient➤ Read Repair: repair during read path using digest and timestampdatadigestdigest 15. READ PATH (NODE)15memtable row (read) cachebloom filter

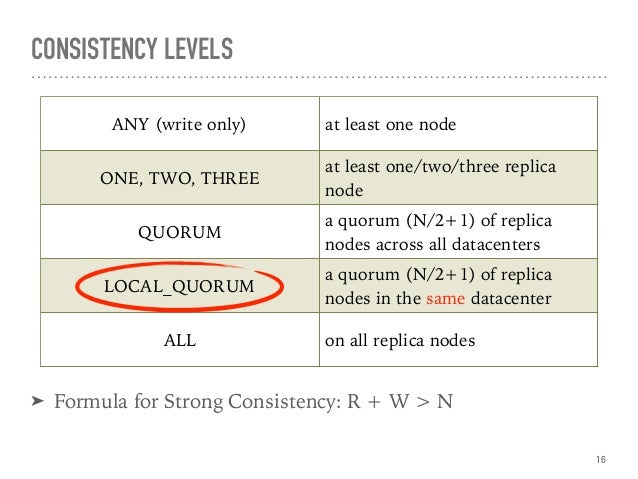

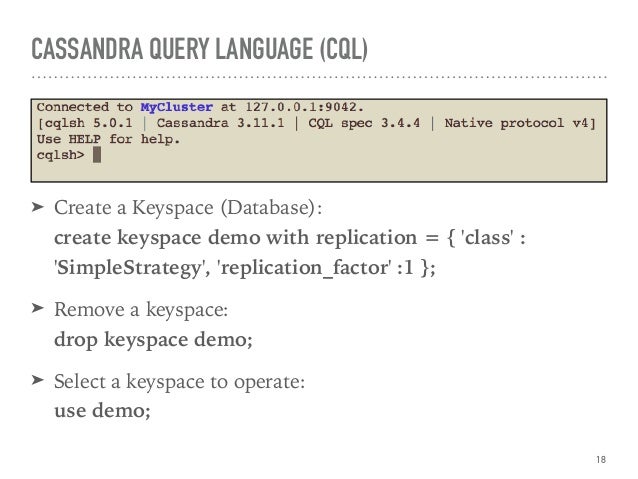

(maybe or no)partition keycachepartitionsummarypartition index SSTablefoundmaybefoundnodiskmem 16. CONSISTENCY LEVELS➤ Formula for Strong Consistency: R + W > N16ANY (write only) at least one nodeONE, TWO, THREEat least one/two/three replicanodeQUORUMa quorum (N/2+1) of replicanodes across all datacentersLOCAL_QUORUMa quorum (N/2+1) of replicanodes in the same datacenterALL on all replica nodes 17. CASSANDRA QUERY LANGUAGE (CQL)17 18. CASSANDRA QUERY LANGUAGE (CQL)➤ Create a Keyspace (Database):
create keyspace demo with replication = { 'class' :'SimpleStrategy', 'replication_factor' :1 };➤ Remove a keyspace:
drop keyspace demo;➤ Select a keyspace to operate:
use demo;18 19. CASSANDRA QUERY LANGUAGE (CQL)➤ Create a table:

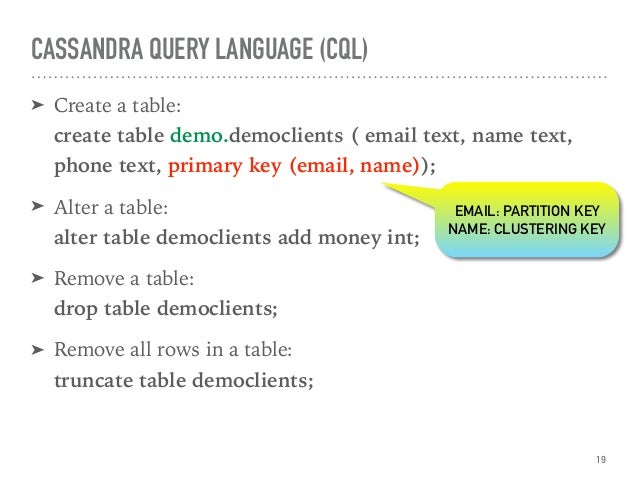

create table demo.democlients ( email text, name text,phone text, primary key (email, name));➤ Alter a table:
alter table democlients add money int;➤ Remove a table:
drop table democlients;➤ Remove all rows in a table:

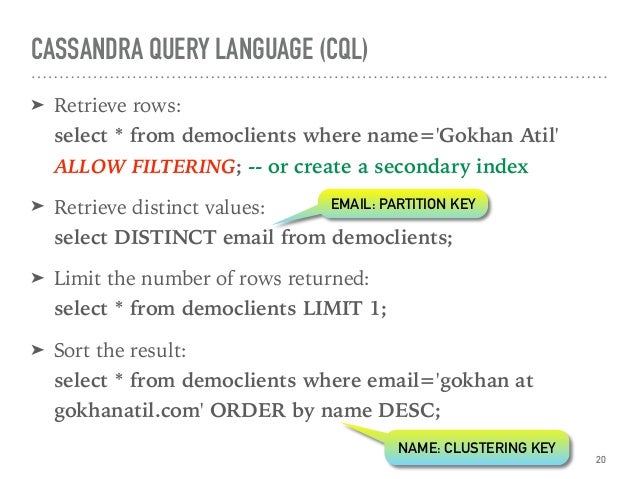

truncate table democlients;19EMAIL: PARTITION KEYNAME: CLUSTERING KEY 20. CASSANDRA QUERY LANGUAGE (CQL)➤ Retrieve rows:
select * from democlients where name='Gokhan Atil'ALLOW FILTERING; -- or create a secondary index➤ Retrieve distinct values:
select DISTINCT email from democlients;➤ Limit the number of rows returned:
select * from democlients LIMIT 1;➤ Sort the result:
select * from democlients where email='gokhan atgokhanatil.com' ORDER by name DESC;20NAME: CLUSTERING KEYEMAIL: PARTITION KEY 21. CASSANDRA QUERY LANGUAGE (CQL)➤ Retrieve the results in the JSON format:

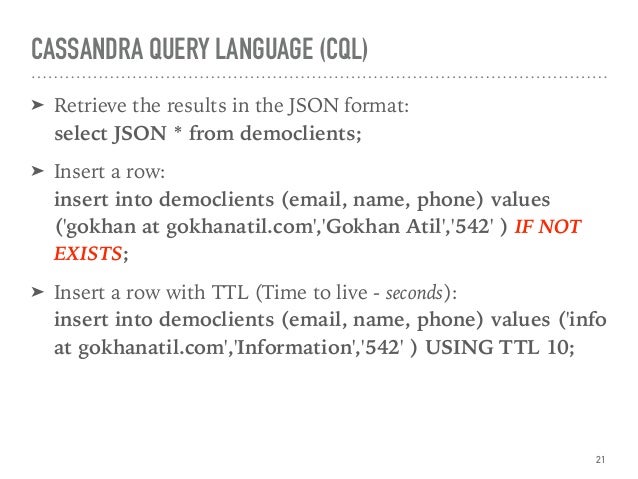

select JSON * from democlients;➤ Insert a row:
insert into democlients (email, name, phone) values('gokhan at gokhanatil.com','Gokhan Atil','542' ) IF NOTEXISTS;➤ Insert a row with TTL (Time to live - seconds):
insert into democlients (email, name, phone) values ('infoat gokhanatil.com','Information','542' ) USING TTL 10;21 22. CASSANDRA QUERY LANGUAGE (CQL)➤ Update records:

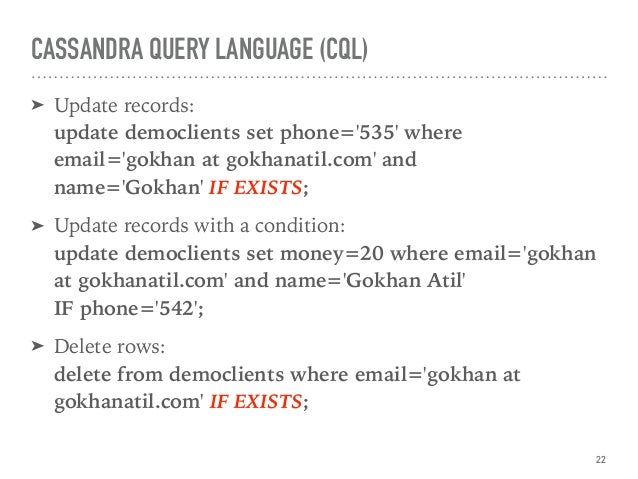

update democlients set phone='535' whereemail='gokhan at gokhanatil.com' and
name='Gokhan' IF EXISTS;➤ Update records with a condition:
update democlients set money=20 where email='gokhanat gokhanatil.com' and name='Gokhan Atil'
IF phone='542';➤ Delete rows:
delete from democlients where email='gokhan atgokhanatil.com' IF EXISTS;22 23. CASSANDRA QUERY LANGUAGE (CQL)➤ Delete row with a condition:
delete from democlients where email='gokhan atgokhanatil.com' and name='Gokhan Atil' IF money > 10;➤ Delete columns in a row:

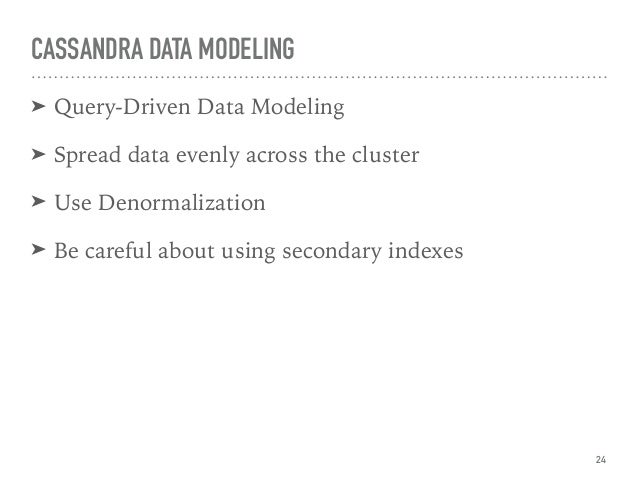

delete money from democlients where email='gokhan atgokhanatil.com' and name='Gokhan Atil';23 24. CASSANDRA DATA MODELING➤ Query-Driven Data Modeling➤ Spread data evenly across the cluster➤ Use Denormalization➤ Be careful about using secondary indexes24 25. HOW TO INSTALL AND RUN CASSANDRA?25 26. HOW TO INSTALL AND RUN CASSANDRA CLUSTER?➤ Make sure you have JDK (8u40 or newer) installed➤ Download apache-cassandra-VERSION-bin.tar.gz➤ Extract the file to a folder➤ Make data and logs directories in cassandra folder➤ Run bin/cassandra➤ Edit the configuration file (conf/cassandra.yaml)➤ Give a name to cluster, change listening address, data and logsdirectory locations, enable authentication and authorization.26 27. HOW TO INSTALL AND RUN CASSANDRA CLUSTER?➤ User docker to pull the latest image:
docker pull cassandra➤ Run it as standalone:
docker run --name cas1 -p 9042:9042 -eCASSANDRA_CLUSTER_NAME=MyCluster -d cassandra➤ Connect using clqsh:
docker exec -it cas1 cqlsh➤ Run nodetool (i.e for check status):

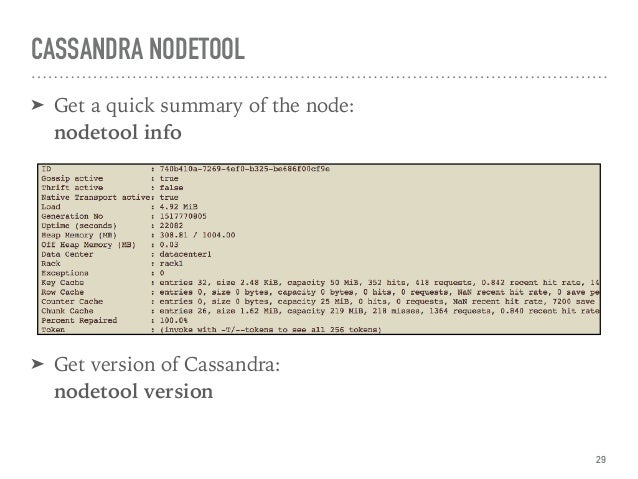

docker exec -it cas1 nodetool status27 28. CASSANDRA NODETOOL28 29. CASSANDRA NODETOOL➤ Get a quick summary of the node:
nodetool info➤ Get version of Cassandra:
nodetool version29 30. CASSANDRA NODETOOL➤ Get status of the cluster/keyspace:

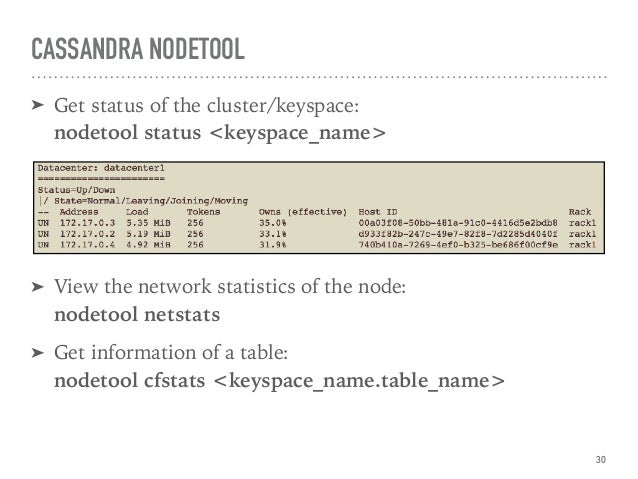

nodetool status <keyspace_name>➤ View the network statistics of the node:
nodetool netstats➤ Get information of a table:
nodetool cfstats <keyspace_name.table_name>30 31. CASSANDRA NODETOOL➤ Repair a node (you can run it weekly on non-peak hours):

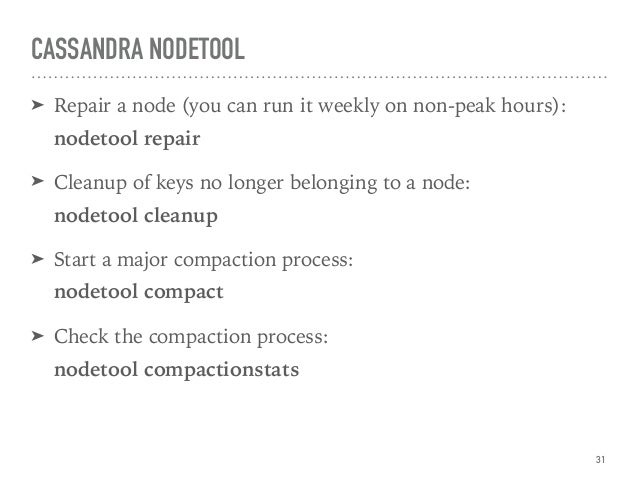

nodetool repair➤ Cleanup of keys no longer belonging to a node:
nodetool cleanup➤ Start a major compaction process:
nodetool compact➤ Check the compaction process:
nodetool compactionstats31 32. CASSANDRA NODETOOL➤ Decommission a node (to prepare to remove it):

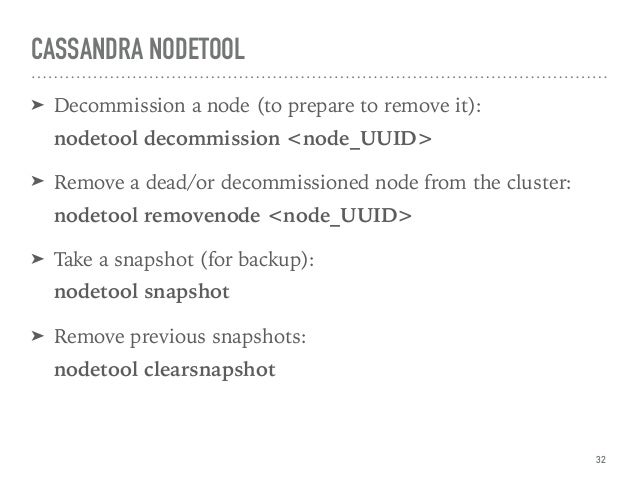

nodetool decommission <node_UUID>➤ Remove a dead/or decommissioned node from the cluster:
nodetool removenode <node_UUID>➤ Take a snapshot (for backup):
nodetool snapshot➤ Remove previous snapshots:

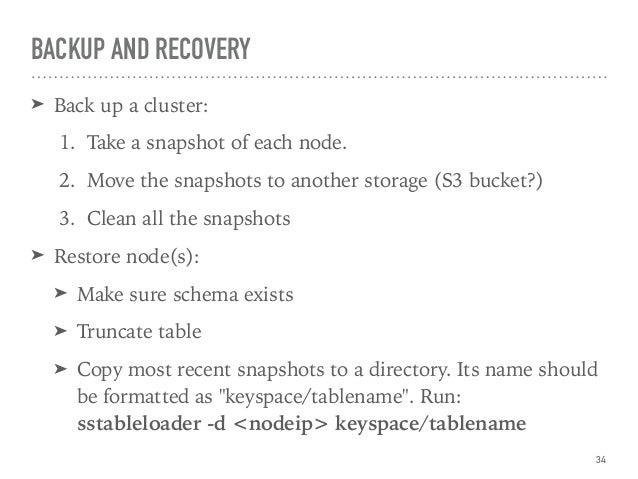

nodetool clearsnapshot32 33. BACKUP AND RECOVERY33 34. BACKUP AND RECOVERY➤ Back up a cluster:1. Take a snapshot of each node.2. Move the snapshots to another storage (S3 bucket?)3. Clean all the snapshots➤ Restore node(s):➤ Make sure schema exists➤ Truncate table➤ Copy most recent snapshots to a directory. Its name shouldbe formatted as "keyspace/tablename". Run:
sstableloader -d <nodeip> keyspace/tablename34 35. BUILD A BACKUP NODE➤ Use multi-DC replication:

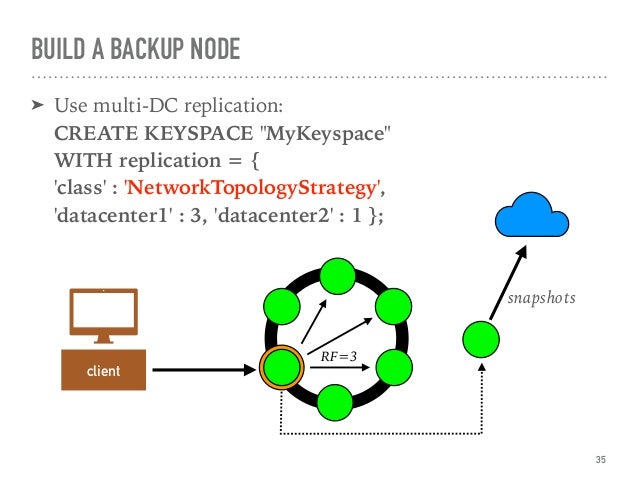

CREATE KEYSPACE "MyKeyspace"
