Streaming Analytics with Spark, Kafka, Cassandra and Akka

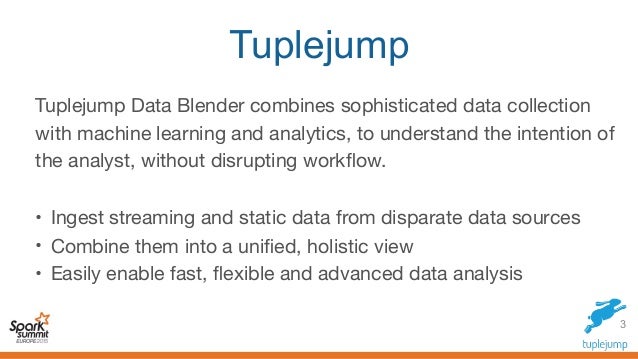

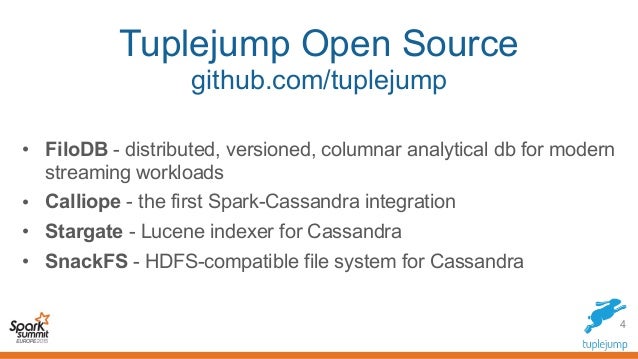

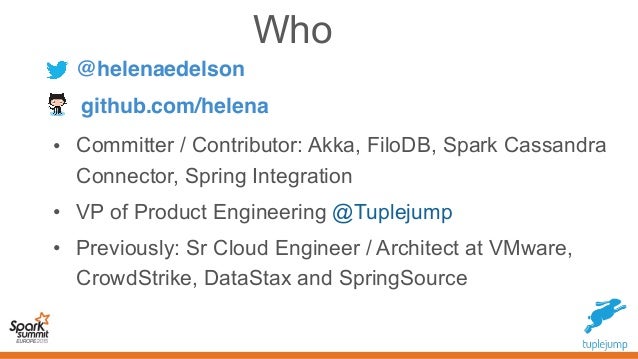

Streaming Analytics with Spark, Kafka, Cassandra and Akka SlideShare Explore You Successfully reported this slideshow.Streaming Analytics with Spark, Kafka, Cassandra and AkkaUpcoming SlideShareLoading in …5× 3 Comments 80 Likes Statistics Notes ffch1996 Jasonmao5 Raphaël Bacconnier , Backend Developer at Backend / big data developer Jhanak Parajuli , Data Scientist and AI Engineer at msg at Data Scientist and AI Engineer Raja Rp at Infosys Show More No DownloadsNo notes for slide 1. Streaming Analytics with Spark,Kafka, Cassandra, and AkkaHelena EdelsonVP of Product Engineering @Tuplejump 2. • Committer / Contributor: Akka, FiloDB, Spark CassandraConnector, Spring Integration• VP of Product Engineering @Tuplejump• Previously: Sr Cloud Engineer / Architect at VMware,CrowdStrike, DataStax and SpringSourceWho@helenaedelsongithub.com/helena 3. TuplejumpTuplejump Data Blender combines sophisticated data collectionwith machine learning and analytics, to understand the intention ofthe analyst, without disrupting workflow.• Ingest streaming and static data from disparate data sources• Combine them into a unified, holistic view • Easily enable fast, flexible and advanced data analysis3 4. Tuplejump Open Sourcegithub.com/tuplejump• FiloDB - distributed, versioned, columnar analytical db for modernstreaming workloads• Calliope - the first Spark-Cassandra integration• Stargate - Lucene indexer for Cassandra• SnackFS - HDFS-compatible file system for Cassandra4 5. What Will We Talk About• The Problem Domain• Example Use Case• Rethinking Architecture– We don't have to look far to look back– Streaming– Revisiting the goal and the stack– Simplification 6. THE PROBLEM DOMAINDelivering Meaning From A Flood Of Data6 7. The Problem DomainNeed to build scalable, fault tolerant, distributed dataprocessing systems that can handle massive amounts ofdata from disparate sources, with different data structures.7 8. TranslationHow to build adaptable, elegant systemsfor complex analytics and learning tasksto run as large-scale clustered dataflows8 9. How Much DataYottabyte = quadrillion gigabytes or septillionbytes9We all have a lot of data• Terabytes• Petabytes...https://en.wikipedia.org/wiki/Yottabyte 10. Delivering Meaning• Deliver meaning in sec/sub-sec latency• Disparate data sources & schemas• Billions of events per second• High-latency batch processing• Low-latency stream processing• Aggregation of historical from the stream 11. While We Monitor, Predict & Proactively Handle• Massive event spikes• Bursty traffic• Fast producers / slow consumers• Network partitioning & Out of sync systems• DC down• Wait, we've DDOS'd ourselves from fast streams?• Autoscale issues– When we scale down VMs how do we not lose data? 12. And stay within ourAWS / Rackspace budget 13. EXAMPLE CASE:CYBER SECURITYHunting The Hunter13 14. 14• Track activities of international threat actor groups,nation-state, criminal or hactivist• Intrusion attempts• Actual breaches• Profile adversary activity• Analysis to understand their motives, anticipate actionsand prevent damageAdversary Profiling & Hunting 15. 15• Machine events• Endpoint intrusion detection• Anomalies/indicators of attack or compromise• Machine learning• Training models based on patterns from historical data• Predict potential threats• profiling for adversary Identification•Stream Processing 16. Data Requirements & Description• Streaming event data• Log messages• User activity records• System ops & metrics data• Disparate data sources• Wildly differing data structures16 17. Massive Amounts Of Data17• One machine can generate 2+ TB per day• Tracking millions of devices• 1 million writes per second - bursty• High % writes, lower % reads• TTL 18. RETHINKINGARCHITECTURE18 19. WE DON'T HAVE TO LOOKFAR TO LOOK BACK19Rethinking Architecture 20. 20Most batch analytics flow fromseveral years ago looked like... 21. STREAMING & DATA SCIENCE21Rethinking Architecture 22. StreamingI need fast access to historical data on the fly forpredictive modeling with real time data from the stream.22 23. Not A Stream, A Flood• Data emitters• Netflix: 1 - 2 million events per second at peak• 750 billion events per day• LinkedIn: > 500 billion events per day• Data ingesters• Netflix: 50 - 100 billion events per day• LinkedIn: 2.5 trillion events per day• 1 Petabyte of streaming data23 24. Which Translates To• Do it fast• Do it cheap• Do it at scale24 25. Challenges• Code changes at runtime• Distributed Data Consistency• Ordering guarantees• Complex compute algorithms25 26. Oh, and don't lose data26 27. Strategies• Partition For Scale & Data Locality• Replicate For Resiliency• Share Nothing• Fault Tolerance• Asynchrony• Async Message Passing• Memory Management27• Data lineage and reprocessing inruntime• Parallelism• Elastically Scale• Isolation• Location Transparency 28. AND THEN WE GREEKED OUT28Rethinking Architecture 29. Lambda ArchitectureA data-processing architecture designed to handle massivequantities of data by taking advantage of both batch andstream processing methods.29 30. Lambda ArchitectureA data-processing architecture designed to handle massivequantities of data by taking advantage of both batch andstream processing methods.• An approach• Coined by Nathan Marz• This was a huge stride forward30 31. 31https://www.mapr.com/developercentral/lambda-architecture 32. Implementing Is Hard33• Real-time pipeline backed by KV store for updates• Many moving parts - KV store, real time, batch• Running similar code in two places• Still ingesting data to Parquet/HDFS• Reconcile queries against two different places 33. Performance Tuning & Monitoring:on so many systems34Also hard 34. Lambda ArchitectureAn immutable sequence of records is captured and fedinto a batch system and a stream processingsystem in parallel.35 35. WAIT, DUAL SYSTEMS?36Challenge Assumptions 36. Which Translates To• Performing analytical computations & queries in dualsystems• Implementing transformation logic twice• Duplicate Code• Spaghetti Architecture for Data Flows• One Busy Network37 37. Why Dual Systems?• Why is a separate batch system needed?• Why support code, machines and running services oftwo analytics systems?38Counter productive on some level? 38. YES39• A unified system for streaming and batch• Real-time processing and reprocessing• Code changes• Fault tolerancehttp://radar.oreilly.com/2014/07/questioning-the-lambda-architecture.html - Jay Kreps 39. ANOTHER ASSUMPTION:ETL40Challenge Assumptions 40. Extract, Transform, Load (ETL)41"Designing and maintaining the ETL process is oftenconsidered one of the most difficult and resource-intensive portions of a data warehouse project."http://docs.oracle.com/cd/B19306_01/server.102/b14223/ettover.htm 41. Extract, Transform, Load (ETL)42ETL involves• Extraction of data from one system into another• Transforming it• Loading it into another system 42. Extract, Transform, Load (ETL)"Designing and maintaining the ETL process is oftenconsidered one of the most difficult and resource-intensive portions of a data warehouse project."http://docs.oracle.com/cd/B19306_01/server.102/b14223/ettover.htm43Also unnecessarily redundant and often typeless 43. ETL44• Each ETL step can introduce errors and risk• Can duplicate data after failover• Tools can cost millions of dollars• Decreases throughput• Increased complexity 44. ETL• Writing intermediary files• Parsing and re-parsing plain text45 45. And let's duplicate the patternover all our DataCenters46 46. 47These are not the solutions you're looking for 47. REVISITING THE GOAL& THE STACK48 48. Removing The 'E' in ETLThanks to technologies like Avro and Protobuf we don’t need the“E” in ETL. Instead of text dumps that you need to parse overmultiple systems:Scala & Avro (e.g.)• Can work with binary data that remains strongly typed• A return to strong typing in the big data ecosystem49 49. Removing The 'L' in ETLIf data collection is backed by a distributed messagingsystem (e.g. Kafka) you can do real-time fanout of theingested data to all consumers. No need to batch "load".• From there each consumer can do their own transformations50 50. #NoMoreGreekLetterArchitectures51 51. NoETL52 52. Strategy TechnologiesScalable Infrastructure / Elastic Spark, Cassandra, KafkaPartition For Scale, Network Topology Aware Cassandra, Spark, Kafka, Akka ClusterReplicate For Resiliency Spark,Cassandra, Akka Cluster all hash the node ringShare Nothing, Masterless Cassandra, Akka Cluster both Dynamo styleFault Tolerance / No Single Point of Failure Spark, Cassandra, KafkaReplay From Any Point Of Failure Spark, Cassandra, Kafka, Akka + Akka PersistenceFailure Detection Cassandra, Spark, Akka, KafkaConsensus & Gossip Cassandra & Akka ClusterParallelism Spark, Cassandra, Kafka, AkkaAsynchronous Data Passing Kafka, Akka, SparkFast, Low Latency, Data Locality Cassandra, Spark, KafkaLocation Transparency Akka, Spark, Cassandra, KafkaMy Nerdy Chart53 53. SMACK• Scala/Spark• Mesos• Akka• Cassandra• Kafka54 54. Spark Streaming55 55. Spark Streaming• One runtime for streaming and batch processing• Join streaming and static data sets• No code duplication• Easy, flexible data ingestion from disparate sources todisparate sinks• Easy to reconcile queries against multiple sources• Easy integration of KV durable storage56 56. How do I merge historical data with datain the stream?57 57. Join Streams With Static Dataval ssc = new StreamingContext(conf, Milliseconds(500))ssc.checkpoint("checkpoint")val staticData: RDD[(Int,String)] =ssc.sparkContext.textFile("whyAreWeParsingFiles.txt").flatMap(func)val stream: DStream[(Int,String)] =KafkaUtils.createStream(ssc, zkQuorum, group, Map(topic -> n)).transform { events => events.join(staticData)).saveToCassandra(keyspace,table)ssc.start()58 58. TrainingDataFeatureExtractionModelTrainingModelTestingTest DataYour Data Extract Data To AnalyzeTrain your model to predictSpark MLLib59 59. Spark Streaming & ML60val context = new StreamingContext(conf, Milliseconds(500))val model = KMeans.train(dataset, ...) // learn offlineval stream = KafkaUtils.createStream(ssc, zkQuorum, group,..).map(event => model.predict(event.feature)) 60. Apache MesosOpen-source cluster manager developed at UC Berkeley.Abstracts CPU, memory, storage, and other compute resourcesaway from machines (physical or virtual), enabling fault-tolerantand elastic distributed systems to easily be built and runeffectively.61 61. AkkaHigh performance concurrency framework for Scala andJava• Fault Tolerance• Asynchronous messaging and data processing• Parallelization• Location Transparency• Local / Remote Routing• Akka: Cluster / Persistence / Streams62 62. Akka ActorsA distribution and concurrency abstraction• Compute Isolation• Behavioral Context Switching• No Exposed Internal State• Event-based messaging• Easy parallelism• Configurable fault tolerance63 63. 64Akka Actor Hierarchyhttp://www.slideshare.net/jboner/building-reactive-applications-with-akka-in-scala 64. import akka.actor._class NodeGuardianActor(args...) extends Actor with SupervisorStrategy {val temperature = context.actorOf(Props(new TemperatureActor(args)), "temperature")val precipitation = context.actorOf(Props(new PrecipitationActor(args)), "precipitation")override def preStart(): Unit = { /* lifecycle hook: init */ }def receive : Actor.Receive = {case Initialized => context become initialized}def initialized : Actor.Receive = {case e: SomeEvent => someFunc(e)case e: OtherEvent => otherFunc(e)}}65 65. Apache Cassandra• Extremely Fast• Extremely Scalable• Multi-Region / Multi-Datacenter• Always On• No single point of failure• Survive regional outages• Easy to operate• Automatic & configurable replication 66 66. Apache Cassandra• Very flexible data modeling (collections, user definedtypes) and changeable over time• Perfect for ingestion of real time / machine data• Huge community67 67. Spark Cassandra Connector• NOSQL JOINS!• Write & Read data between Spark and Cassandra• Compatible with Spark 1.4• Handles Data Locality for Speed• Implicit type conversions• Server-Side Filtering - SELECT, WHERE, etc.• Natural Timeseries Integration68http://github.com/datastax/spark-cassandra-connector 68. KillrWeather69http://github.com/killrweather/killrweatherA reference application showing how to easily integrate streaming andbatch data processing with Apache Spark Streaming, ApacheCassandra, Apache Kafka and Akka for fast, streaming computationson time series data in asynchronous event-driven environments.http://github.com/databricks/reference-apps/tree/master/timeseries/scala/timeseries-weather/src/main/scala/com/databricks/apps/weather 69. 70• High Throughput Distributed Messaging• Decouples Data Pipelines• Handles Massive Data Load• Support Massive Number of Consumers• Distribution & partitioning across cluster nodes• Automatic recovery from broker failures 70. Spark Streaming & Kafkaval context = new StreamingContext(conf, Seconds(1))val wordCount = KafkaUtils.createStream(context, ...).flatMap(_.split(" ")).map(x => (x, 1)).reduceByKey(_ + _)wordCount.saveToCassandra(ks,table)context.start() // start receiving and computing71 71. 72class KafkaStreamingActor(params: Map[String, String], ssc: StreamingContext)extends AggregationActor(settings: Settings) {

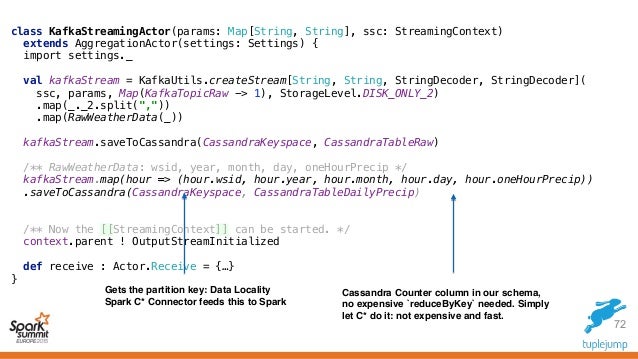

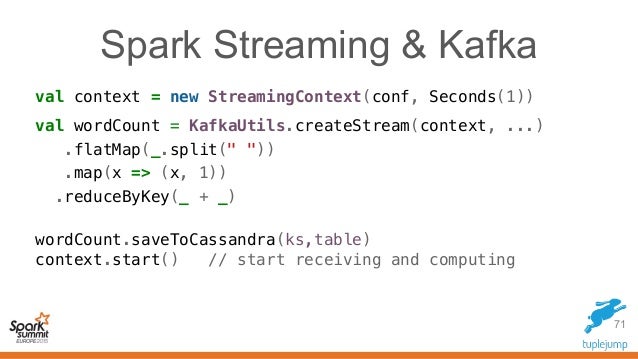

import settings._
val kafkaStream = KafkaUtils.createStream[String, String, StringDecoder, StringDecoder](
ssc, params, Map(KafkaTopicRaw -> 1), StorageLevel.DISK_ONLY_2)
.map(_._2.split(","))
.map(RawWeatherData(_))

kafkaStream.saveToCassandra(CassandraKeyspace, CassandraTableRaw)
/** RawWeatherData: wsid, year, month, day, oneHourPrecip */
kafkaStream.map(hour => (hour.wsid, hour.year, hour.month, hour.day, hour.oneHourPrecip))
.saveToCassandra(CassandraKeyspace, CassandraTableDailyPrecip)

/** Now the [[StreamingContext]] can be started. */
context.parent ! OutputStreamInitialized

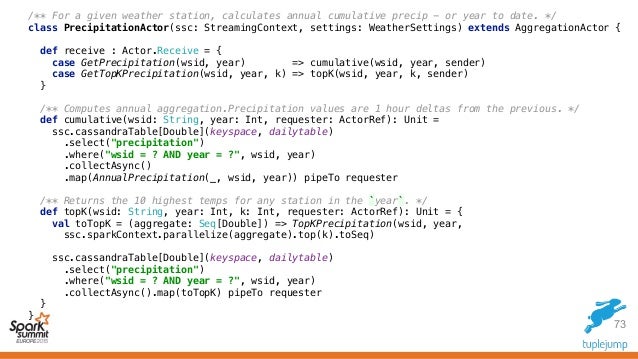

def receive : Actor.Receive = {…}}Gets the partition key: Data LocalitySpark C* Connector feeds this to SparkCassandra Counter column in our schema,no expensive `reduceByKey` needed. Simplylet C* do it: not expensive and fast. 72. 73/** For a given weather station, calculates annual cumulative precip - or year to date. */
class PrecipitationActor(ssc: StreamingContext, settings: WeatherSettings) extends AggregationActor {

def receive : Actor.Receive = {
case GetPrecipitation(wsid, year) => cumulative(wsid, year, sender)
case GetTopKPrecipitation(wsid, year, k) => topK(wsid, year, k, sender)
}

/** Computes annual aggregation.Precipitation values are 1 hour deltas from the previous. */
def cumulative(wsid: String, year: Int, requester: ActorRef): Unit =
ssc.cassandraTable[Double](keyspace, dailytable)
.select("precipitation")
.where("wsid = ? AND year = ?", wsid, year)
.collectAsync()
.map(AnnualPrecipitation(_, wsid, year)) pipeTo requester

/** Returns the 10 highest temps for any station in the `year`. */
def topK(wsid: String, year: Int, k: Int, requester: ActorRef): Unit = {
val toTopK = (aggregate: Seq[Double]) => TopKPrecipitation(wsid, year,
ssc.sparkContext.parallelize(aggregate).top(k).toSeq)

ssc.cassandraTable[Double](keyspace, dailytable)
.select("precipitation")
.where("wsid = ? AND year = ?", wsid, year)
.collectAsync().map(toTopK) pipeTo requester
}

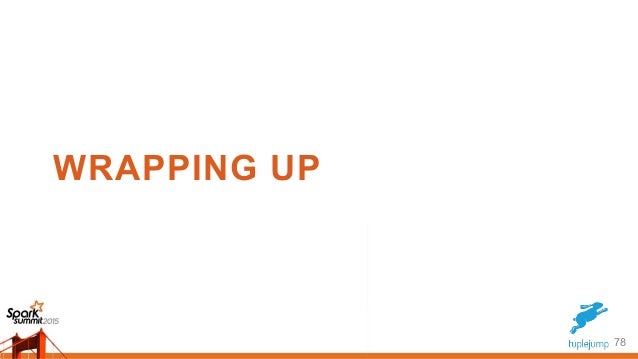

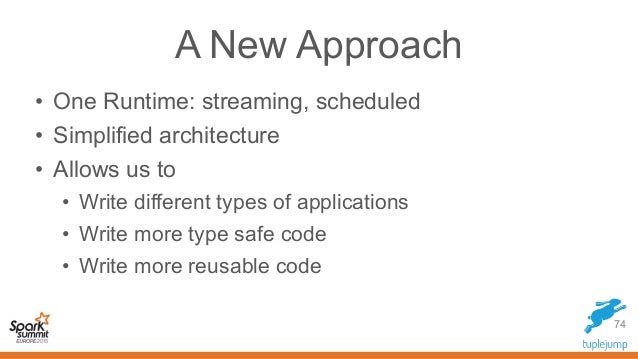

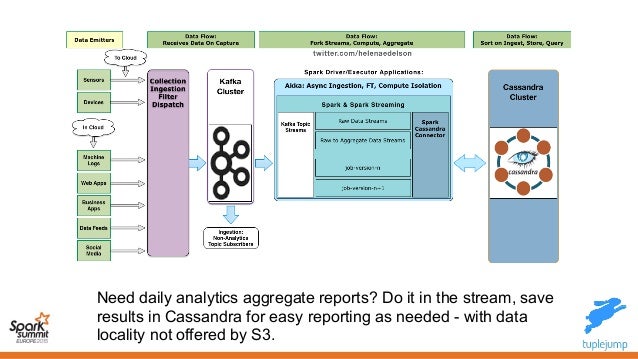

} 73. A New Approach• One Runtime: streaming, scheduled• Simplified architecture• Allows us to• Write different types of applications• Write more type safe code• Write more reusable code74 74. Need daily analytics aggregate reports? Do it in the stream, saveresults in Cassandra for easy reporting as needed - with datalocality not offered by S3. 75. FiloDBDistributed, columnar database designed to run very fastanalytical queries• Ingest streaming data from many streaming sources• Row-level, column-level operations and built in versioningoffer greater flexibility than file-based technologies• Currently based on Apache Cassandra & Spark• github.com/tuplejump/FiloDB76 76. FiloDB• Breakthrough performance levels for analytical queries• Performance comparable to Parquet• One to two orders of magnitude faster than Spark onCassandra 2.x• Versioned - critical for reprocessing logic/code changes• Can simplify your infrastructure dramatically• Queries run in parallel in Spark for scale-out ad-hoc analysis• Space-saving techniques77 77. WRAPPING UP78 78. Architectyr?79"This is a giant mess"- Going Real-time - Data Collection and Stream Processing with Apache Kafka, Jay Kreps 79. 80Simplified 80. 81 81. 82www.tuplejump.cominfo@tuplejump.com@tuplejump 82. 83@helenaedelsongithub.com/helenaslideshare.net/helenaedelsonTHANK YOU! 83. I'm speaking at QCon SF on the broadertopic of Streaming at Scalehttp://qconsf.com/sf2015/track/streaming-data-scale84 Recommended Bruce Heavin The Thinkable PresentationOnline Course - LinkedIn Learning Gaining Skills with LinkedIn LearningOnline Course - LinkedIn Learning PowerPoint: Designing Better SlidesOnline Course - LinkedIn Learning Reactive app using actor model & apache sparkRahul Kumar Real-Time Anomaly Detection with Spark MLlib, Akka and CassandraNatalino Busa Sa introduction to big data pipelining with cassandra & spark west mins...Simon Ambridge Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, ScalaHelena Edelson Streaming Big Data with Spark, Kafka, Cassandra, Akka & Scala (from webinar)Helena Edelson Spark Kernel Talk - Apache Spark Meetup San Francisco (July 2015)Robert "Chip" Senkbeil How to deploy Apache Spark
