Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
@helenaedelson
Helena Edelson
Lambda Architecture with Spark
Streaming, Kafka, Cassandra, Akka, Scala
1

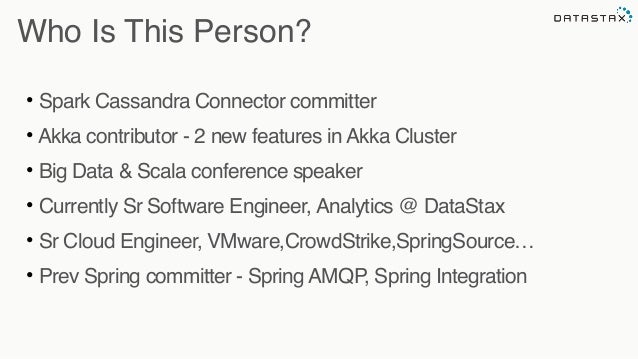

• Spark Cassandra Connector committer
• Akka contributor - 2 new features in Akka Cluster
• Big Data & Scala conference sp...

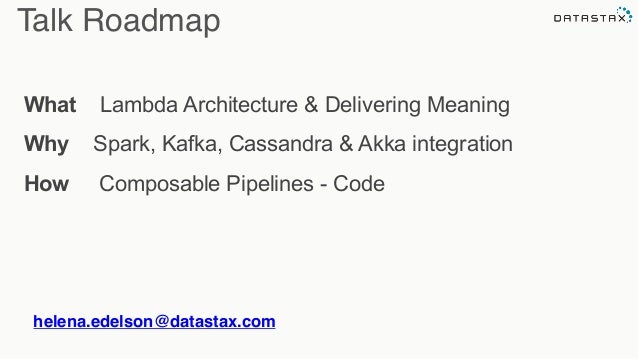

Talk Roadmap
What Lambda Architecture & Delivering Meaning
Why Spark, Kafka, Cassandra & Akka integration
How Composable P...
I need fast access
to historical data
on the fly for
predictive modeling
with real time data
from the stream

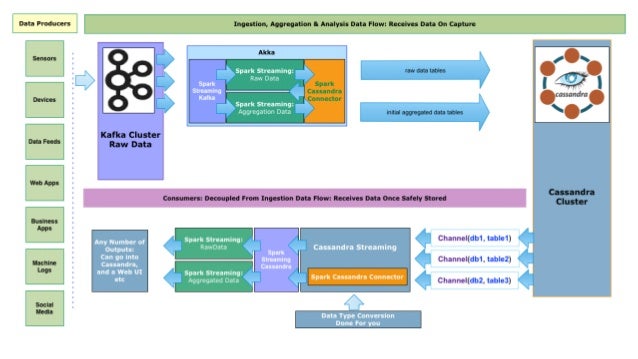

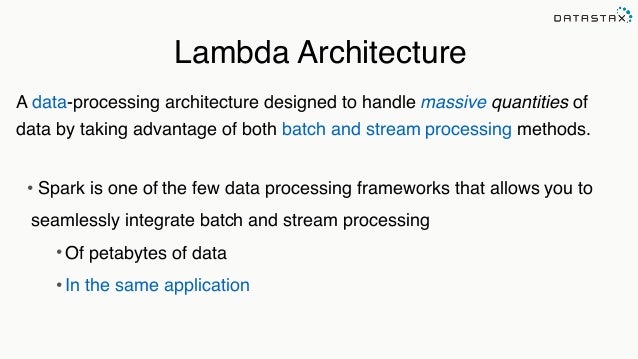

Lambda Architecture
A data-processing architecture designed to handle massive quantities of
data by taking advantage of bo...

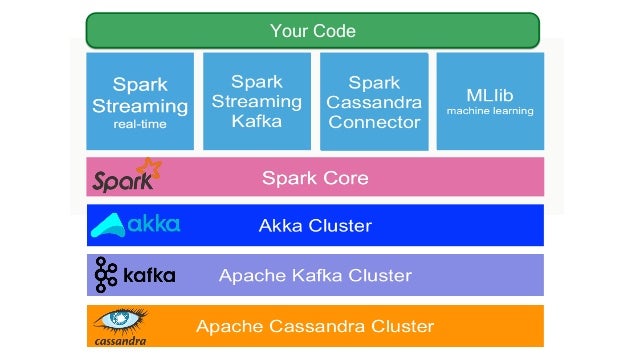

Your Code
Moving Data Between Systems Is
Difficult Risky and Expensive
9
@helenaedelson
How Do We Approach This?

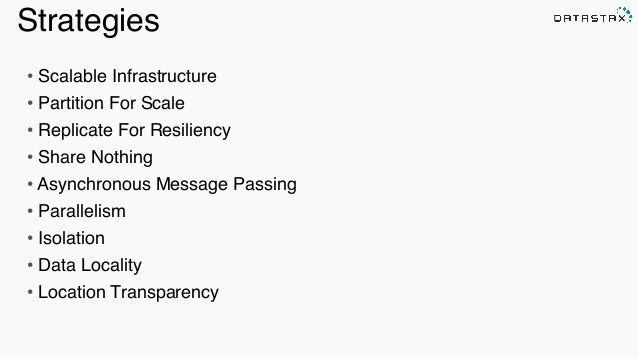

Strategies
• Scalable Infrastructure
• Partition For Scale
• Replicate For Resiliency
• Share Nothing
• Asynchronous Messa...

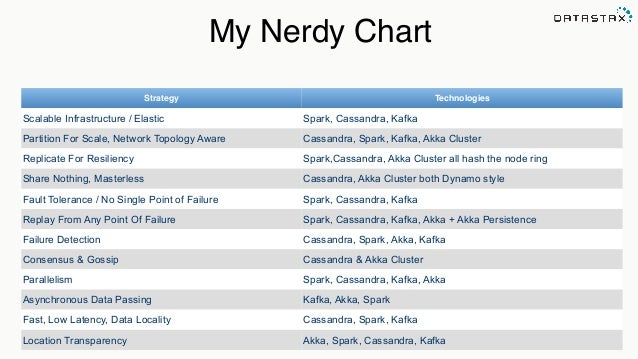

Strategy Technologies
Scalable Infrastructure / Elastic Spark, Cassandra, Kafka
Partition For Scale, Network Topology Awar...
Analytic
Analytic
Search

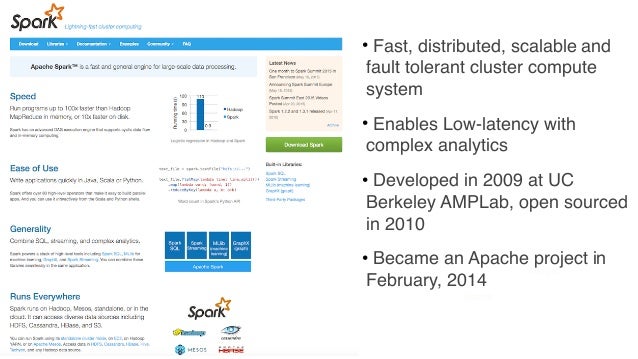

• Fast, distributed, scalable and
fault tolerant cluster compute
system
• Enables Low-latency wit...

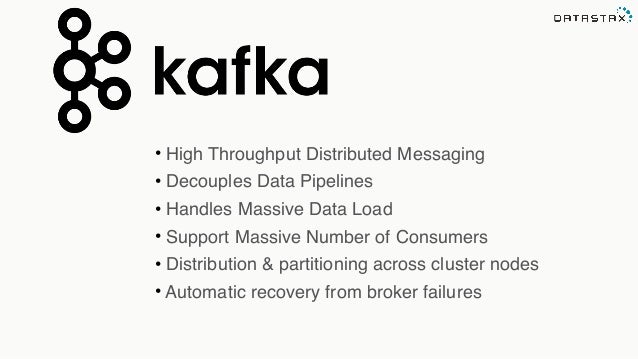

• High Throughput Distributed Messaging
• Decouples Data Pipelines
• Handles Massive Data Load
• Support Massive Number of...
Speaking Of Fault Tolerance…
The one thing in your infrastructure
you can always rely on.
© 2014 DataStax, All Rights Reserved Company Confidential17
Availability
"During Hurricane Sandy, we lost an entire data c...

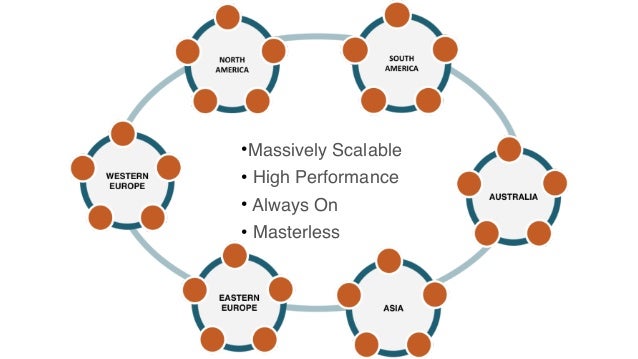

•Massively Scalable
• High Performance
• Always On
• Masterless
• Fault tolerant
• Hierarchical Supervision
• Customizable Failure Strategies & Detection
• Asynchronous Data Passing
• Pa...
I’ve used Scala
with these
every single time.
• Stream data from Kafka to Cassandra
• Stream data from Kafka to Spark and write to Cassandra
• Stream from Cassandra to ...

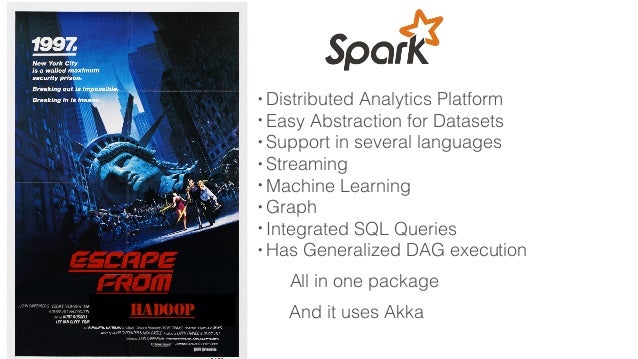

HADOOP
• Distributed Analytics Platform
• Easy Abstraction for Datasets
• Support in several languages
• Streaming
• Machi...

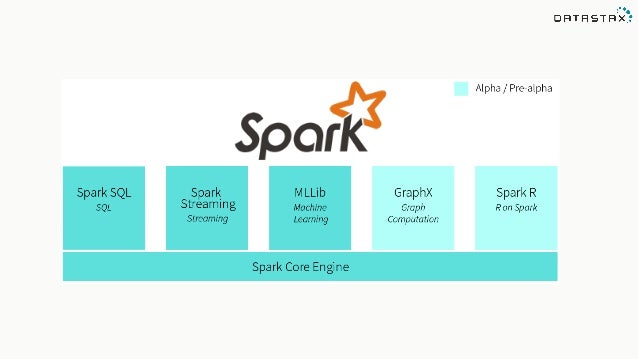

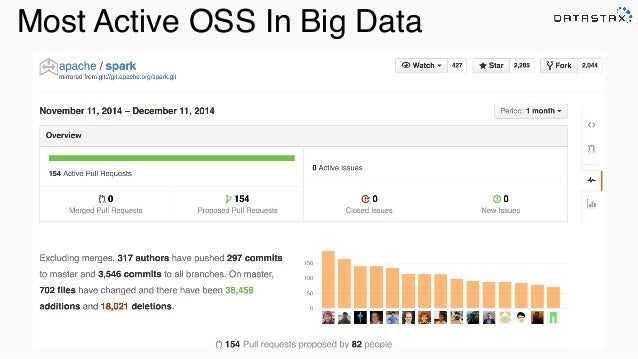

Most Active OSS In Big Data
Search

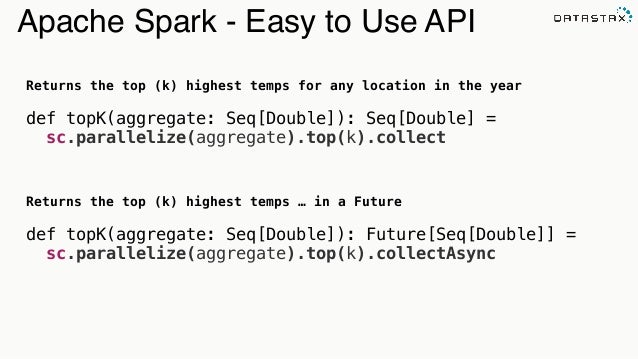

Apache Spark - Easy to Use API
Returns the top (k) highest temps for any location in the year
def topK(aggregate: Seq[Doub...

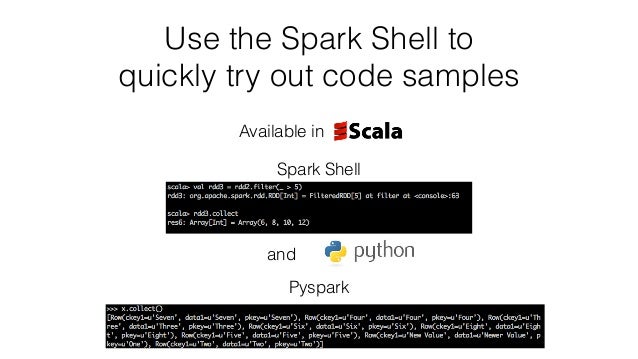

Use the Spark Shell to
quickly try out code samples
Available in
and
Pyspark
Spark Shell
Analytic
Analytic
Search

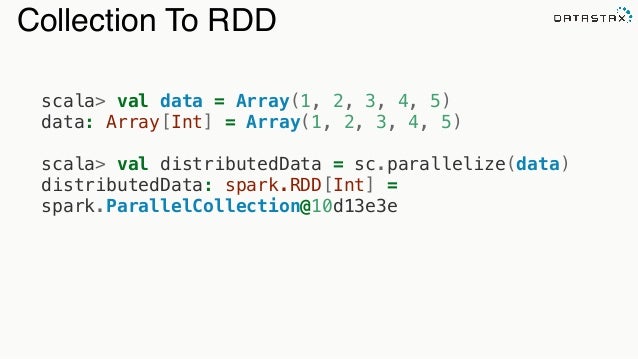

Collection To RDD
scala> val data = Array(1, 2, 3, 4, 5)

data: Array[Int] = Array(1, 2, 3, 4, 5)...
© 2014 DataStax, All Rights Reserved Company Confidential
Not Just MapReduce

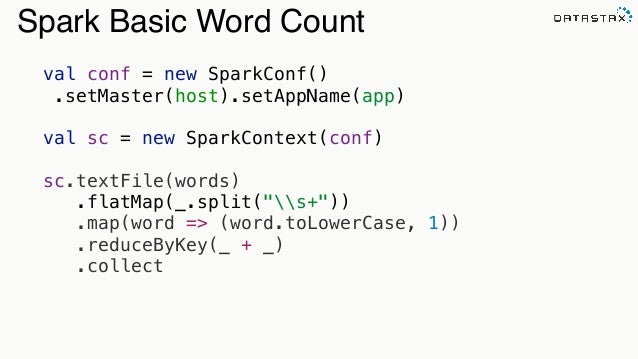

Spark Basic Word Count
val conf = new SparkConf()
.setMaster(host).setAppName(app)



val sc = new SparkContext(conf)
sc.t...

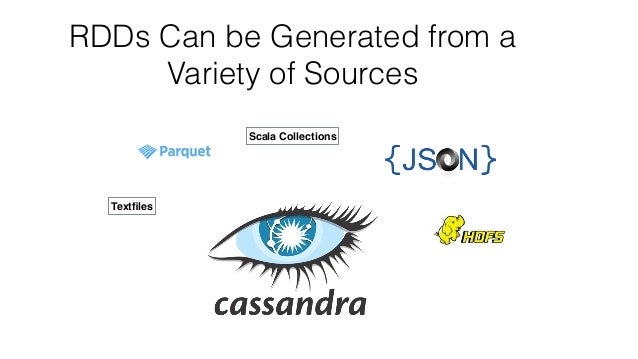

RDDs Can be Generated from a
Variety of Sources
Textfiles
Scala Collections
Analytic
Analytic
Search

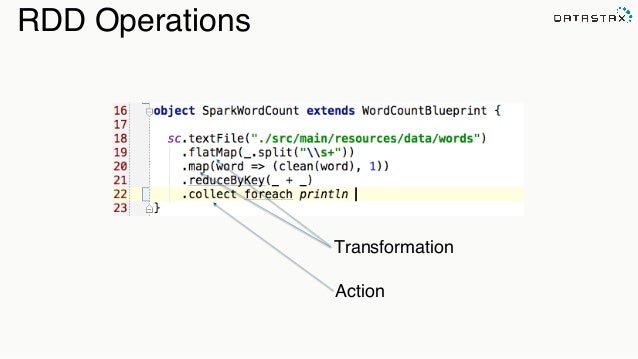

Transformation
Action
RDD Operations

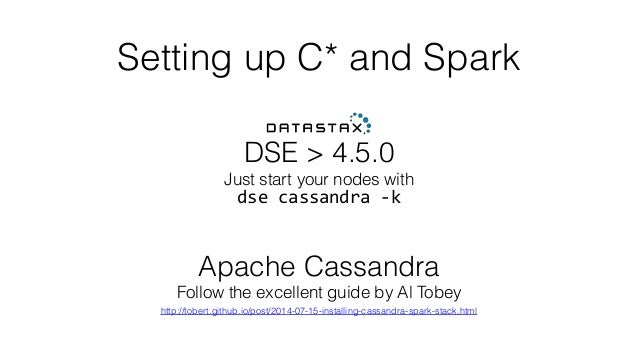

Setting up C* and Spark
DSE > 4.5.0
Just start your nodes with
dse
  cassandra
  -­‐k
Apache Cassandra
Follow the excell...
When Batch Is Not Enough
Analytic
Analytic
Analytic
Analytic
Search
Your Data Is Like Candy
Delicious: you want it now
Analytic
Analytic
Search
Your Data Is Like Candy
Delicious: you want it now
Batch Analytics
Analysis after data has accumu...

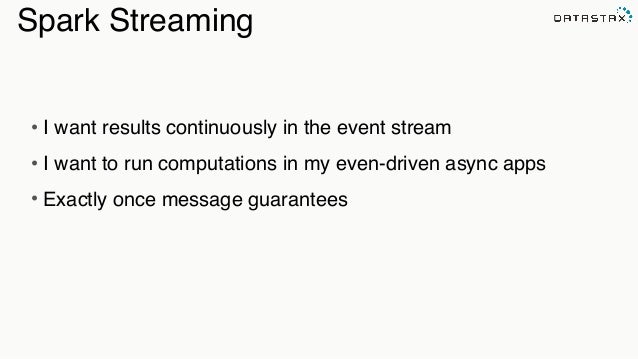

Spark Streaming
• I want results continuously in the event stream
• I want to run computations in my even-driven async app...

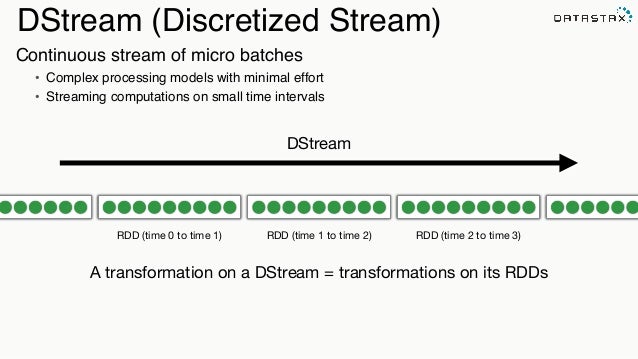

DStream (Discretized Stream)
RDD (time 0 to time 1) RDD (time 1 to time 2) RDD (time 2 to time 3)
A transformation on a DS...

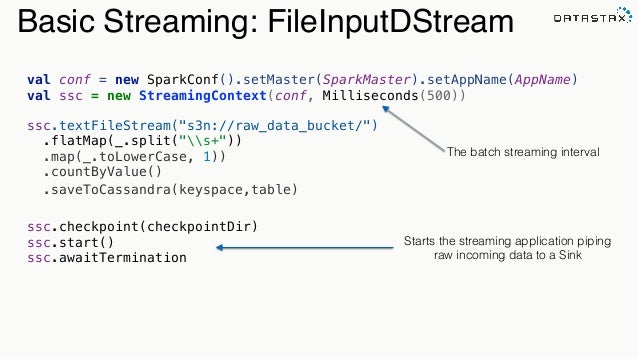

val conf = new SparkConf().setMaster(SparkMaster).setAppName(AppName)
val ssc = new StreamingContext(conf, Milliseconds(50...

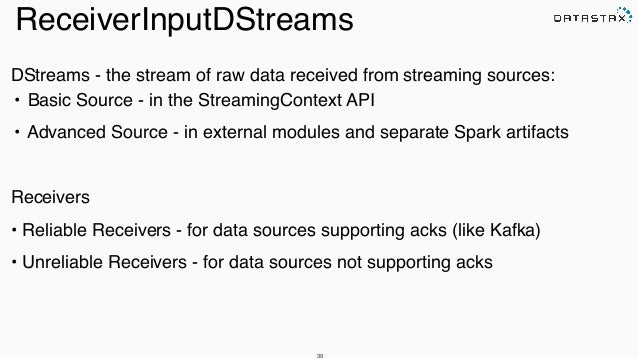

DStreams - the stream of raw data received from streaming sources:
• Basic Source - in the StreamingContext API
• Advanced...

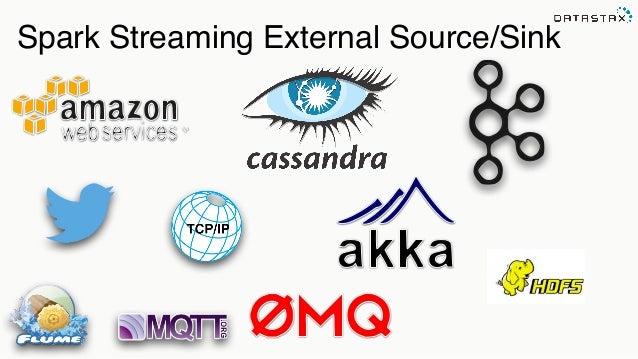

Spark Streaming External Source/Sink

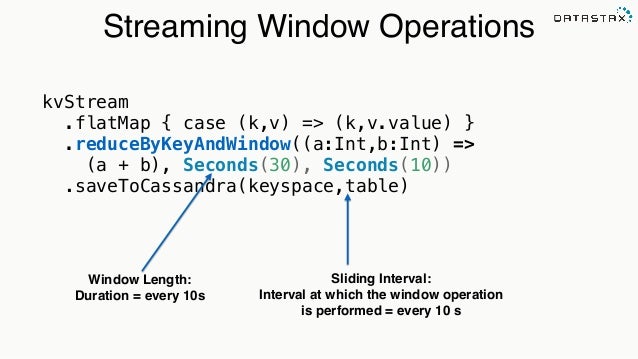

Streaming Window Operations
kvStream
.flatMap { case (k,v) => (k,v.value) }
.reduceByKeyAndWindow((a:Int,b:Int) =>
(a + b)...

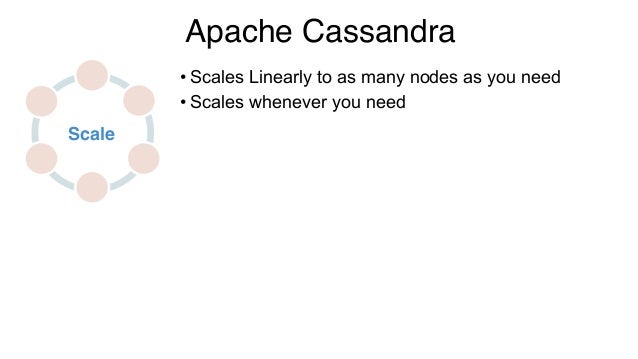

Scale
Apache Cassandra
• Scales Linearly to as many nodes as you need
• Scales whenever you need

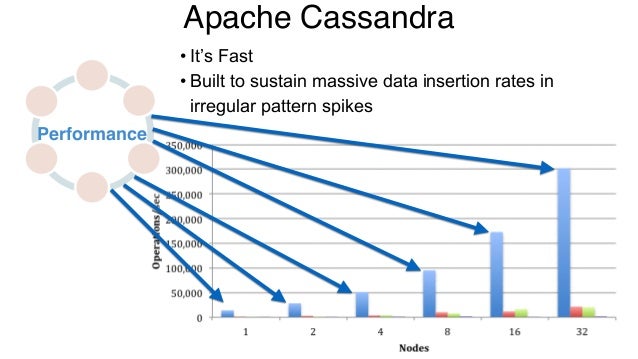

Performance
Apache Cassandra
• It’s Fast
• Built to sustain massive data insertion rates in
irregular pattern spikes

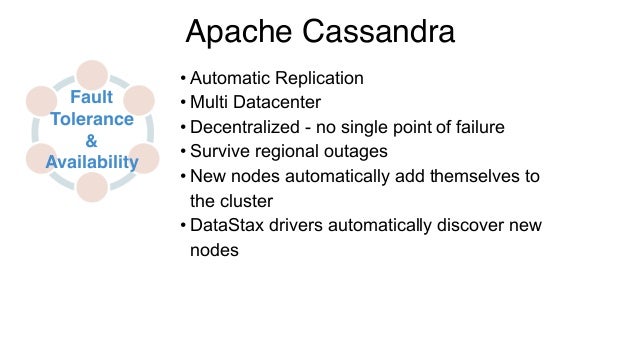

Fault
Tolerance
&
Availability
Apache Cassandra
• Automatic Replication
• Multi Datacenter
• Decentralized - no single poi...

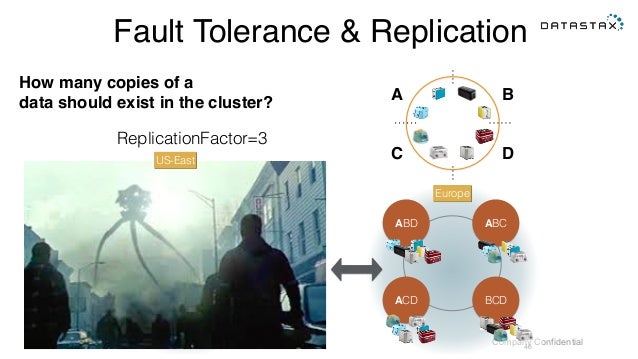

© 2014 DataStax, All Rights Reserved Company Confidential47

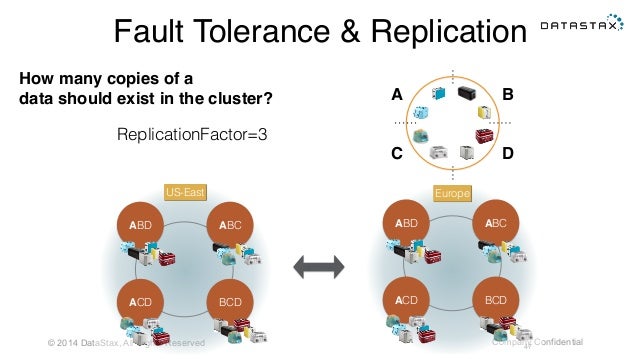

ACD
ABCABD
BCDACD
ABCABD
BCD
US-East Europe
How many copies of...
© 2014 DataStax, All Rights Reserved Company Confidential48
Cassandra Cluster
ACD
ABCABD
BCDACD
ABCABD
BCD
Europe
Replicat...
Strategies
Apache Cassandra
• Consensus - Paxos Protocol
• Sequential Read / Write - Timeseries
• Tunable Consistency
• Go...

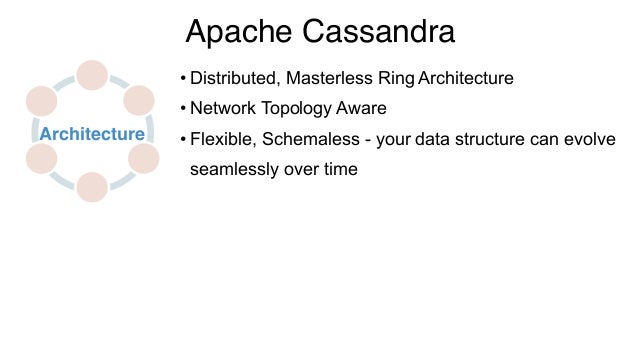

Architecture
Apache Cassandra
• Distributed, Masterless Ring Architecture
• Network Topology Aware
• Flexible, Schemaless ...
C* At CERN: Large Haldron Colider
•ATLAS - Largest of several detectors along the Large Hadron Collider
• Measures particl...
Genetics / Biological Computations
IoT

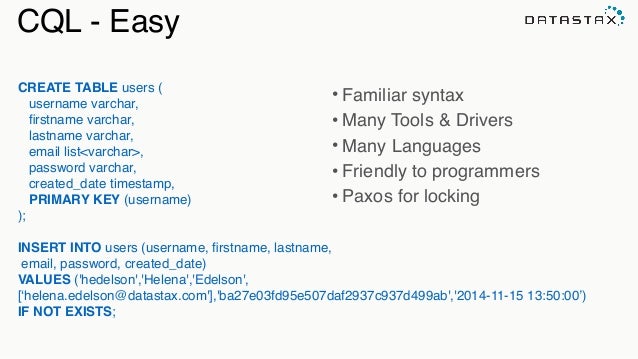

CREATE TABLE users (
username varchar,
firstname varchar,
lastname varchar,
email list<varchar>,
password varchar,
created_...

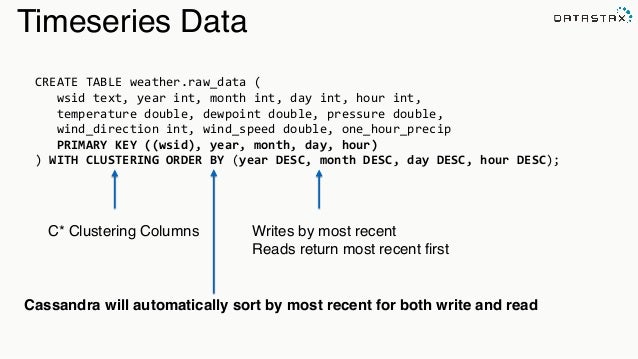

CREATE
  TABLE
  weather.raw_data
  (




  wsid
  text,
  year
  int,
  month
  int,
  day
  int,
  hou...

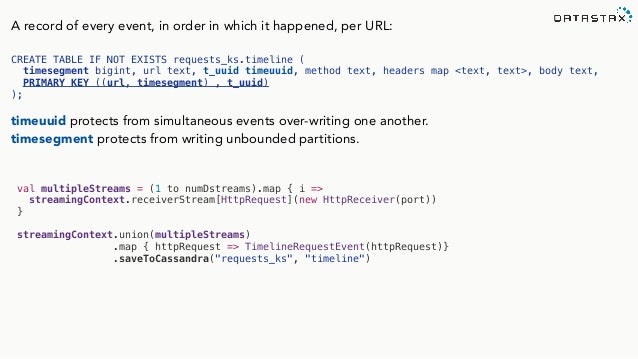

val multipleStreams = (1 to numDstreams).map { i =>
streamingContext.receiverStream[HttpRequest](new HttpReceiver(port))
}...
Spark Cassandra Connector
59
@helenaedelson

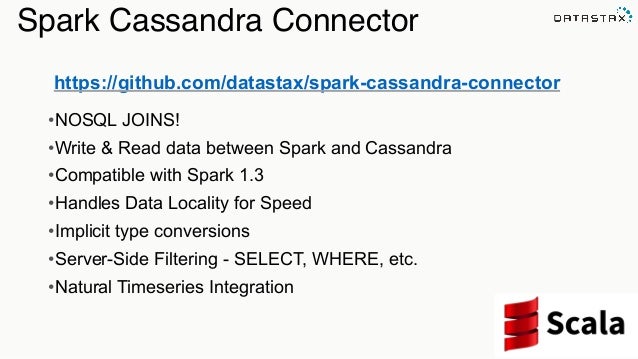

Spark Cassandra Connector
•NOSQL JOINS!
•Write & Read data between Spark and Cassandra
•Compatible with Spark 1.3
•Handles...

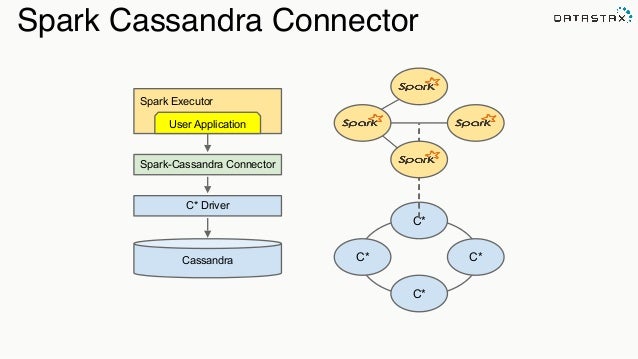

Spark Cassandra Connector
C*
C*
C*C*
Spark Executor
C* Driver
Spark-Cassandra Connector
User Application
Cassandra
Analytic
Search

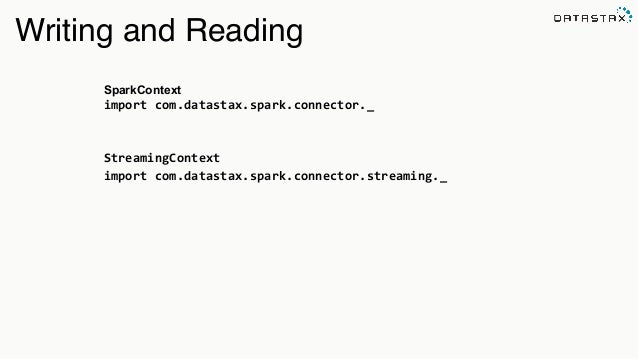

Writing and Reading
SparkContext
import
  com.datastax.spark.connector._

StreamingContext

import	...
Analytic

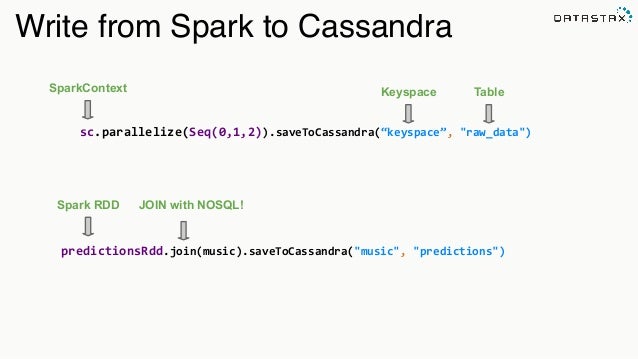

Write from Spark to Cassandra
sc.parallelize(Seq(0,1,2)).saveToCassandra(“keyspace”,
  "raw_data")
SparkContext ...

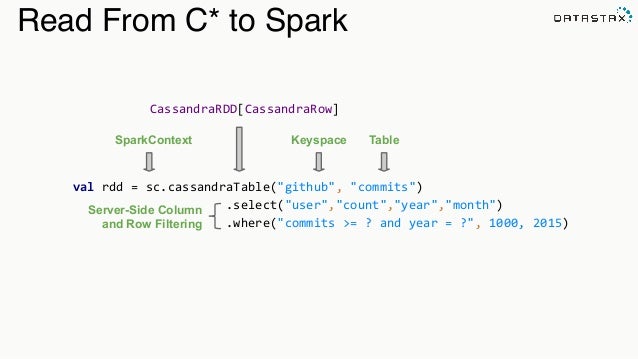

Read From C* to Spark
val
  rdd
  =
  sc.cassandraTable("github",
  "commits")










 ...

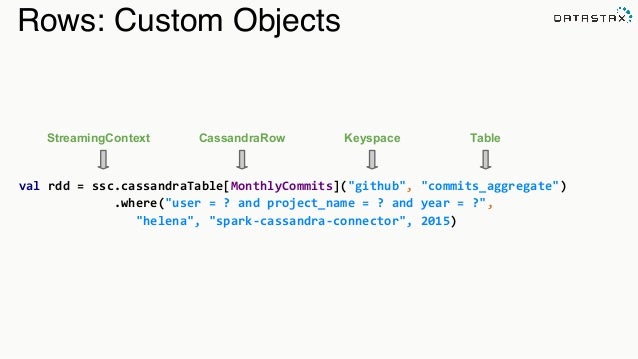

val
  rdd
  =
  ssc.cassandraTable[MonthlyCommits]("github",
  "commits_aggregate")









...

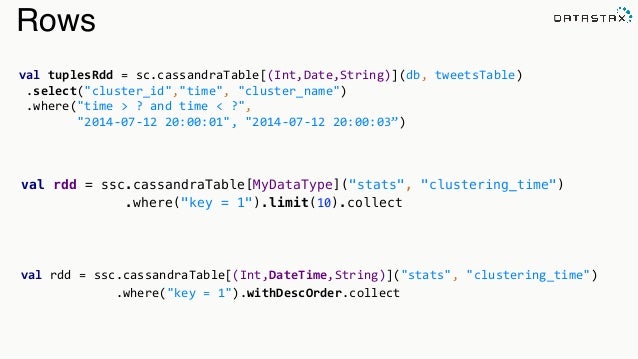

Rows
val
  tuplesRdd
  =
  sc.cassandraTable[(Int,Date,String)](db,
  tweetsTable)


  .select("cluster_id","time"...

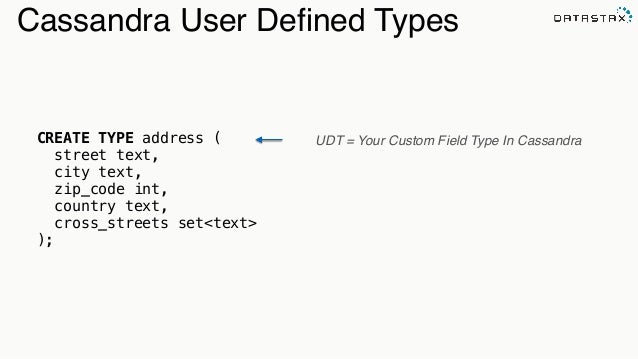

Cassandra User Defined Types
CREATE TYPE address (
street text,
city text,
zip_code int,
country text,
cross_streets set<t...

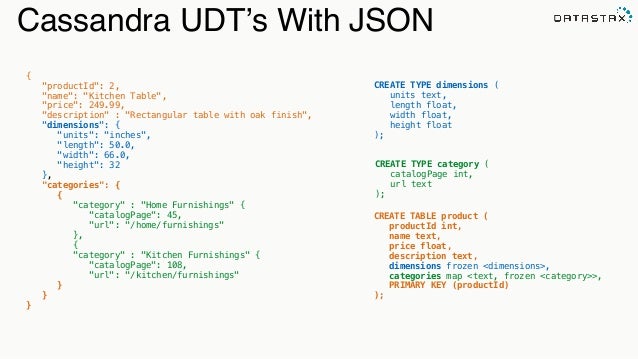

Cassandra UDT’s With JSON
{
"productId": 2,
"name": "Kitchen Table",
"price": 249.99,
"description" : "Rectangular table w...

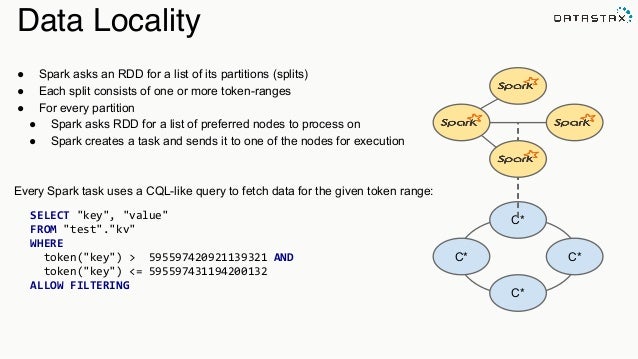

Data Locality
● Spark asks an RDD for a list of its partitions (splits)
● Each split consists of one or more token-ranges
...

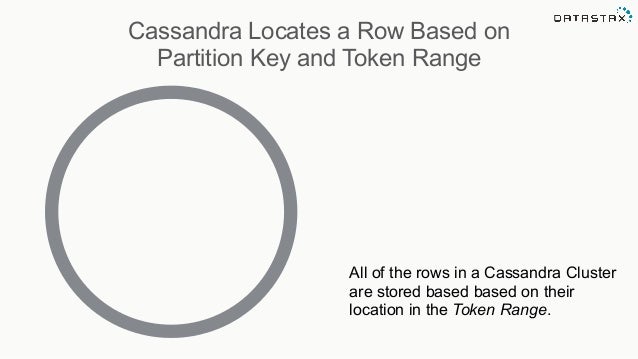

All of the rows in a Cassandra Cluster
are stored based based on their
location in the Token Range.
Cassandra Locates a Ro...
New York City/
Manhattan:
Helena
Warsaw:
Piotr & Jacek
San Francisco:
Brian,Russell &
Alex
Each of the Nodes in a

Cassan...
New York City
Warsaw
San Francisco
Each of the Nodes in a

Cassandra Cluster is primarily
responsible for one set of
Toke...

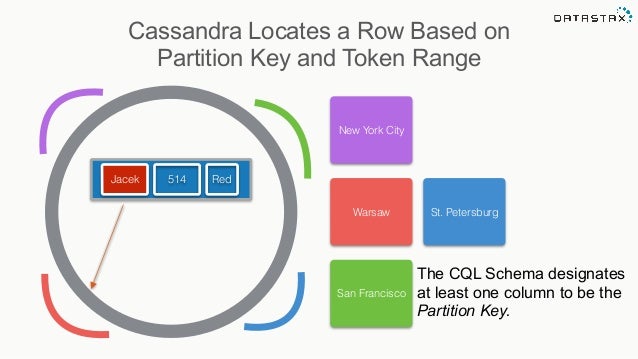

Jacek 514 Red
The CQL Schema designates
at least one column to be the
Partition Key.
New York City
Warsaw
San Francisco
Ca...

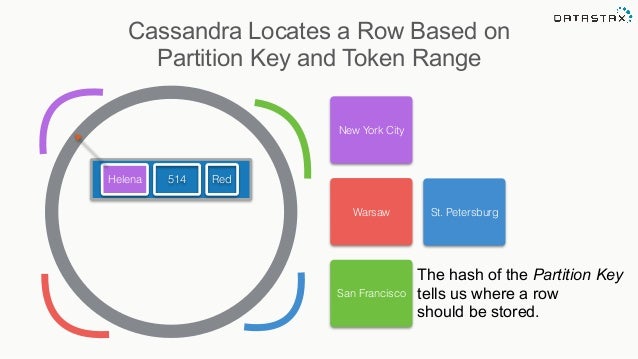

Helena 514 Red
The hash of the Partition Key
tells us where a row
should be stored.
New York City
Warsaw
San Francisco
Cas...

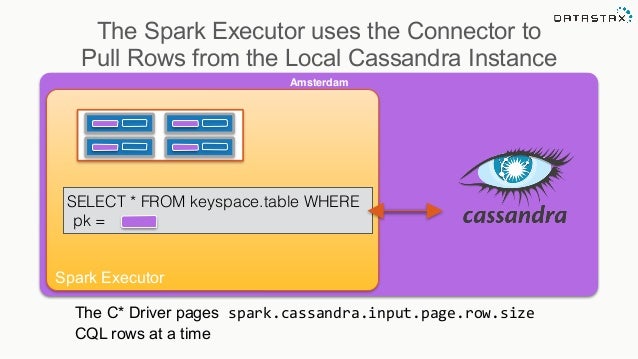

Amsterdam
Spark Executor
The C* Driver pages spark.cassandra.input.page.row.size
CQL rows at a time
SELECT * FROM keyspace...

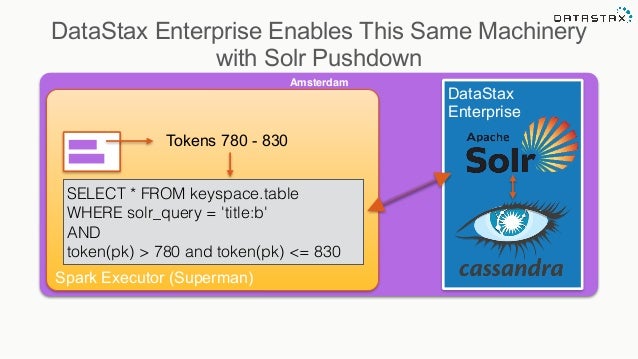

Amsterdam
Spark Executor (Superman)
DataStax
Enterprise
SELECT * FROM keyspace.table
WHERE solr_query = 'title:b'
AND
toke...
Composable Pipelines
With Spark, Kafka & Cassandra
77
@helenaedelson

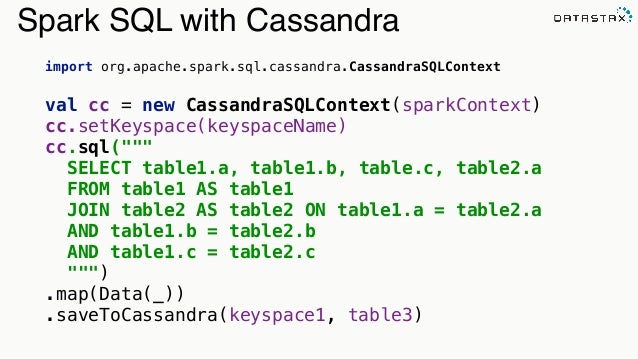

Spark SQL with Cassandra
import org.apache.spark.sql.cassandra.CassandraSQLContext
val cc = new CassandraSQLContext(sparkC...


val sql = new SQLContext(sparkContext)
val json = Seq(

"""{"user":"helena","commits":98, "month":3, "year":2015}""",

"...
Analytic
Analytic
Search

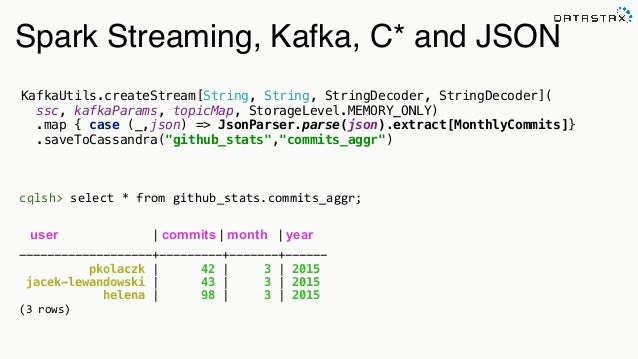

Spark Streaming, Kafka, C* and JSON
cqlsh>
  select
  *
  from
  github_stats.commits_aggr;
...

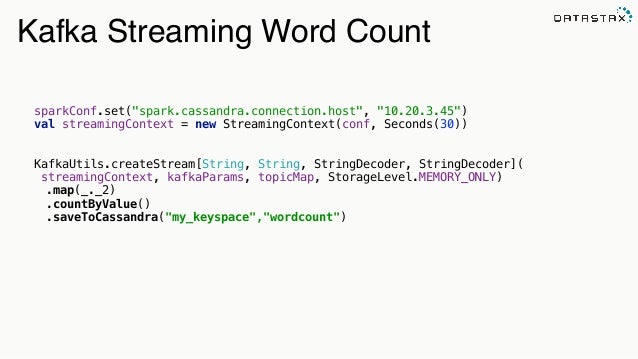

Kafka Streaming Word Count
sparkConf.set("spark.cassandra.connection.host", "10.20.3.45")

val streamingContext = new Stre...

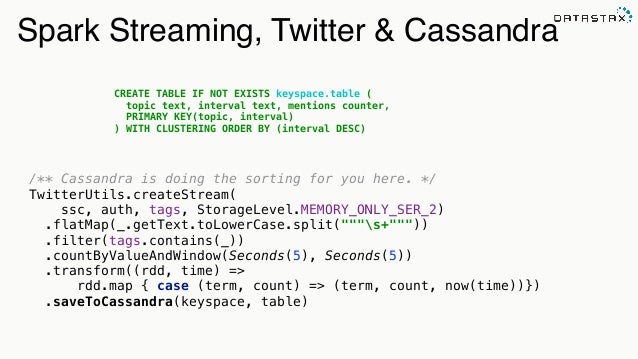

Spark Streaming, Twitter & Cassandra
/** Cassandra is doing the sorting for you here. */

TwitterUtils.createStream(
ssc, ...

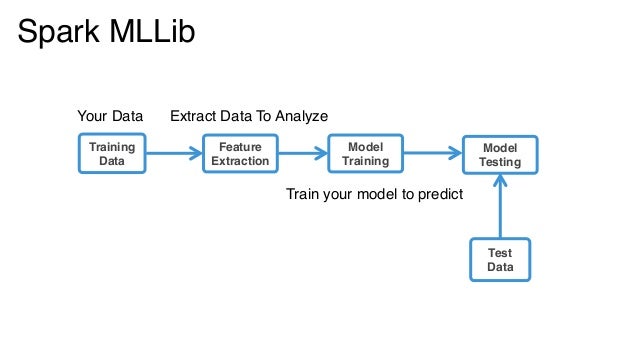

Training
Data
Feature
Extraction
Model
Training
Model
Testing
Test
Data
Your Data Extract Data To Analyze
Train your model...

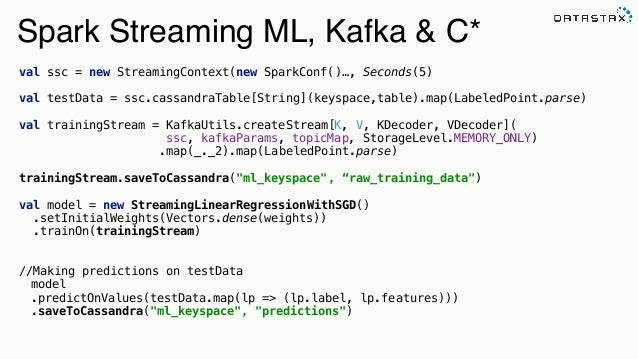

val ssc = new StreamingContext(new SparkConf()…, Seconds(5)

val testData = ssc.cassandraTable[String](keyspace,table).map...

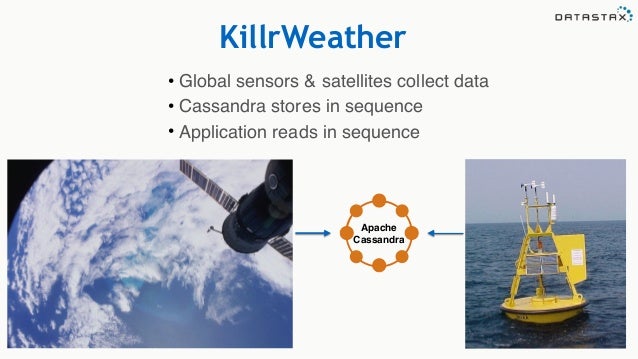

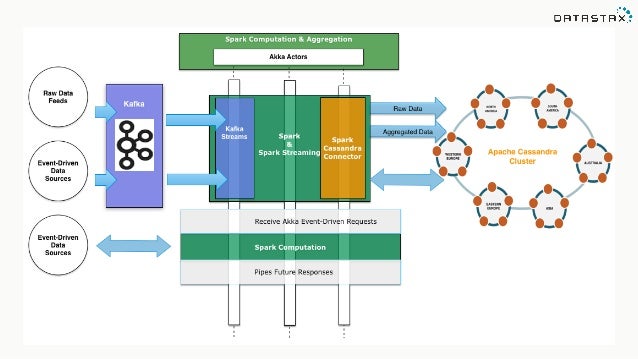

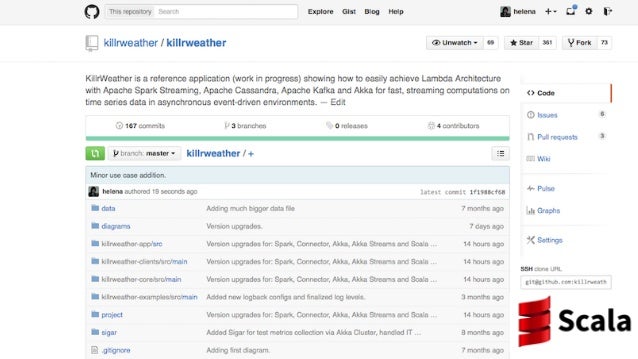

KillrWeather
• Global sensors & satellites collect data
• Cassandra stores in sequence
• Application reads in sequence
Apa...

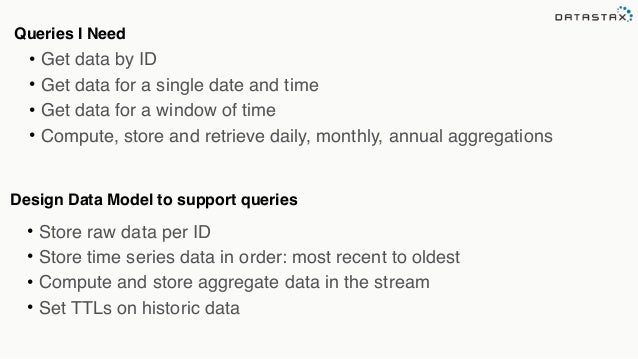

Data model should look like your queries
• Store raw data per ID
• Store time series data in order: most recent to oldest
• Compute and store aggregate data in the...

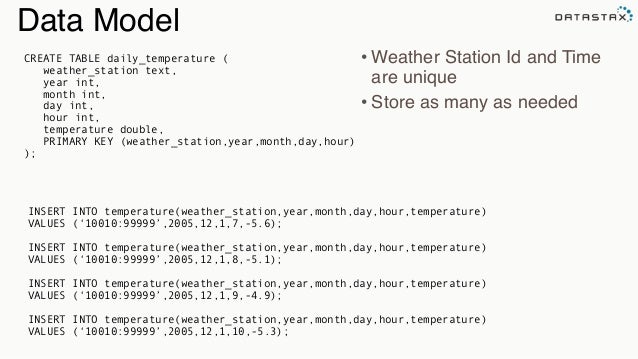

Data Model
• Weather Station Id and Time
are unique
• Store as many as needed
CREATE TABLE daily_temperature (
weather_sta...
class HttpNodeGuardian extends ClusterAwareNodeGuardianActor {

cluster.joinSeedNodes(Vector(..))


context.actorOf(Balanc...

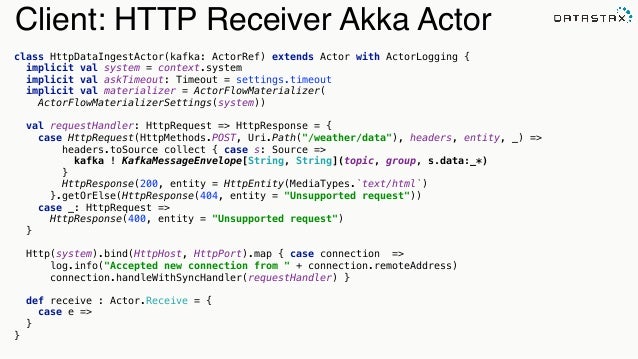

class HttpDataIngestActor(kafka: ActorRef) extends Actor with ActorLogging {

implicit val system = context.system

implic...

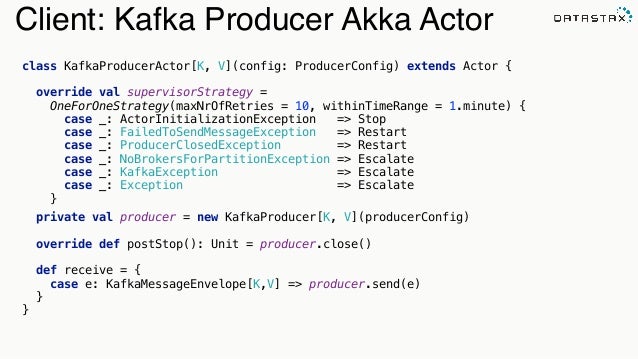

class KafkaProducerActor[K, V](config: ProducerConfig) extends Actor {



override val supervisorStrategy =

OneForOneStra...
Store raw data on ingestion
val kafkaStream = KafkaUtils.createStream[K, V, KDecoder, VDecoder]
(ssc, kafkaParams, topicMap, StorageLevel.DISK_ONLY_2)...
CREATE
  TABLE
  weather.raw_data
  (




  wsid
  text,
  year
  int,
  month
  int,
  day
  int,
  hou...
Gets the partition key: Data Locality
Spark C* Connector feeds this to Spark
Cassandra Counter column in our schema,
no ex...
/** For a given weather station, calculates annual cumulative precip - or year to date. */

class PrecipitationActor(ssc: ...
class TemperatureActor(sc: SparkContext, settings: WeatherSettings)
extends AggregationActor {

import akka.pattern.pipe

...
99
@helenaedelson
github.com/helena
slideshare.net/helenaedelson
Learn More Online and at Cassandra Summit
https://academy.datastax.com/
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala
Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala

Upcoming SlideShare

Loading in …5

×

  1. 1. @helenaedelson Helena Edelson Lambda Architecture with Spark Streaming, Kafka, Cassandra, Akka, Scala 1
  2. 2. • Spark Cassandra Connector committer • Akka contributor - 2 new features in Akka Cluster • Big Data & Scala conference speaker • Currently Sr Software Engineer, Analytics @ DataStax • Sr Cloud Engineer, VMware,CrowdStrike,SpringSource… • Prev Spring committer - Spring AMQP, Spring Integration Analytic Who Is This Person?
  3. 3. Talk Roadmap What Lambda Architecture & Delivering Meaning Why Spark, Kafka, Cassandra & Akka integration How Composable Pipelines - Code helena.edelson@datastax.com
  4. 4. I need fast access to historical data on the fly for predictive modeling with real time data from the stream
  5. 5. Lambda Architecture A data-processing architecture designed to handle massive quantities of data by taking advantage of both batch and stream processing methods. • Spark is one of the few data processing frameworks that allows you to seamlessly integrate batch and stream processing • Of petabytes of data • In the same application
  6. 6. Your Code
  7. 7. Moving Data Between Systems Is Difficult Risky and Expensive 9 @helenaedelson
  8. 8. How Do We Approach This?
  9. 9. Strategies • Scalable Infrastructure • Partition For Scale • Replicate For Resiliency • Share Nothing • Asynchronous Message Passing • Parallelism • Isolation • Data Locality • Location Transparency
  10. 10. Strategy Technologies Scalable Infrastructure / Elastic Spark, Cassandra, Kafka Partition For Scale, Network Topology Aware Cassandra, Spark, Kafka, Akka Cluster Replicate For Resiliency Spark,Cassandra, Akka Cluster all hash the node ring Share Nothing, Masterless Cassandra, Akka Cluster both Dynamo style Fault Tolerance / No Single Point of Failure Spark, Cassandra, Kafka Replay From Any Point Of Failure Spark, Cassandra, Kafka, Akka + Akka Persistence Failure Detection Cassandra, Spark, Akka, Kafka Consensus & Gossip Cassandra & Akka Cluster Parallelism Spark, Cassandra, Kafka, Akka Asynchronous Data Passing Kafka, Akka, Spark Fast, Low Latency, Data Locality Cassandra, Spark, Kafka Location Transparency Akka, Spark, Cassandra, Kafka My Nerdy Chart
  11. 11. Analytic Analytic Search • Fast, distributed, scalable and fault tolerant cluster compute system • Enables Low-latency with complex analytics • Developed in 2009 at UC Berkeley AMPLab, open sourced in 2010 • Became an Apache project in February, 2014
  12. 12. • High Throughput Distributed Messaging • Decouples Data Pipelines • Handles Massive Data Load • Support Massive Number of Consumers • Distribution & partitioning across cluster nodes • Automatic recovery from broker failures
  13. 13. Speaking Of Fault Tolerance…
  14. 14. The one thing in your infrastructure you can always rely on.
  15. 15. © 2014 DataStax, All Rights Reserved Company Confidential17 Availability "During Hurricane Sandy, we lost an entire data center. Completely. Lost. It. Our data in Cassandra never went offline."
  16. 16. •Massively Scalable • High Performance • Always On • Masterless
  17. 17. • Fault tolerant • Hierarchical Supervision • Customizable Failure Strategies & Detection • Asynchronous Data Passing • Parallelization - Balancing Pool Routers • Akka Cluster • Adaptive / Predictive • Load-Balanced Across Cluster Nodes
  18. 18. I’ve used Scala with these every single time.
  19. 19. • Stream data from Kafka to Cassandra • Stream data from Kafka to Spark and write to Cassandra • Stream from Cassandra to Spark - coming soon! • Read data from Spark/Spark Streaming Source and write to C* • Read data from Cassandra to Spark
  20. 20. HADOOP • Distributed Analytics Platform • Easy Abstraction for Datasets • Support in several languages • Streaming • Machine Learning • Graph • Integrated SQL Queries • Has Generalized DAG execution All in one package And it uses Akka
  21. 21. Most Active OSS In Big Data Search
  22. 22. Apache Spark - Easy to Use API Returns the top (k) highest temps for any location in the year def topK(aggregate: Seq[Double]): Seq[Double] = sc.parallelize(aggregate).top(k).collect Returns the top (k) highest temps … in a Future def topK(aggregate: Seq[Double]): Future[Seq[Double]] = sc.parallelize(aggregate).top(k).collectAsync Analytic Analytic Search
  23. 23. Use the Spark Shell to quickly try out code samples Available in and Pyspark Spark Shell
  24. 24. Analytic Analytic Search Collection To RDD scala> val data = Array(1, 2, 3, 4, 5)
 data: Array[Int] = Array(1, 2, 3, 4, 5)

 scala> val distributedData = sc.parallelize(data)
 distributedData: spark.RDD[Int] = spark.ParallelCollection@10d13e3e
  25. 25. © 2014 DataStax, All Rights Reserved Company Confidential Not Just MapReduce
  26. 26. Spark Basic Word Count val conf = new SparkConf() .setMaster(host).setAppName(app)

 val sc = new SparkContext(conf) sc.textFile(words) .flatMap(_.split("s+")) .map(word => (word.toLowerCase, 1)) .reduceByKey(_ + _) .collect Analytic Analytic Search
  27. 27. RDDs Can be Generated from a Variety of Sources Textfiles Scala Collections
  28. 28. Analytic Analytic Search Transformation Action RDD Operations
  29. 29. Setting up C* and Spark DSE > 4.5.0 Just start your nodes with dse  cassandra  -­‐k Apache Cassandra Follow the excellent guide by Al Tobey http://tobert.github.io/post/2014-07-15-installing-cassandra-spark-stack.html
  30. 30. When Batch Is Not Enough Analytic Analytic
  31. 31. Analytic Analytic Search Your Data Is Like Candy Delicious: you want it now
  32. 32. Analytic Analytic Search Your Data Is Like Candy Delicious: you want it now Batch Analytics Analysis after data has accumulated Decreases the weight of the data by the time it is processed Streaming Analytics Analytics as data arrives. The data won’t be stale and neither will our analytics Both in same app = Lambda
  33. 33. Spark Streaming • I want results continuously in the event stream • I want to run computations in my even-driven async apps • Exactly once message guarantees
  34. 34. DStream (Discretized Stream) RDD (time 0 to time 1) RDD (time 1 to time 2) RDD (time 2 to time 3) A transformation on a DStream = transformations on its RDDs DStream Continuous stream of micro batches • Complex processing models with minimal effort • Streaming computations on small time intervals
  35. 35. val conf = new SparkConf().setMaster(SparkMaster).setAppName(AppName) val ssc = new StreamingContext(conf, Milliseconds(500)) ssc.textFileStream("s3n://raw_data_bucket/") .flatMap(_.split("s+")) .map(_.toLowerCase, 1)) .countByValue() .saveToCassandra(keyspace,table) ssc.checkpoint(checkpointDir) ssc.start() ssc.awaitTermination Starts the streaming application piping raw incoming data to a Sink The batch streaming interval Basic Streaming: FileInputDStream
  36. 36. DStreams - the stream of raw data received from streaming sources: • Basic Source - in the StreamingContext API • Advanced Source - in external modules and separate Spark artifacts Receivers • Reliable Receivers - for data sources supporting acks (like Kafka) • Unreliable Receivers - for data sources not supporting acks 39 ReceiverInputDStreams
  37. 37. Spark Streaming External Source/Sink
  38. 38. Streaming Window Operations kvStream .flatMap { case (k,v) => (k,v.value) } .reduceByKeyAndWindow((a:Int,b:Int) => (a + b), Seconds(30), Seconds(10)) .saveToCassandra(keyspace,table) Window Length: Duration = every 10s Sliding Interval: Interval at which the window operation is performed = every 10 s
  39. 39. Scale Apache Cassandra • Scales Linearly to as many nodes as you need • Scales whenever you need
  40. 40. Performance Apache Cassandra • It’s Fast • Built to sustain massive data insertion rates in irregular pattern spikes
  41. 41. Fault Tolerance & Availability Apache Cassandra • Automatic Replication • Multi Datacenter • Decentralized - no single point of failure • Survive regional outages • New nodes automatically add themselves to the cluster • DataStax drivers automatically discover new nodes
  42. 42. © 2014 DataStax, All Rights Reserved Company Confidential47 ACD ABCABD BCDACD ABCABD BCD US-East Europe How many copies of a data should exist in the cluster? ReplicationFactor=3 A B C D Fault Tolerance & Replication
  43. 43. © 2014 DataStax, All Rights Reserved Company Confidential48 Cassandra Cluster ACD ABCABD BCDACD ABCABD BCD Europe ReplicationFactor=3 US-East A B C D Fault Tolerance & Replication How many copies of a data should exist in the cluster?
  44. 44. Strategies Apache Cassandra • Consensus - Paxos Protocol • Sequential Read / Write - Timeseries • Tunable Consistency • Gossip: Did you hear node 1 was down??
  45. 45. Architecture Apache Cassandra • Distributed, Masterless Ring Architecture • Network Topology Aware • Flexible, Schemaless - your data structure can evolve seamlessly over time
  46. 46. C* At CERN: Large Haldron Colider •ATLAS - Largest of several detectors along the Large Hadron Collider • Measures particle production when protons collide at a very high center of mass energy •- Bursty traffic •- Volume of data from sensors requires • - Very large trigger and data acquisition system • - 30,000 applications on 2,000 nodes
  47. 47. Genetics / Biological Computations
  48. 48. IoT
  49. 49. CREATE TABLE users ( username varchar, firstname varchar, lastname varchar, email list<varchar>, password varchar, created_date timestamp, PRIMARY KEY (username) ); INSERT INTO users (username, firstname, lastname, email, password, created_date) VALUES ('hedelson','Helena','Edelson', [‘helena.edelson@datastax.com'],'ba27e03fd95e507daf2937c937d499ab','2014-11-15 13:50:00’) IF NOT EXISTS; • Familiar syntax • Many Tools & Drivers • Many Languages • Friendly to programmers • Paxos for locking CQL - Easy
  50. 50. CREATE  TABLE  weather.raw_data  (
      wsid  text,  year  int,  month  int,  day  int,  hour  int,
      temperature  double,  dewpoint  double,  pressure  double,          wind_direction  int,  wind_speed  double,  one_hour_precip              PRIMARY  KEY  ((wsid),  year,  month,  day,  hour)
 )  WITH  CLUSTERING  ORDER  BY  (year  DESC,  month  DESC,  day  DESC,  hour  DESC);   C* Clustering Columns Writes by most recent Reads return most recent first Timeseries Data Cassandra will automatically sort by most recent for both write and read
  51. 51. val multipleStreams = (1 to numDstreams).map { i => streamingContext.receiverStream[HttpRequest](new HttpReceiver(port)) } streamingContext.union(multipleStreams) .map { httpRequest => TimelineRequestEvent(httpRequest)} .saveToCassandra("requests_ks", "timeline") A record of every event, in order in which it happened, per URL: CREATE TABLE IF NOT EXISTS requests_ks.timeline ( timesegment bigint, url text, t_uuid timeuuid, method text, headers map <text, text>, body text, PRIMARY KEY ((url, timesegment) , t_uuid) ); timeuuid protects from simultaneous events over-writing one another. timesegment protects from writing unbounded partitions.
  52. 52. Spark Cassandra Connector 59 @helenaedelson
  53. 53. Spark Cassandra Connector •NOSQL JOINS! •Write & Read data between Spark and Cassandra •Compatible with Spark 1.3 •Handles Data Locality for Speed •Implicit type conversions •Server-Side Filtering - SELECT, WHERE, etc. •Natural Timeseries Integration https://github.com/datastax/spark-cassandra-connector
  54. 54. Spark Cassandra Connector C* C* C*C* Spark Executor C* Driver Spark-Cassandra Connector User Application Cassandra
  55. 55. Analytic Search Writing and Reading SparkContext import  com.datastax.spark.connector._   StreamingContext   import  com.datastax.spark.connector.streaming._
  56. 56. Analytic Write from Spark to Cassandra sc.parallelize(Seq(0,1,2)).saveToCassandra(“keyspace”,  "raw_data") SparkContext Keyspace Table Spark RDD JOIN with NOSQL! predictionsRdd.join(music).saveToCassandra("music",  "predictions")
  57. 57. Read From C* to Spark val  rdd  =  sc.cassandraTable("github",  "commits")                                            .select("user","count","year","month")                                            .where("commits  >=  ?  and  year  =  ?",  1000,  2015) CassandraRDD[CassandraRow] Keyspace Table Server-Side Column and Row Filtering SparkContext
  58. 58. val  rdd  =  ssc.cassandraTable[MonthlyCommits]("github",  "commits_aggregate")                            .where("user  =  ?  and  project_name  =  ?  and  year  =  ?",                                    "helena",  "spark-­‐cassandra-­‐connector",  2015) CassandraRow Keyspace TableStreamingContext Rows: Custom Objects
  59. 59. Rows val  tuplesRdd  =  sc.cassandraTable[(Int,Date,String)](db,  tweetsTable)    .select("cluster_id","time",  "cluster_name")    .where("time  >  ?  and  time  <  ?",                  "2014-­‐07-­‐12  20:00:01",  "2014-­‐07-­‐12  20:00:03”) val rdd = ssc.cassandraTable[MyDataType]("stats", "clustering_time") .where("key = 1").limit(10).collect   val  rdd  =  ssc.cassandraTable[(Int,DateTime,String)]("stats",  "clustering_time")                            .where("key  =  1").withDescOrder.collect
  60. 60. Cassandra User Defined Types CREATE TYPE address ( street text, city text, zip_code int, country text, cross_streets set<text> ); UDT = Your Custom Field Type In Cassandra
  61. 61. Cassandra UDT’s With JSON { "productId": 2, "name": "Kitchen Table", "price": 249.99, "description" : "Rectangular table with oak finish", "dimensions": { "units": "inches", "length": 50.0, "width": 66.0, "height": 32 }, "categories": { { "category" : "Home Furnishings" { "catalogPage": 45, "url": "/home/furnishings" }, { "category" : "Kitchen Furnishings" { "catalogPage": 108, "url": "/kitchen/furnishings" } } } CREATE TYPE dimensions ( units text, length float, width float, height float ); CREATE TYPE category ( catalogPage int, url text ); CREATE TABLE product ( productId int, name text, price float, description text, dimensions frozen <dimensions>, categories map <text, frozen <category>>, PRIMARY KEY (productId) );
  62. 62. Data Locality ● Spark asks an RDD for a list of its partitions (splits) ● Each split consists of one or more token-ranges ● For every partition ● Spark asks RDD for a list of preferred nodes to process on ● Spark creates a task and sends it to one of the nodes for execution Every Spark task uses a CQL-like query to fetch data for the given token range: C* C* C*C* SELECT  "key",  "value"
 FROM  "test"."kv"
 WHERE
    token("key")  >    595597420921139321  AND
    token("key")  <=  595597431194200132     ALLOW  FILTERING
  63. 63. All of the rows in a Cassandra Cluster are stored based based on their location in the Token Range. Cassandra Locates a Row Based on Partition Key and Token Range
  64. 64. New York City/ Manhattan: Helena Warsaw: Piotr & Jacek San Francisco: Brian,Russell & Alex Each of the Nodes in a
 Cassandra Cluster is primarily responsible for one set of Tokens. 0999 500 Cassandra Locates a Row Based on Partition Key and Token Range St. Petersburg: Artem
  65. 65. New York City Warsaw San Francisco Each of the Nodes in a
 Cassandra Cluster is primarily responsible for one set of Tokens. 0999 500 750 - 99 350 - 749 100 - 349 Cassandra Locates a Row Based on Partition Key and Token Range St. Petersburg
  66. 66. Jacek 514 Red The CQL Schema designates at least one column to be the Partition Key. New York City Warsaw San Francisco Cassandra Locates a Row Based on Partition Key and Token Range St. Petersburg
  67. 67. Helena 514 Red The hash of the Partition Key tells us where a row should be stored. New York City Warsaw San Francisco Cassandra Locates a Row Based on Partition Key and Token Range St. Petersburg
  68. 68. Amsterdam Spark Executor The C* Driver pages spark.cassandra.input.page.row.size CQL rows at a time SELECT * FROM keyspace.table WHERE pk = The Spark Executor uses the Connector to Pull Rows from the Local Cassandra Instance
  69. 69. Amsterdam Spark Executor (Superman) DataStax Enterprise SELECT * FROM keyspace.table WHERE solr_query = 'title:b' AND token(pk) > 780 and token(pk) <= 830 Tokens 780 - 830 DataStax Enterprise Enables This Same Machinery
 with Solr Pushdown
  70. 70. Composable Pipelines With Spark, Kafka & Cassandra 77 @helenaedelson
  71. 71. Spark SQL with Cassandra import org.apache.spark.sql.cassandra.CassandraSQLContext val cc = new CassandraSQLContext(sparkContext) cc.setKeyspace(keyspaceName) cc.sql(""" SELECT table1.a, table1.b, table.c, table2.a FROM table1 AS table1 JOIN table2 AS table2 ON table1.a = table2.a AND table1.b = table2.b AND table1.c = table2.c """) .map(Data(_)) .saveToCassandra(keyspace1, table3)
  72. 72.
 val sql = new SQLContext(sparkContext) val json = Seq(
 """{"user":"helena","commits":98, "month":3, "year":2015}""",
 """{"user":"jacek-lewandowski", "commits":72, "month":3, "year":2015}""",
 """{"user":"pkolaczk", "commits":42, "month":3, "year":2015}""") // write sql.jsonRDD(json) .map(CommitStats(_)) .flatMap(compute) .saveToCassandra("stats","monthly_commits")
 // read val rdd = sc.cassandraTable[MonthlyCommits]("stats","monthly_commits") cqlsh>  CREATE  TABLE  github_stats.commits_aggr(user  VARCHAR  PRIMARY  KEY,  commits  INT…); Spark SQL with Cassandra & JSON
  73. 73. Analytic Analytic Search Spark Streaming, Kafka, C* and JSON cqlsh>  select  *  from  github_stats.commits_aggr;
   user | commits | month | year -------------------+---------+-------+------ pkolaczk | 42 | 3 | 2015 jacek-lewandowski | 43 | 3 | 2015 helena | 98 | 3 | 2015
 (3  rows)   KafkaUtils.createStream[String, String, StringDecoder, StringDecoder](
 ssc, kafkaParams, topicMap, StorageLevel.MEMORY_ONLY)
 .map { case (_,json) => JsonParser.parse(json).extract[MonthlyCommits]}
 .saveToCassandra("github_stats","commits_aggr")
  74. 74. Kafka Streaming Word Count sparkConf.set("spark.cassandra.connection.host", "10.20.3.45")
 val streamingContext = new StreamingContext(conf, Seconds(30))
 KafkaUtils.createStream[String, String, StringDecoder, StringDecoder](
 streamingContext, kafkaParams, topicMap, StorageLevel.MEMORY_ONLY) .map(_._2) .countByValue() .saveToCassandra("my_keyspace","wordcount")
  75. 75. Spark Streaming, Twitter & Cassandra /** Cassandra is doing the sorting for you here. */
 TwitterUtils.createStream( ssc, auth, tags, StorageLevel.MEMORY_ONLY_SER_2)
 .flatMap(_.getText.toLowerCase.split("""s+"""))
 .filter(tags.contains(_))
 .countByValueAndWindow(Seconds(5), Seconds(5))
 .transform((rdd, time) => rdd.map { case (term, count) => (term, count, now(time))})
 .saveToCassandra(keyspace, table) CREATE TABLE IF NOT EXISTS keyspace.table (
 topic text, interval text, mentions counter,
 PRIMARY KEY(topic, interval)
 ) WITH CLUSTERING ORDER BY (interval DESC)
  76. 76. Training Data Feature Extraction Model Training Model Testing Test Data Your Data Extract Data To Analyze Train your model to predict Spark MLLib
  77. 77. val ssc = new StreamingContext(new SparkConf()…, Seconds(5)
 val testData = ssc.cassandraTable[String](keyspace,table).map(LabeledPoint.parse)

 val trainingStream = KafkaUtils.createStream[K, V, KDecoder, VDecoder](
 ssc, kafkaParams, topicMap, StorageLevel.MEMORY_ONLY) .map(_._2).map(LabeledPoint.parse) trainingStream.saveToCassandra("ml_keyspace", “raw_training_data")

 val model = new StreamingLinearRegressionWithSGD()
 .setInitialWeights(Vectors.dense(weights))
 .trainOn(trainingStream)
 //Making predictions on testData model .predictOnValues(testData.map(lp => (lp.label, lp.features))) .saveToCassandra("ml_keyspace", "predictions") Spark Streaming ML, Kafka & C*
  78. 78. KillrWeather • Global sensors & satellites collect data • Cassandra stores in sequence • Application reads in sequence Apache Cassandra
  79. 79. Data model should look like your queries
  80. 80. • Store raw data per ID • Store time series data in order: most recent to oldest • Compute and store aggregate data in the stream • Set TTLs on historic data • Get data by ID • Get data for a single date and time • Get data for a window of time • Compute, store and retrieve daily, monthly, annual aggregations Design Data Model to support queries Queries I Need
  81. 81. Data Model • Weather Station Id and Time are unique • Store as many as needed CREATE TABLE daily_temperature ( weather_station text, year int, month int, day int, hour int, temperature double, PRIMARY KEY (weather_station,year,month,day,hour) ); INSERT INTO temperature(weather_station,year,month,day,hour,temperature) VALUES (‘10010:99999’,2005,12,1,7,-5.6); INSERT INTO temperature(weather_station,year,month,day,hour,temperature) VALUES (‘10010:99999’,2005,12,1,8,-5.1); INSERT INTO temperature(weather_station,year,month,day,hour,temperature) VALUES (‘10010:99999’,2005,12,1,9,-4.9); INSERT INTO temperature(weather_station,year,month,day,hour,temperature) VALUES (‘10010:99999’,2005,12,1,10,-5.3);
  82. 82. class HttpNodeGuardian extends ClusterAwareNodeGuardianActor {
 cluster.joinSeedNodes(Vector(..))
 context.actorOf(BalancingPool(PoolSize).props(Props( new KafkaPublisherActor(KafkaHosts, KafkaBatchSendSize))))

 Cluster(context.system) registerOnMemberUp { context.actorOf(BalancingPool(PoolSize).props(Props( new HttpReceiverActor(KafkaHosts, KafkaBatchSendSize)))) } def initialized: Actor.Receive = { … }
 } Load-Balanced Data Ingestion
  83. 83. class HttpDataIngestActor(kafka: ActorRef) extends Actor with ActorLogging {
 implicit val system = context.system
 implicit val askTimeout: Timeout = settings.timeout
 implicit val materializer = ActorFlowMaterializer(
 ActorFlowMaterializerSettings(system))

 val requestHandler: HttpRequest => HttpResponse = {
 case HttpRequest(HttpMethods.POST, Uri.Path("/weather/data"), headers, entity, _) =>
 headers.toSource collect { case s: Source =>
 kafka ! KafkaMessageEnvelope[String, String](topic, group, s.data:_*)
 }
 HttpResponse(200, entity = HttpEntity(MediaTypes.`text/html`)
 }.getOrElse(HttpResponse(404, entity = "Unsupported request"))
 case _: HttpRequest =>
 HttpResponse(400, entity = "Unsupported request")
 }

 Http(system).bind(HttpHost, HttpPort).map { case connection =>
 log.info("Accepted new connection from " + connection.remoteAddress)
 connection.handleWithSyncHandler(requestHandler) }
 def receive : Actor.Receive = {
 case e =>
 }
 } Client: HTTP Receiver Akka Actor
  84. 84. class KafkaProducerActor[K, V](config: ProducerConfig) extends Actor {

 override val supervisorStrategy =
 OneForOneStrategy(maxNrOfRetries = 10, withinTimeRange = 1.minute) {
 case _: ActorInitializationException => Stop
 case _: FailedToSendMessageException => Restart case _: ProducerClosedException => Restart case _: NoBrokersForPartitionException => Escalate case _: KafkaException => Escalate
 case _: Exception => Escalate
 }
 private val producer = new KafkaProducer[K, V](producerConfig)

 override def postStop(): Unit = producer.close()
 def receive = {
 case e: KafkaMessageEnvelope[K,V] => producer.send(e)
 }
 } Client: Kafka Producer Akka Actor
  85. 85. Store raw data on ingestion
  86. 86. val kafkaStream = KafkaUtils.createStream[K, V, KDecoder, VDecoder] (ssc, kafkaParams, topicMap, StorageLevel.DISK_ONLY_2)
 .map(transform)
 .map(RawWeatherData(_))

 /** Saves the raw data to Cassandra. */
 kafkaStream.saveToCassandra(keyspace, raw_ws_data) Store Raw Data From Kafka Stream To C* /** Now proceed with computations from the same stream.. */ kafkaStream… Now we can replay on failure for later computation, etc
  87. 87. CREATE  TABLE  weather.raw_data  (
      wsid  text,  year  int,  month  int,  day  int,  hour  int,
      temperature  double,  dewpoint  double,  pressure  double,          wind_direction  int,  wind_speed  double,  one_hour_precip              PRIMARY  KEY  ((wsid),  year,  month,  day,  hour)
 )  WITH  CLUSTERING  ORDER  BY  (year  DESC,  month  DESC,  day  DESC,  hour  DESC);   CREATE  TABLE  daily_aggregate_precip  (
      wsid  text,
      year  int,
      month  int,
      day  int,
      precipitation  counter,
      PRIMARY  KEY  ((wsid),  year,  month,  day)
 )  WITH  CLUSTERING  ORDER  BY  (year  DESC,  month  DESC,  day  DESC); Let’s See Our Data Model Again
  88. 88. Gets the partition key: Data Locality Spark C* Connector feeds this to Spark Cassandra Counter column in our schema, no expensive `reduceByKey` needed. Simply let C* do it: not expensive and fast. Efficient Stream Computation class KafkaStreamingActor(kafkaPm: Map[String, String], ssc: StreamingContext, ws: WeatherSettings) extends AggregationActor {
 import settings._
 val kafkaStream = KafkaUtils.createStream[String, String, StringDecoder, StringDecoder](
 ssc, kafkaParams, Map(KafkaTopicRaw -> 1), StorageLevel.DISK_ONLY_2)
 .map(_._2.split(","))
 .map(RawWeatherData(_))

 kafkaStream.saveToCassandra(CassandraKeyspace, CassandraTableRaw)
 /** RawWeatherData: wsid, year, month, day, oneHourPrecip */
 kafkaStream.map(hour => (hour.wsid, hour.year, hour.month, hour.day, hour.oneHourPrecip))
 .saveToCassandra(CassandraKeyspace, CassandraTableDailyPrecip)

 /** Now the [[StreamingContext]] can be started. */
 context.parent ! OutputStreamInitialized

 def receive : Actor.Receive = {…} }
  89. 89. /** For a given weather station, calculates annual cumulative precip - or year to date. */
 class PrecipitationActor(ssc: StreamingContext, settings: WeatherSettings) extends AggregationActor {

 def receive : Actor.Receive = {
 case GetPrecipitation(wsid, year) => cumulative(wsid, year, sender)
 case GetTopKPrecipitation(wsid, year, k) => topK(wsid, year, k, sender)
 }

 /** Computes annual aggregation.Precipitation values are 1 hour deltas from the previous. */
 def cumulative(wsid: String, year: Int, requester: ActorRef): Unit =
 ssc.cassandraTable[Double](keyspace, dailytable)
 .select("precipitation")
 .where("wsid = ? AND year = ?", wsid, year)
 .collectAsync()
 .map(AnnualPrecipitation(_, wsid, year)) pipeTo requester

 /** Returns the 10 highest temps for any station in the `year`. */
 def topK(wsid: String, year: Int, k: Int, requester: ActorRef): Unit = {
 val toTopK = (aggregate: Seq[Double]) => TopKPrecipitation(wsid, year,
 ssc.sparkContext.parallelize(aggregate).top(k).toSeq)

 ssc.cassandraTable[Double](keyspace, dailytable)
 .select("precipitation")
 .where("wsid = ? AND year = ?", wsid, year)
 .collectAsync().map(toTopK) pipeTo requester
 }
 }
  90. 90. class TemperatureActor(sc: SparkContext, settings: WeatherSettings) extends AggregationActor {
 import akka.pattern.pipe
 def receive: Actor.Receive = {
 case e: GetMonthlyHiLowTemperature => highLow(e, sender)
 }

 def highLow(e: GetMonthlyHiLowTemperature, requester: ActorRef): Unit =
 sc.cassandraTable[DailyTemperature](keyspace, daily_temperature_aggr)
 .where("wsid = ? AND year = ? AND month = ?", e.wsid, e.year, e.month)
 .collectAsync()
 .map(MonthlyTemperature(_, e.wsid, e.year, e.month)) pipeTo requester } C* data is automatically sorted by most recent - due to our data model. Additional Spark or collection sort not needed. Efficient Batch Analytics
  91. 91. 99 @helenaedelson github.com/helena slideshare.net/helenaedelson
  92. 92. Learn More Online and at Cassandra Summit https://academy.datastax.com/
