GumGum: Multi-Region Cassandra in AWS
CASSANDRA SUMMIT 2015CASSANDRA SUMMIT 2015
Mario Lazaro
September 24th 2015
#CassandraSummit2015
MULTI-REGION CASSANDRA IN...
WHOAMIWHOAMI
Mario Cerdan Lazaro
Big Data Engineer
Born and raised in Spain
Joined GumGum 18 months ago
About a year and a...
#5 Ad Platform in the U.S
10B impressions / month
2,000 brand-safe premium
publisher partners
1B+ global unique visitors
D...
AGENDAAGENDA
Old cluster
International Expansion
Challenges
Testing
Modus Operandi
Tips
Questions & Answers

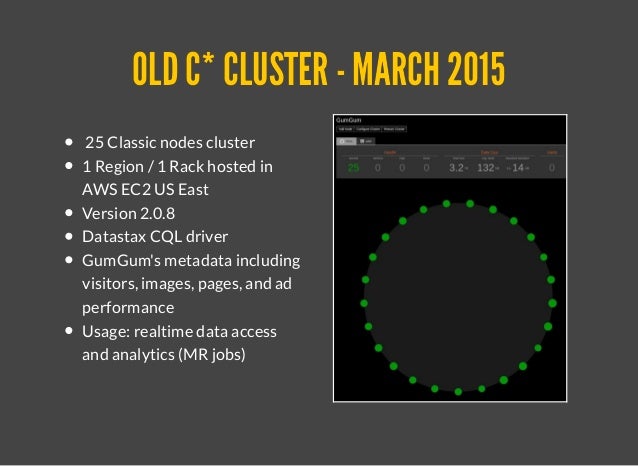

25 Classic nodes cluster
1 Region / 1 Rack hosted in
AWS EC2 US East
Version 2.0.8
Datastax CQL driver
GumGum's metadata i...
OLD C* CLUSTER - REALTIME USE CASEOLD C* CLUSTER - REALTIME USE CASE
Billions of rows
Heavy read workload
60/40
TTLs every...

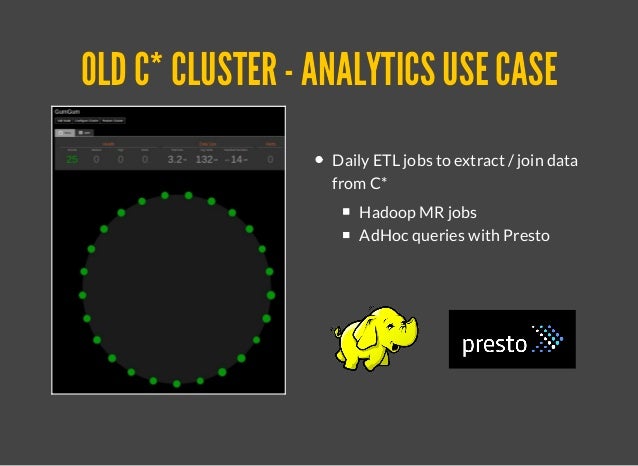

OLD C* CLUSTER - ANALYTICS USE CASEOLD C* CLUSTER - ANALYTICS USE CASE
Daily ETL jobs to extract / join data
from C*
​Hado...
INTERNATIONAL EXPANSIONINTERNATIONAL EXPANSION

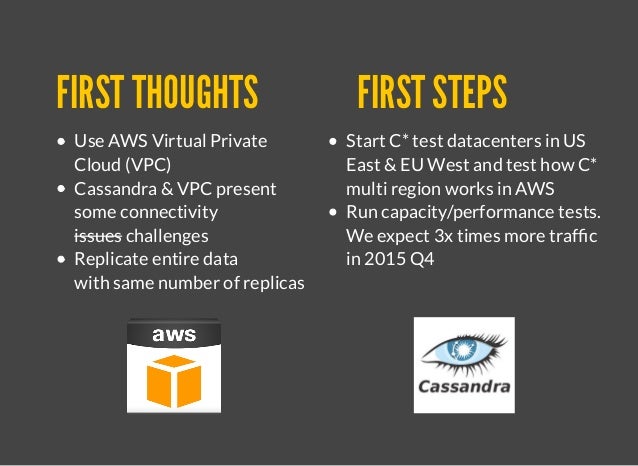

FIRST STEPSFIRST STEPS
Start C* test datacenters in US
East & EU West and test how C*
multi region works in AWS
Run capaci...
TOO GOOD TO BE TRUE ...TOO GOOD TO BE TRUE ...
CHALLENGESCHALLENGES
Problems between Cassandra in EC2
Classic / VPC and Datastax Java
driver
EC2MultiRegionSnitch uses pu...
Datastax Java Driver Load Balancing
Multiple choices
DCAware + TokenAware
Datastax Java Driver Load Balancing
Multiple cho...

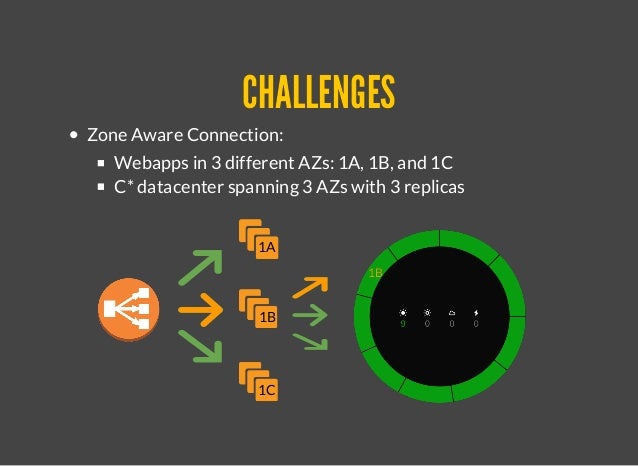

Zone Aware Connection:
Webapps in 3 different AZs: 1A, 1B, and 1C
C* datacenter spanning 3 AZs with 3 replicas
CHALLENGESC...

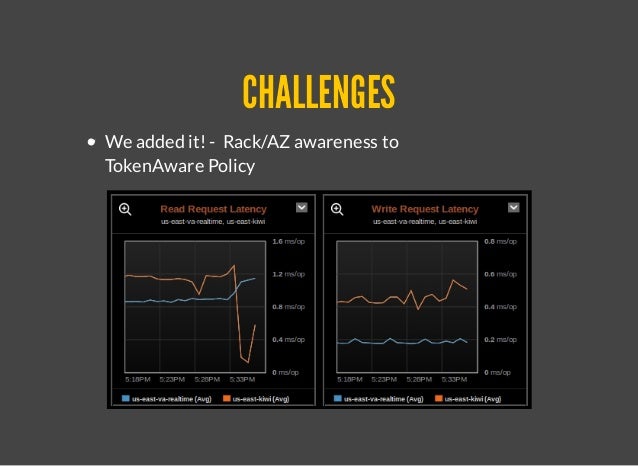

We added it! - Rack/AZ awareness to
TokenAware Policy
CHALLENGESCHALLENGES
CHALLENGESCHALLENGES

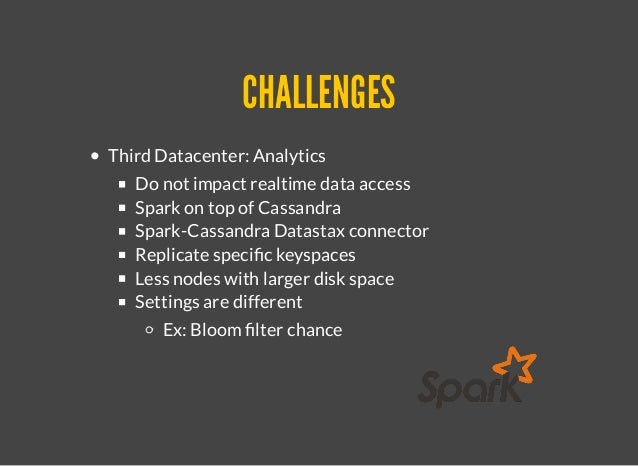

Third Datacenter: Analytics
Do not impact realtime data access
Spark on top of Cassandra
Spark-Cassan...

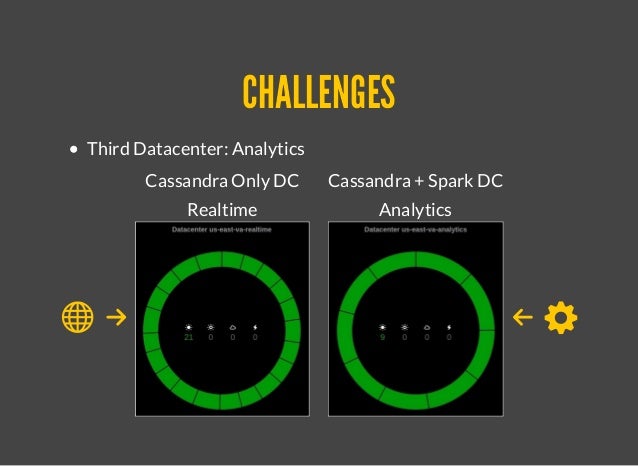

CHALLENGESCHALLENGES
Third Datacenter: Analytics
Cassandra Only DC
Realtime
Cassandra + Spark DC
Analytics

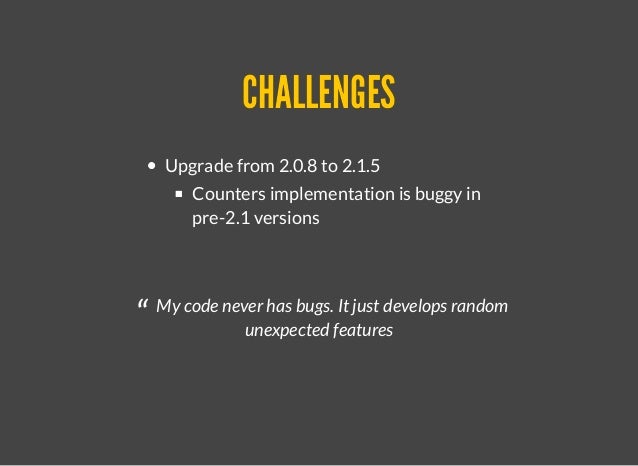

CHALLENGESCHALLENGES
Upgrade from 2.0.8 to 2.1.5
Counters implementation is buggy in
pre-2.1 versions
“ My code never has ...
CHALLENGESCHALLENGES
“ To choose, or not to choose VNodes. That is the question.
(M. Lazaro, 1990 - 2500)
Previous DC usin...
TESTINGTESTING
TESTINGTESTING
Testing requires creating and modifying
many C* nodes
Create and configuring a C* cluster
is time-consuming ...
TESTING - PERFORMANCETESTING - PERFORMANCE
Performance tests using new
Cassandra 2.1 Stress Tool:
Recreate GumGum metadata...
TESTING - PERFORMANCETESTING - PERFORMANCE
Main worry:
Latency and replication overseas
Use LOCAL_X consistency levels in ...
TESTING - PERFORMANCETESTING - PERFORMANCE
Main worries:
Latency
TESTING - INSTANCE TYPETESTING - INSTANCE TYPE
Test all kind of instance types. We decided to
go with r3.2xlarge machines ...
TESTING - UPGRADETESTING - UPGRADE
Upgrade C* Datacenter from 2.0.8 to 2.1.5
Both versions can cohabit in the same DC
New ...
MODUS OPERANDIMODUS OPERANDI

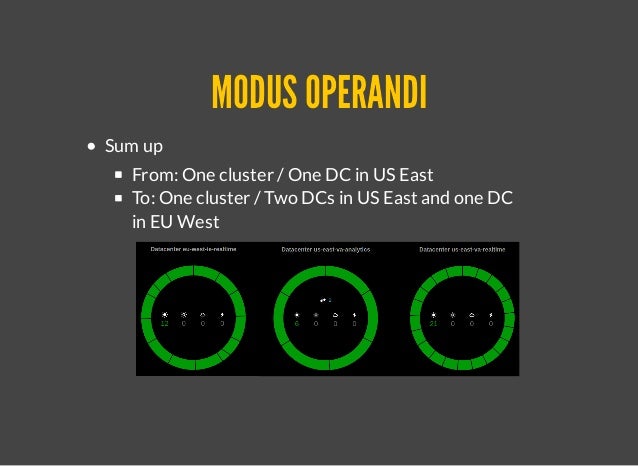

MODUS OPERANDIMODUS OPERANDI
Sum up
From: One cluster / One DC in US East
To: One cluster / Two DCs in US East and one DC
...
MODUS OPERANDIMODUS OPERANDI
First step:
Upgrade old cluster snitch from EC2Snitch to
EC2MultiRegionSnitch
Upgrade clients...
MODUS OPERANDIMODUS OPERANDI

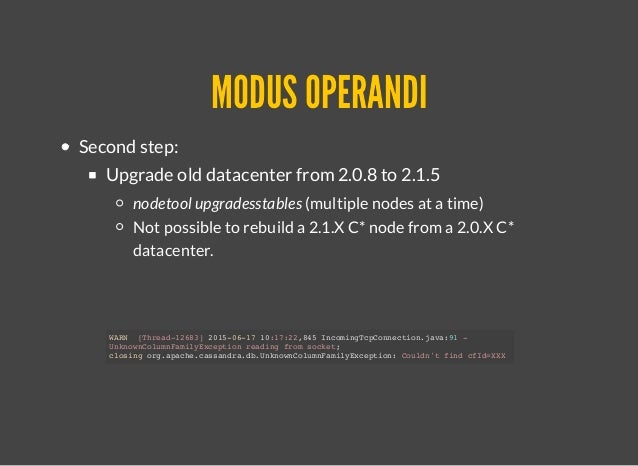

Second step:
Upgrade old datacenter from 2.0.8 to 2.1.5
nodetool upgradesstables (multiple no...
MODUS OPERANDIMODUS OPERANDI

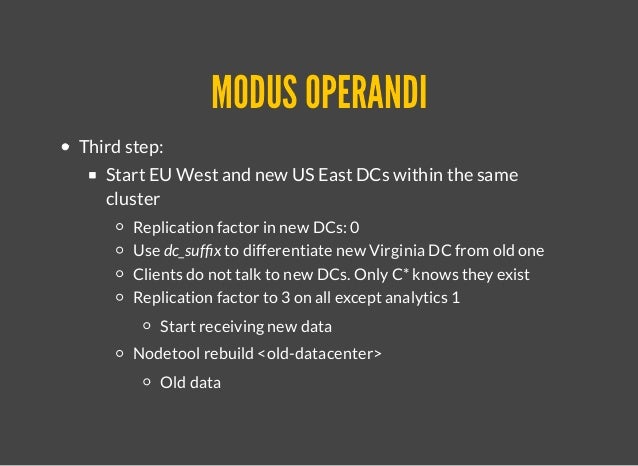

Third step:
Start EU West and new US East DCs within the same
cluster
Replication factor in n...

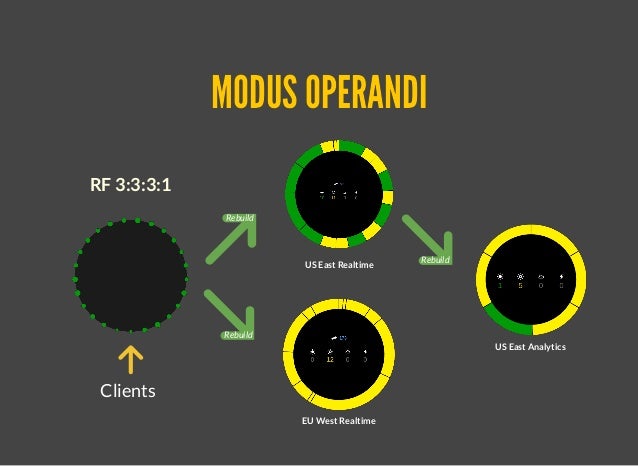

MODUS OPERANDIMODUS OPERANDI
RF 3
Clients
RF 3:0:0:0RF 3:3:3:1
US East Realtime
EU West Realtime
US East Analytics
Rebuild...

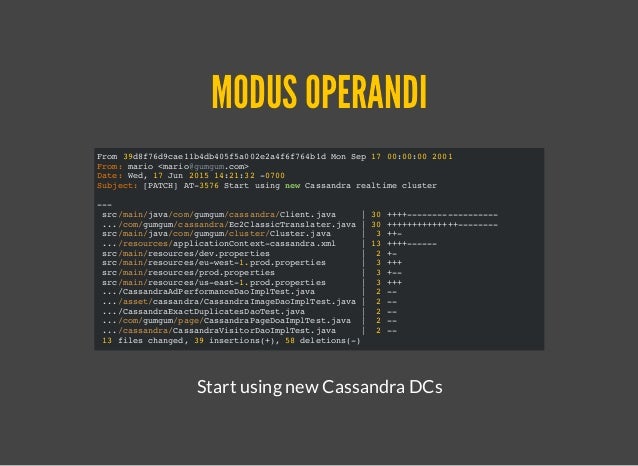

From 39d8f76d9cae11b4db405f5a002e2a4f6f764b1d Mon Sep 17 00:00:00 2001
From: mario <mario@gumgum.com>
Date: Wed, 17 Jun 20...
RF 3:3:3:1
MODUS OPERANDIMODUS OPERANDI
Clients
US East Realtime
EU West Realtime
US East Analytics
RF 0:3:3:1
MODUS OPERANDIMODUS OPERANDI
Clients
US East Realtime
EU West Realtime
US East Analytics
RF 0:3:3:1
RF 3:3:1Decomission
TIPSTIPS

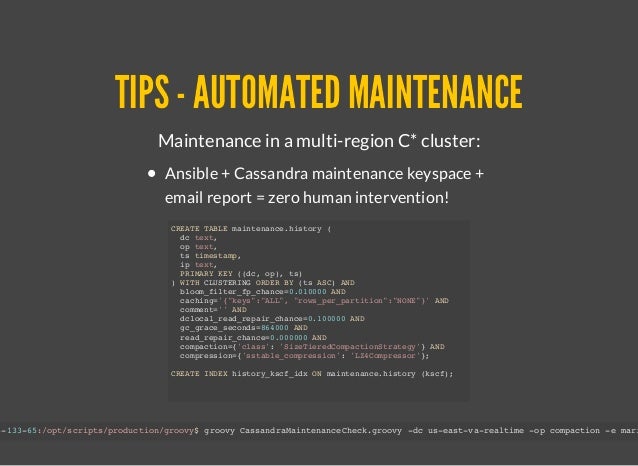

TIPS - AUTOMATED MAINTENANCETIPS - AUTOMATED MAINTENANCE
Maintenance in a multi-region C* cluster:
Ansible + Cassandra mai...

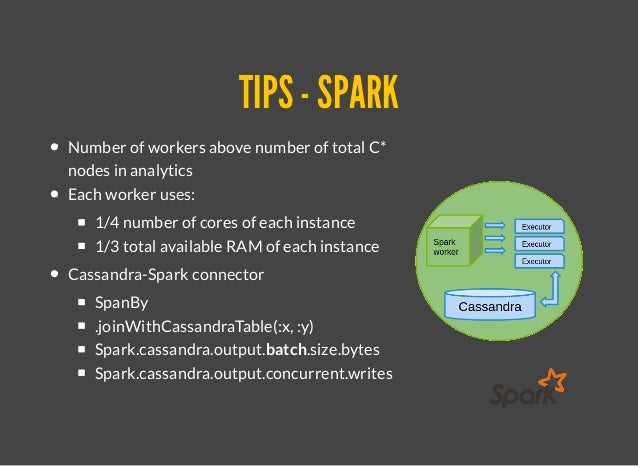

TIPS - SPARKTIPS - SPARK
Number of workers above number of total C*
nodes in analytics
Each worker uses:
1/4 number of cor...
val conf = new SparkConf()
.set("spark.cassandra.connection.host", cassandraNodes)
.set("spark.cassandra.connection.local_...
SINCE C* IN EU WEST ...SINCE C* IN EU WEST ...
US West Datacenter!
EU West DC US East DC Analytics DC US West DC
Q&AQ&A
GumGum is hiring!
http://gumgum.com/careers

Upcoming SlideShare

Loading in …5

×

  1. 1. CASSANDRA SUMMIT 2015CASSANDRA SUMMIT 2015 Mario Lazaro September 24th 2015 #CassandraSummit2015 MULTI-REGION CASSANDRA IN AWSMULTI-REGION CASSANDRA IN AWS
  2. 2. WHOAMIWHOAMI Mario Cerdan Lazaro Big Data Engineer Born and raised in Spain Joined GumGum 18 months ago About a year and a half experience with Cassandra
  3. 3. #5 Ad Platform in the U.S 10B impressions / month 2,000 brand-safe premium publisher partners 1B+ global unique visitors Daily inventory Impressions processed - 213M Monthly Image Impressions processed - 2.6B 123 employees in seven offices

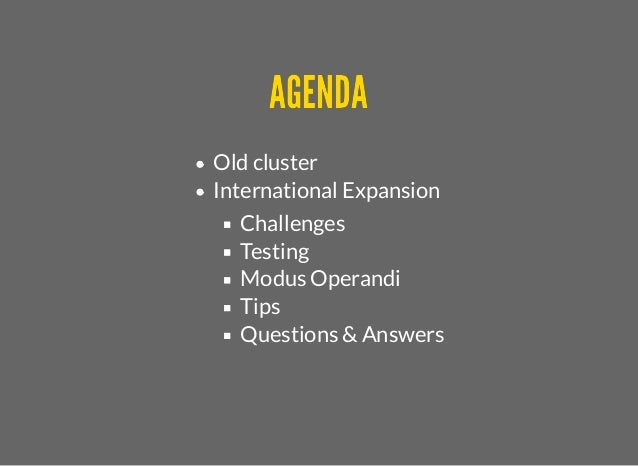

  4. 4. AGENDAAGENDA Old cluster International Expansion Challenges Testing Modus Operandi Tips Questions & Answers
  5. 5. 25 Classic nodes cluster 1 Region / 1 Rack hosted in AWS EC2 US East Version 2.0.8 Datastax CQL driver GumGum's metadata including visitors, images, pages, and ad performance Usage: realtime data access and analytics (MR jobs) OLD C* CLUSTER - MARCH 2015OLD C* CLUSTER - MARCH 2015
  6. 6. OLD C* CLUSTER - REALTIME USE CASEOLD C* CLUSTER - REALTIME USE CASE Billions of rows Heavy read workload 60/40 TTLs everywhere - Tombstones Heavy and critical use of counters RTB - Read Latency constraints (total execution time ~50 ms)
  7. 7. OLD C* CLUSTER - ANALYTICS USE CASEOLD C* CLUSTER - ANALYTICS USE CASE Daily ETL jobs to extract / join data from C* ​Hadoop MR jobs AdHoc queries with Presto
  8. 8. INTERNATIONAL EXPANSIONINTERNATIONAL EXPANSION
  9. 9. FIRST STEPSFIRST STEPS Start C* test datacenters in US East & EU West and test how C* multi region works in AWS Run capacity/performance tests. We expect 3x times more traffic in 2015 Q4 FIRST THOUGHTSFIRST THOUGHTS Use AWS Virtual Private Cloud (VPC) Cassandra & VPC present some connectivity issues challenges Replicate entire data with same number of replicas
  10. 10. TOO GOOD TO BE TRUE ...TOO GOOD TO BE TRUE ...

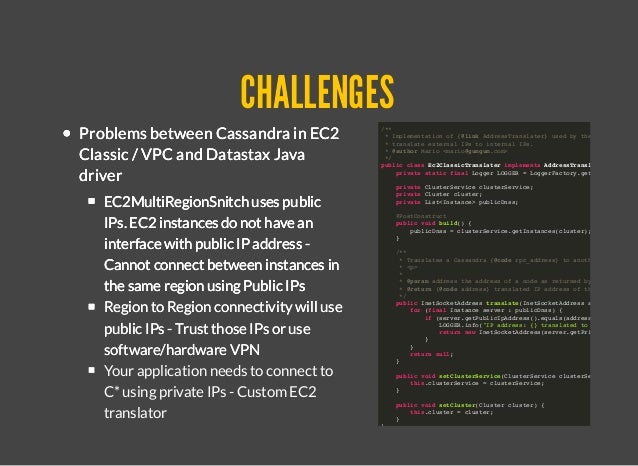

  11. 11. CHALLENGESCHALLENGES Problems between Cassandra in EC2 Classic / VPC and Datastax Java driver EC2MultiRegionSnitch uses public IPs. EC2 instances do not have an interface with public IP address - Cannot connect between instances in the same region using Public IPs /** * Implementation of {@link AddressTranslater} used by the driver that * translate external IPs to internal IPs. * @author Mario <mario@gumgum.com> */ public class Ec2ClassicTranslater implements AddressTranslater { private static final Logger LOGGER = LoggerFactory.getLogger(Ec2Cla private ClusterService clusterService; private Cluster cluster; private List<Instance> publicDnss; @PostConstruct public void build() { publicDnss = clusterService.getInstances(cluster); } /** * Translates a Cassandra {@code rpc_address} to another address if * <p> * * @param address the address of a node as returned by Cassandra. * @return {@code address} translated IP address of the source. */ public InetSocketAddress translate(InetSocketAddress address) { for (final Instance server : publicDnss) { if (server.getPublicIpAddress().equals(address.getHostStrin LOGGER.info("IP address: {} translated to {}", address. return new InetSocketAddress(server.getPrivateIpAddress } } return null; } public void setClusterService(ClusterService clusterService) { this.clusterService = clusterService; } public void setCluster(Cluster cluster) { this.cluster = cluster; } } Problems between Cassandra in EC2 Classic / VPC and Datastax Java driver EC2MultiRegionSnitch uses public IPs. EC2 instances do not have an interface with public IP address - Cannot connect between instances in the same region using Public IPs Region to Region connectivity will use public IPs - Trust those IPs or use software/hardware VPN Problems between Cassandra in EC2 Classic / VPC and Datastax Java driver EC2MultiRegionSnitch uses public IPs. EC2 instances do not have an interface with public IP address - Cannot connect between instances in the same region using Public IPs Region to Region connectivity will use public IPs - Trust those IPs or use software/hardware VPN Your application needs to connect to C* using private IPs - Custom EC2 translator
  12. 12. Datastax Java Driver Load Balancing Multiple choices DCAware + TokenAware Datastax Java Driver Load Balancing Multiple choices DCAware + TokenAware + ? Datastax Java Driver Load Balancing Multiple choices CHALLENGES “ Clients in one AZ attempt to always communicate with C* nodes in the same AZ. We call this zone-aware connections. This feature is built into , Netflix’s C* Java client library.Astyanax
  13. 13. Zone Aware Connection: Webapps in 3 different AZs: 1A, 1B, and 1C C* datacenter spanning 3 AZs with 3 replicas CHALLENGESCHALLENGES 1A 1B 1C 1B1B
  14. 14. We added it! - Rack/AZ awareness to TokenAware Policy CHALLENGESCHALLENGES
  15. 15. CHALLENGESCHALLENGES Third Datacenter: Analytics Do not impact realtime data access Spark on top of Cassandra Spark-Cassandra Datastax connector Replicate specific keyspaces Less nodes with larger disk space Settings are different Ex: Bloom filter chance
  16. 16. CHALLENGESCHALLENGES Third Datacenter: Analytics Cassandra Only DC Realtime Cassandra + Spark DC Analytics
  17. 17. CHALLENGESCHALLENGES Upgrade from 2.0.8 to 2.1.5 Counters implementation is buggy in pre-2.1 versions “ My code never has bugs. It just develops random unexpected features
  18. 18. CHALLENGESCHALLENGES “ To choose, or not to choose VNodes. That is the question. (M. Lazaro, 1990 - 2500) Previous DC using Classic Nodes Works with MR jobs Complexity for adding/removing nodes Manual manage token ranges New DCs will use VNodes Apache Spark + Spark Cassandra Datastax connector Easy to add/remove new nodes as traffic increases
  19. 19. TESTINGTESTING

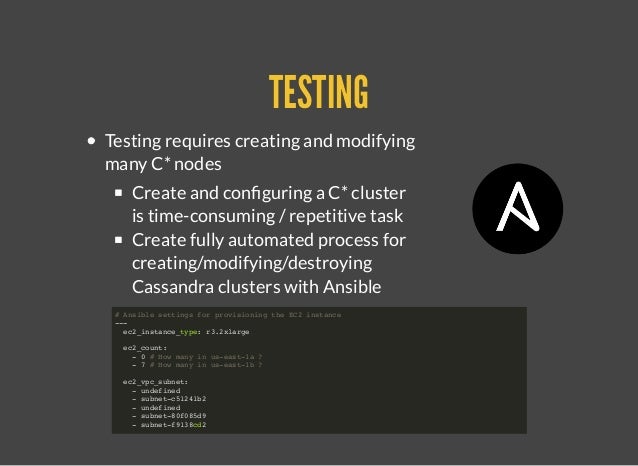

  20. 20. TESTINGTESTING Testing requires creating and modifying many C* nodes Create and configuring a C* cluster is time-consuming / repetitive task Create fully automated process for creating/modifying/destroying Cassandra clusters with Ansible # Ansible settings for provisioning the EC2 instance --- ec2_instance_type: r3.2xlarge ec2_count: - 0 # How many in us-east-1a ? - 7 # How many in us-east-1b ? ec2_vpc_subnet: - undefined - subnet-c51241b2 - undefined - subnet-80f085d9 - subnet-f9138cd2 ec2_sg: - va-ops - va-cassandra-realtime-private

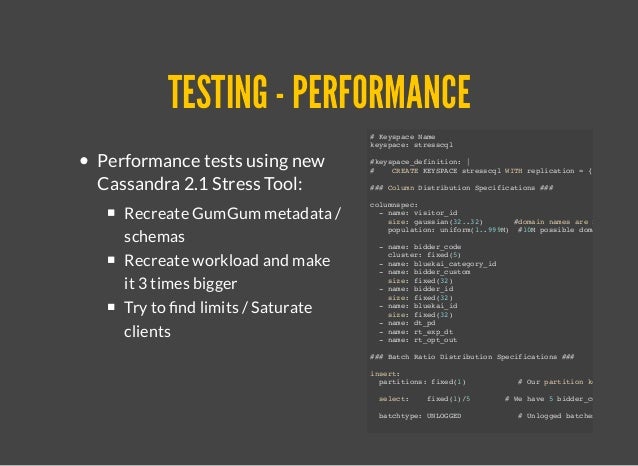

  21. 21. TESTING - PERFORMANCETESTING - PERFORMANCE Performance tests using new Cassandra 2.1 Stress Tool: Recreate GumGum metadata / schemas Recreate workload and make it 3 times bigger Try to find limits / Saturate clients # Keyspace Name keyspace: stresscql #keyspace_definition: | # CREATE KEYSPACE stresscql WITH replication = {'class': #' ### Column Distribution Specifications ### columnspec: - name: visitor_id size: gaussian(32..32) #domain names are relatively population: uniform(1..999M) #10M possible domains to pic - name: bidder_code cluster: fixed(5) - name: bluekai_category_id - name: bidder_custom size: fixed(32) - name: bidder_id size: fixed(32) - name: bluekai_id size: fixed(32) - name: dt_pd - name: rt_exp_dt - name: rt_opt_out ### Batch Ratio Distribution Specifications ### insert: partitions: fixed(1) # Our partition key is the v select: fixed(1)/5 # We have 5 bidder_code per dom batchtype: UNLOGGED # Unlogged batches # # A list of queries you wish to run against the schema #

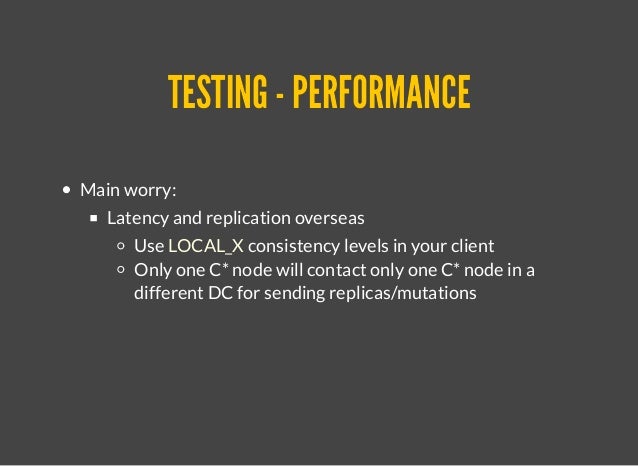

  22. 22. TESTING - PERFORMANCETESTING - PERFORMANCE Main worry: Latency and replication overseas Use LOCAL_X consistency levels in your client Only one C* node will contact only one C* node in a different DC for sending replicas/mutations

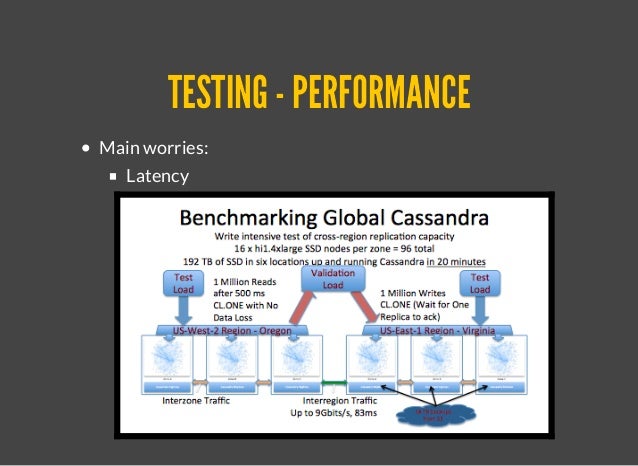

  23. 23. TESTING - PERFORMANCETESTING - PERFORMANCE Main worries: Latency

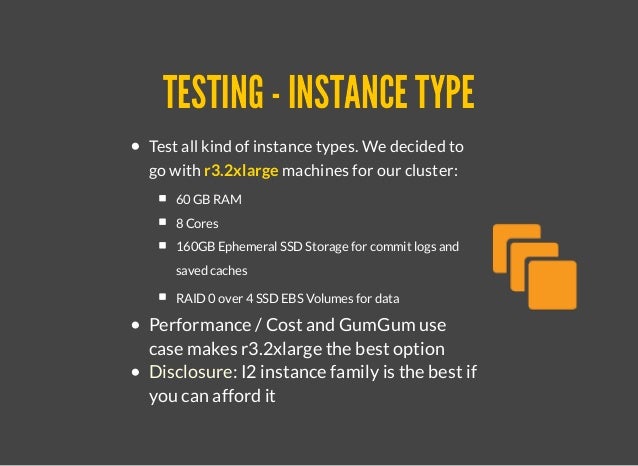

  24. 24. TESTING - INSTANCE TYPETESTING - INSTANCE TYPE Test all kind of instance types. We decided to go with r3.2xlarge machines for our cluster: 60 GB RAM 8 Cores 160GB Ephemeral SSD Storage for commit logs and saved caches RAID 0 over 4 SSD EBS Volumes for data Performance / Cost and GumGum use case makes r3.2xlarge the best option Disclosure: I2 instance family is the best if you can afford it

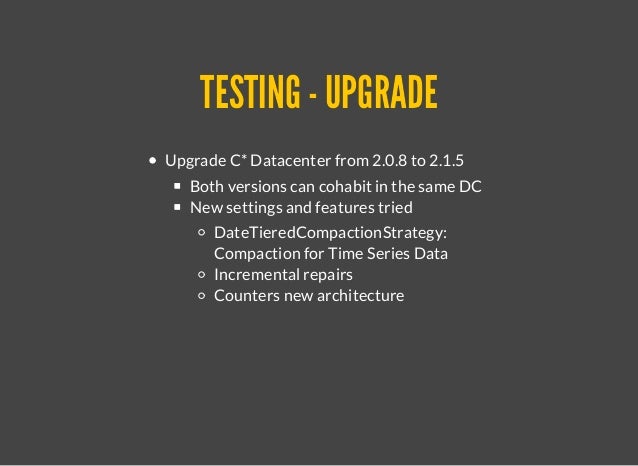

  25. 25. TESTING - UPGRADETESTING - UPGRADE Upgrade C* Datacenter from 2.0.8 to 2.1.5 Both versions can cohabit in the same DC New settings and features tried ​DateTieredCompactionStrategy: Compaction for Time Series Data Incremental repairs Counters new architecture
  26. 26. MODUS OPERANDIMODUS OPERANDI
  27. 27. MODUS OPERANDIMODUS OPERANDI Sum up From: One cluster / One DC in US East To: One cluster / Two DCs in US East and one DC in EU West

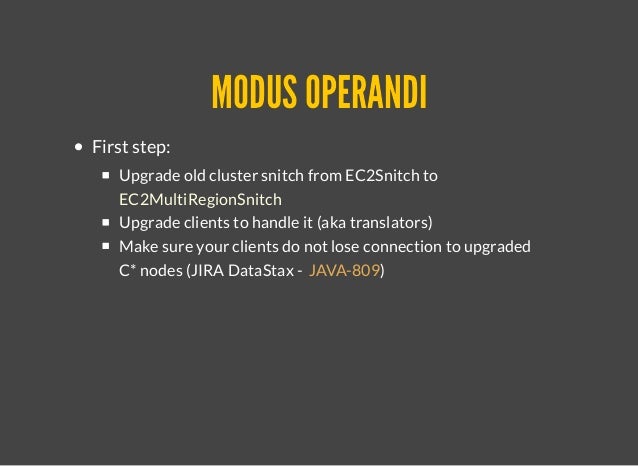

  28. 28. MODUS OPERANDIMODUS OPERANDI First step: Upgrade old cluster snitch from EC2Snitch to EC2MultiRegionSnitch Upgrade clients to handle it (aka translators) Make sure your clients do not lose connection to upgraded C* nodes (JIRA DataStax - )JAVA-809
  29. 29. MODUS OPERANDIMODUS OPERANDI Second step: Upgrade old datacenter from 2.0.8 to 2.1.5 nodetool upgradesstables (multiple nodes at a time) Not possible to rebuild a 2.1.X C* node from a 2.0.X C* datacenter. rebuild WARN [Thread-12683] 2015-06-17 10:17:22,845 IncomingTcpConnection.java:91 - UnknownColumnFamilyException reading from socket; closing org.apache.cassandra.db.UnknownColumnFamilyException: Couldn't find cfId=XXX
  30. 30. MODUS OPERANDIMODUS OPERANDI Third step: Start EU West and new US East DCs within the same cluster Replication factor in new DCs: 0 Use dc_suffix to differentiate new Virginia DC from old one Clients do not talk to new DCs. Only C* knows they exist Replication factor to 3 on all except analytics 1 ​​Start receiving new data Nodetool rebuild <old-datacenter> ​Old data
  31. 31. MODUS OPERANDIMODUS OPERANDI RF 3 Clients RF 3:0:0:0RF 3:3:3:1 US East Realtime EU West Realtime US East Analytics Rebuild Rebuild Rebuild
  32. 32. From 39d8f76d9cae11b4db405f5a002e2a4f6f764b1d Mon Sep 17 00:00:00 2001 From: mario <mario@gumgum.com> Date: Wed, 17 Jun 2015 14:21:32 -0700 Subject: [PATCH] AT-3576 Start using new Cassandra realtime cluster --- src/main/java/com/gumgum/cassandra/Client.java | 30 ++++------------------ .../com/gumgum/cassandra/Ec2ClassicTranslater.java | 30 ++++++++++++++-------- src/main/java/com/gumgum/cluster/Cluster.java | 3 ++- .../resources/applicationContext-cassandra.xml | 13 ++++------ src/main/resources/dev.properties | 2 +- src/main/resources/eu-west-1.prod.properties | 3 +++ src/main/resources/prod.properties | 3 +-- src/main/resources/us-east-1.prod.properties | 3 +++ .../CassandraAdPerformanceDaoImplTest.java | 2 -- .../asset/cassandra/CassandraImageDaoImplTest.java | 2 -- .../CassandraExactDuplicatesDaoTest.java | 2 -- .../com/gumgum/page/CassandraPageDoaImplTest.java | 2 -- .../cassandra/CassandraVisitorDaoImplTest.java | 2 -- 13 files changed, 39 insertions(+), 58 deletions(-) MODUS OPERANDIMODUS OPERANDI Start using new Cassandra DCs

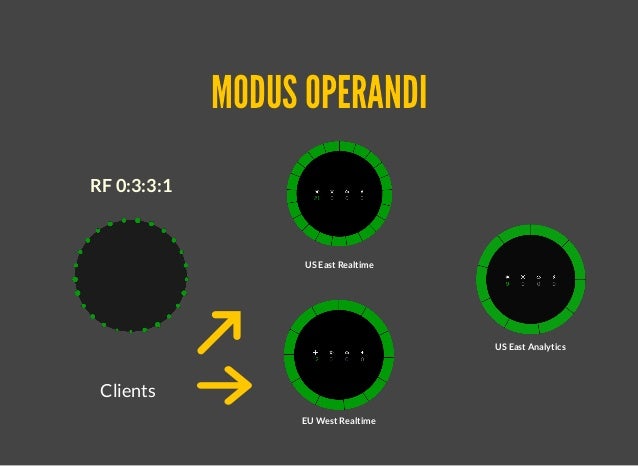

  33. 33. RF 3:3:3:1 MODUS OPERANDIMODUS OPERANDI Clients US East Realtime EU West Realtime US East Analytics RF 0:3:3:1

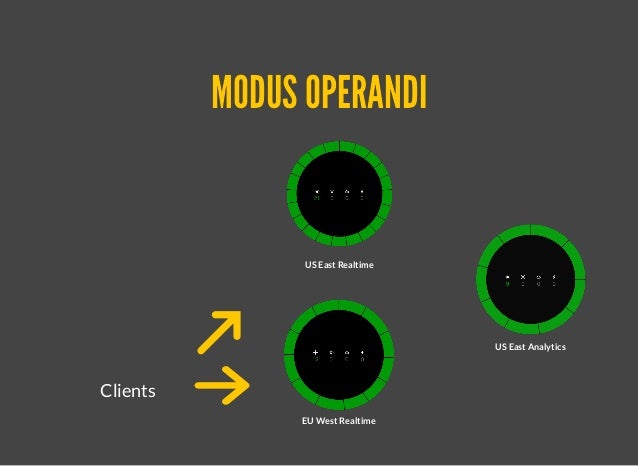

  34. 34. MODUS OPERANDIMODUS OPERANDI Clients US East Realtime EU West Realtime US East Analytics RF 0:3:3:1 RF 3:3:1Decomission
  35. 35. TIPSTIPS
  36. 36. TIPS - AUTOMATED MAINTENANCETIPS - AUTOMATED MAINTENANCE Maintenance in a multi-region C* cluster: Ansible + Cassandra maintenance keyspace + email report = zero human intervention! CREATE TABLE maintenance.history ( dc text, op text, ts timestamp, ip text, PRIMARY KEY ((dc, op), ts) ) WITH CLUSTERING ORDER BY (ts ASC) AND bloom_filter_fp_chance=0.010000 AND caching='{"keys":"ALL", "rows_per_partition":"NONE"}' AND comment='' AND dclocal_read_repair_chance=0.100000 AND gc_grace_seconds=864000 AND read_repair_chance=0.000000 AND compaction={'class': 'SizeTieredCompactionStrategy'} AND compression={'sstable_compression': 'LZ4Compressor'}; CREATE INDEX history_kscf_idx ON maintenance.history (kscf); 3-133-65:/opt/scripts/production/groovy$ groovy CassandraMaintenanceCheck.groovy -dc us-east-va-realtime -op compaction -e mari
  37. 37. TIPS - SPARKTIPS - SPARK Number of workers above number of total C* nodes in analytics Each worker uses: 1/4 number of cores of each instance 1/3 total available RAM of each instance Cassandra-Spark connector ​SpanBy .joinWithCassandraTable(:x, :y) Spark.cassandra.output.batch.size.bytes Spark.cassandra.output.concurrent.writes

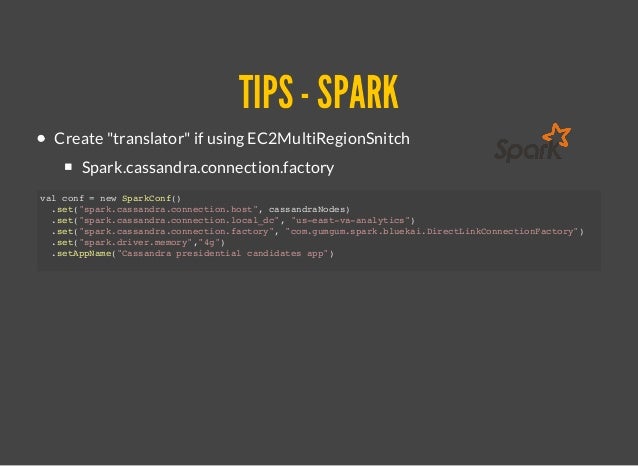

  38. 38. val conf = new SparkConf() .set("spark.cassandra.connection.host", cassandraNodes) .set("spark.cassandra.connection.local_dc", "us-east-va-analytics") .set("spark.cassandra.connection.factory", "com.gumgum.spark.bluekai.DirectLinkConnectionFactory") .set("spark.driver.memory","4g") .setAppName("Cassandra presidential candidates app") TIPS - SPARKTIPS - SPARK Create "translator" if using EC2MultiRegionSnitch Spark.cassandra.connection.factory

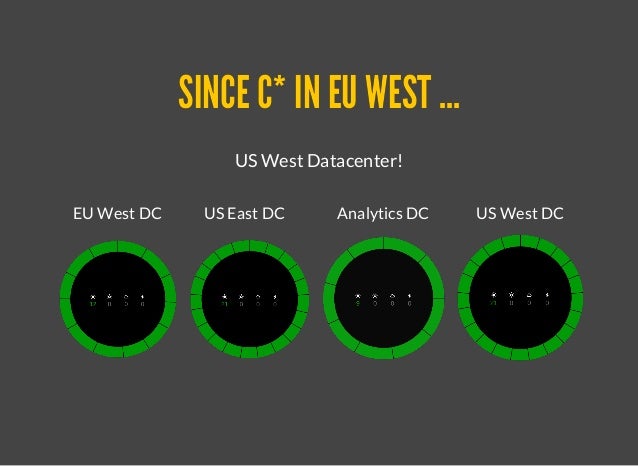

  39. 39. SINCE C* IN EU WEST ...SINCE C* IN EU WEST ... US West Datacenter! EU West DC US East DC Analytics DC US West DC
  40. 40. Q&AQ&A GumGum is hiring! http://gumgum.com/careers
