A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise
We know stuff. And get people excited about it.
Rachel Pedreschi @RachelPedreschi
Patrick McFadin @PatrickMcFadin
A Cassan...

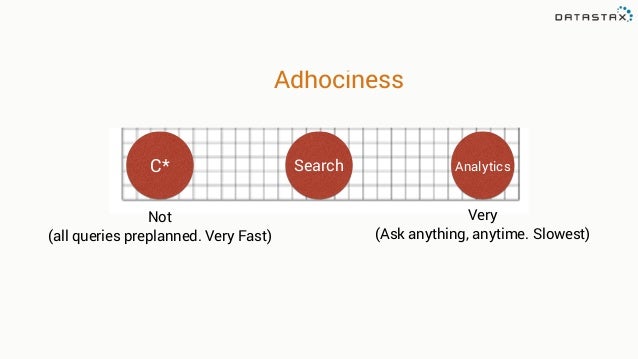

Not

(all queries preplanned. Very Fast)
Very

(Ask anything, anytime. Slowest)

Adhociness
C* Search Analytics

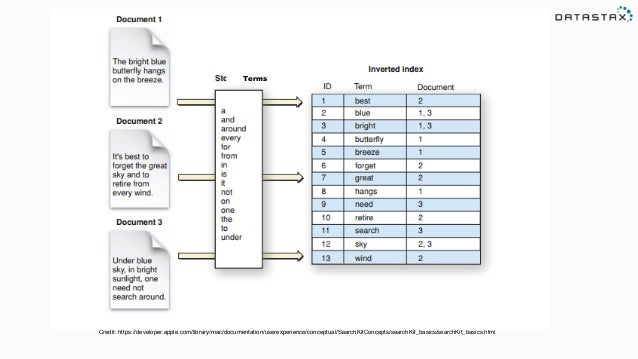

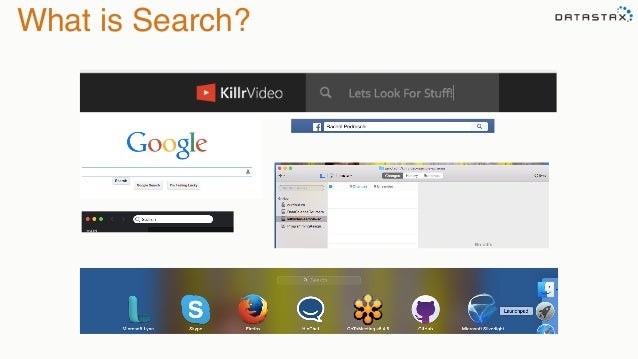

What is Search?

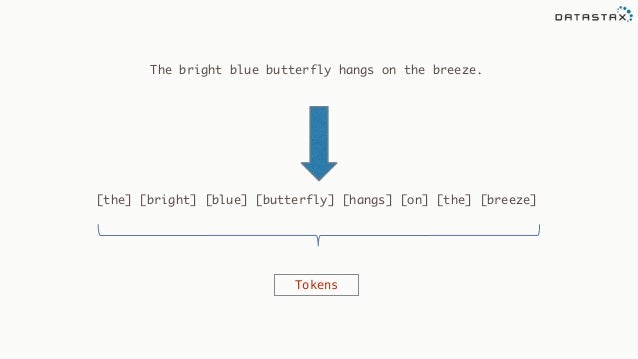

The bright blue butterfly hangs on the breeze.
[the] [bright] [blue] [butterfly] [hangs] [on] [the] [breeze]
Tokens
Credit: https://developer.apple.com/library/mac/documentation/userexperience/conceptual/SearchKitConcepts/searchKit_basics...
It can be lonely for Solr

+ =

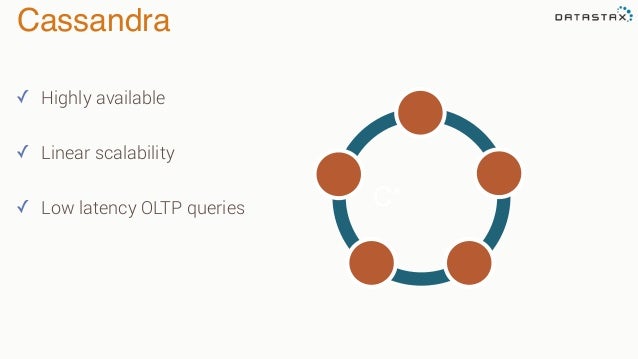

Cassandra
✓ Highly available
✓ Linear scalability
✓ Low latency OLTP queries C*
Like… High Availability

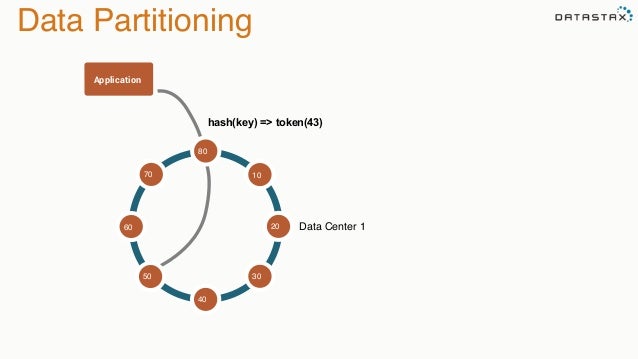

Data Partitioning
Application
Data Center 1
hash(key) => token(43)
80
10
3050
70
60
40
20

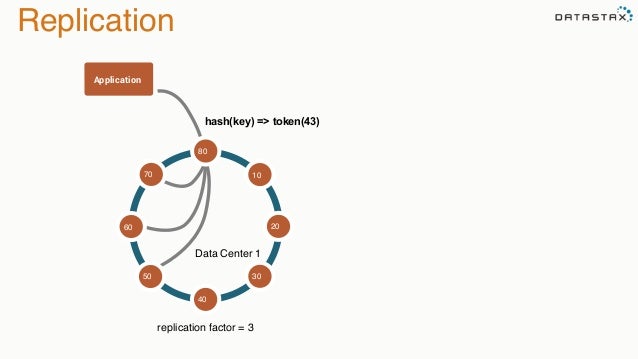

Replication
Data Center 1
hash(key) => token(43)
replication factor = 3
80
10
3050
70
60
40
20
Application

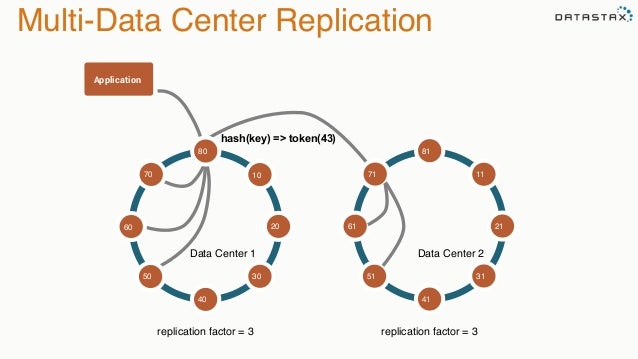

Multi-Data Center Replication
Data Center 1
hash(key) => token(43)
replication factor = 3
80
10
3050
70
60
40
20
Data Cent...

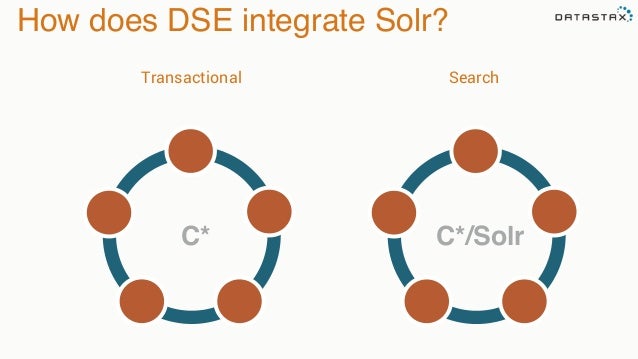

How does DSE integrate Solr?
C* C*/Solr
Transactional Search

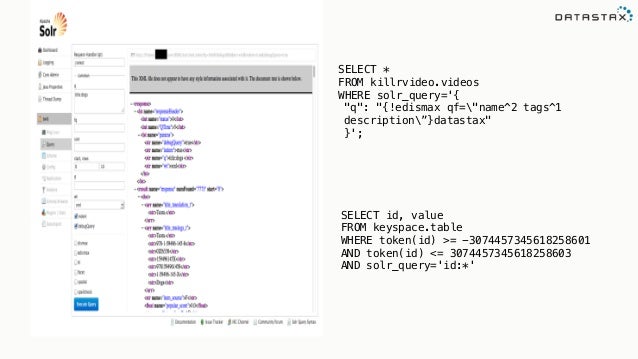

SELECT *
FROM killrvideo.videos
WHERE solr_query='{
"q": "{!edismax qf="name^2 tags^1
description”}datastax"
}';
SELECT id...

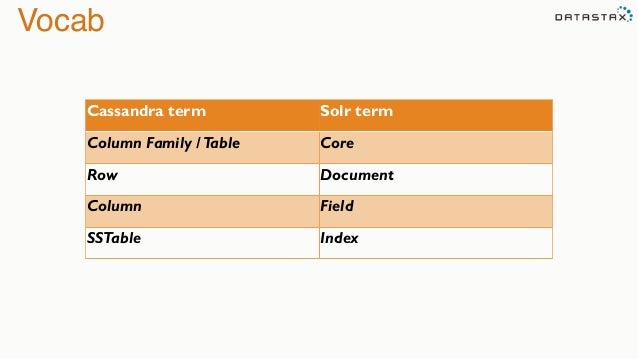

Vocab
Cassandra term Solr term
Column Family /Table Core
Row Document
Column Field
SSTable Index
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
18
Node me...
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
19
Node me...
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
… … … …
20

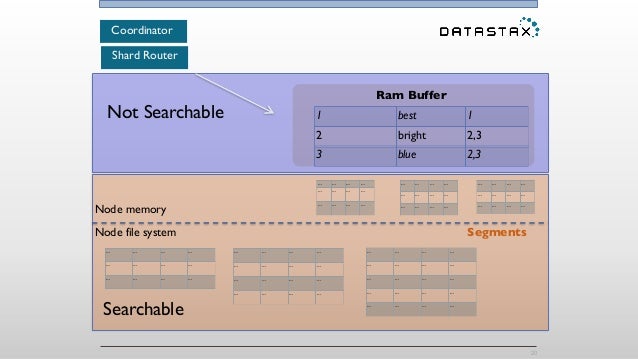

Node memory
Node file system
1 best 1
2 bright ...

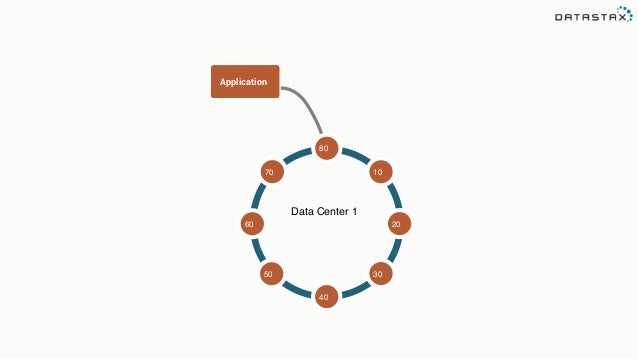

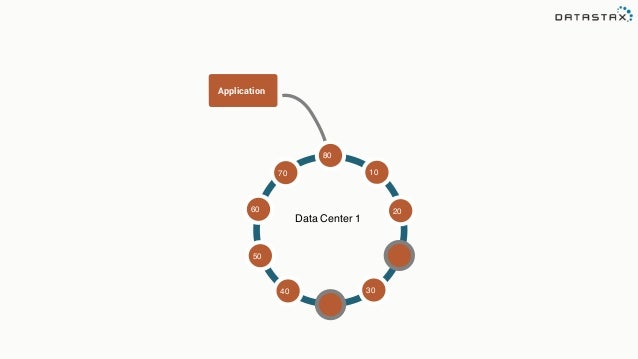

And… Scalability
80
10
3050
70
60
40
20
Data Center 1
Application
Data Center 1
80
10
30
50
70
60
40
20
Application

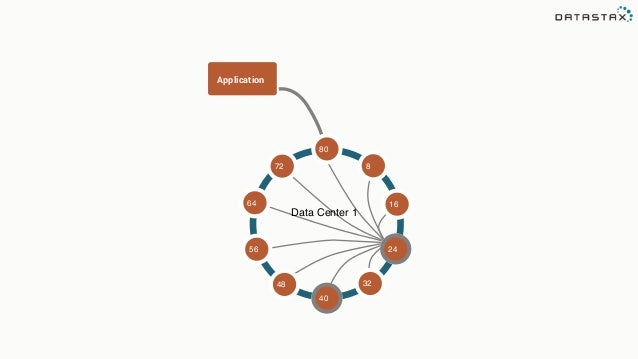

Data Center 1
80
8
32
56
72
64
48
16
24
4040
24
Application
Even… Improved Performance

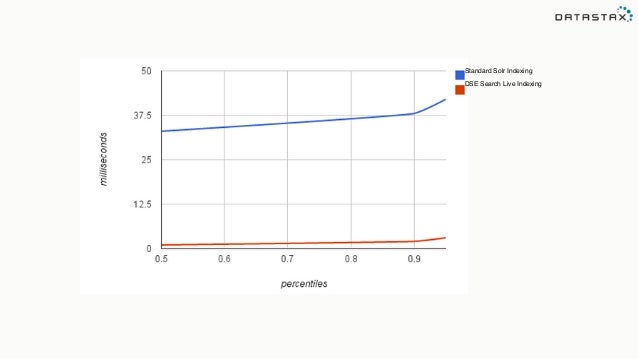

Standard Solr Indexing
DSE Search Live Indexing
Spark and Cassandra
Great combo
Store a ton of data Analyze a ton of data

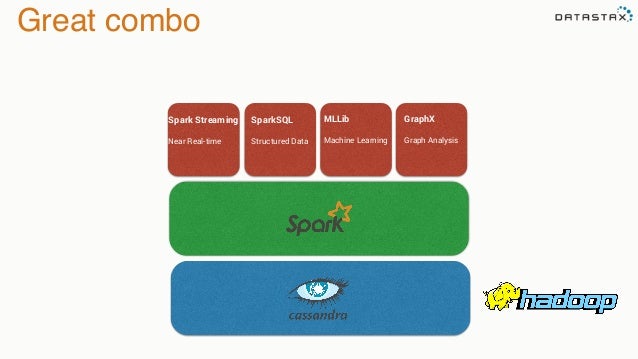

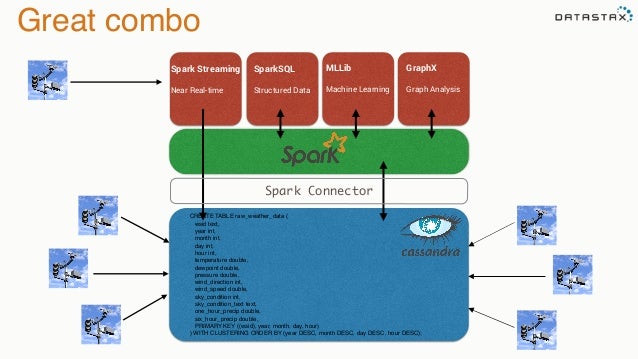

Great combo
Spark Streaming
Near Real-time
SparkSQL
Structured Data
MLLib
Machine Learning
GraphX
Graph Analysis
Spark Streaming
Near Real-time
SparkSQL
Structured Data
MLLib
Machine Learning
GraphX
Graph Analysis
Great combo
CREATE TA...
How does it work? OSS Stack
Executer
Master
Worker
Executer
Executer
Server
How does it work? OSS Stack
Master
Worker
0-24
Token Ranges
0-100
25-49
50-74
75-99
I will only
analyze 25% of
the data.
W...

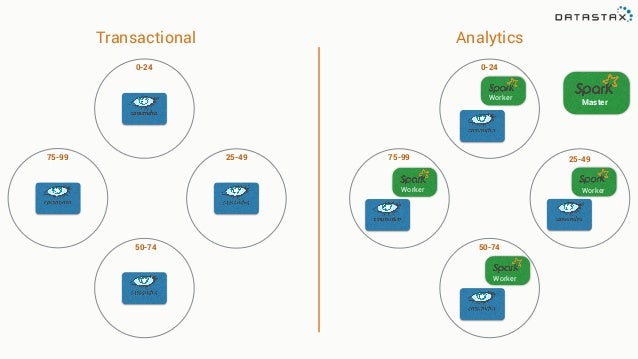

Master
0-24
25-49
50-74
75-99
AnalyticsTransactional
Worker
WorkerWorker
Worker
0-24
75-99 25-49
50-74
75-99
SELECT *
FROM keyspace.table
WHERE token(pk) > 75
AND token(pk) <= 99

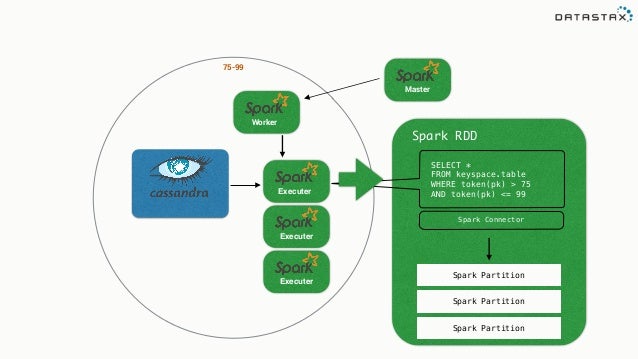

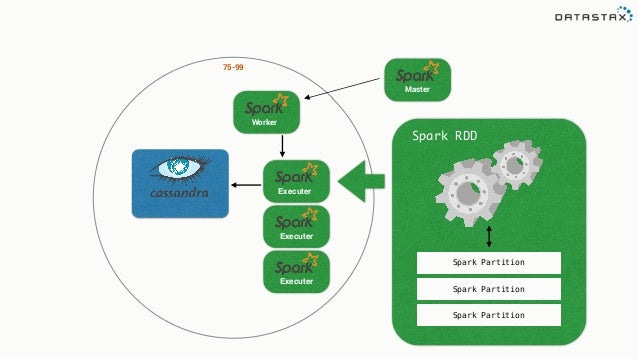

Spark RDD
Spark Partition
Spark Partition
Spar...
Spark RDD
Spark Partition
Spark Partition
Spark Partition
Master
Worker
Executer
Executer
Executer
75-99

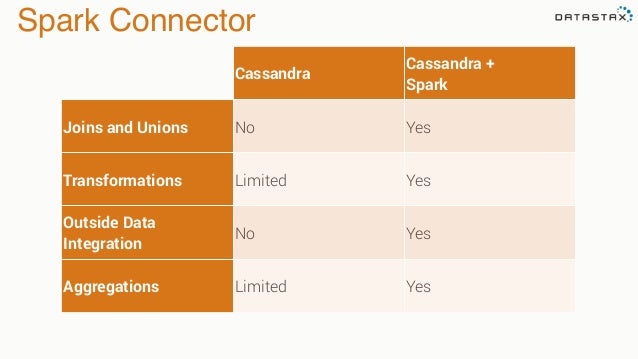

Spark Connector
Cassandra
Cassandra +
Spark
Joins and Unions No Yes
Transformations Limited Yes
Outside Data
Integration
N...

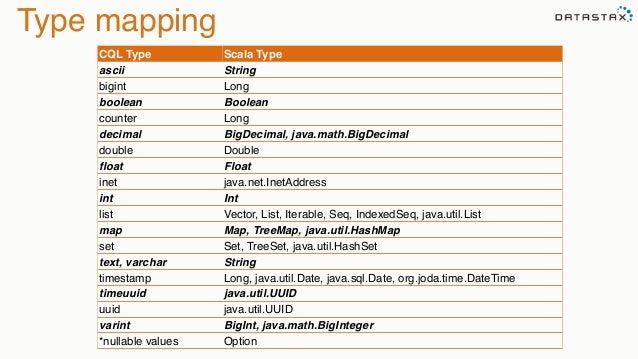

Type mapping
CQL Type Scala Type
ascii String
bigint Long
boolean Boolean
counter Long
decimal BigDecimal, java.math.BigDe...
Confidential

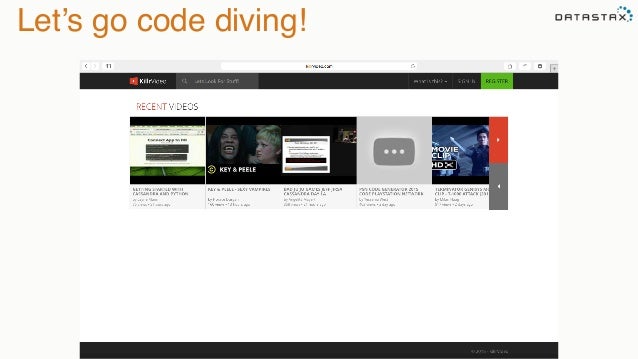

Let’s go code diving!

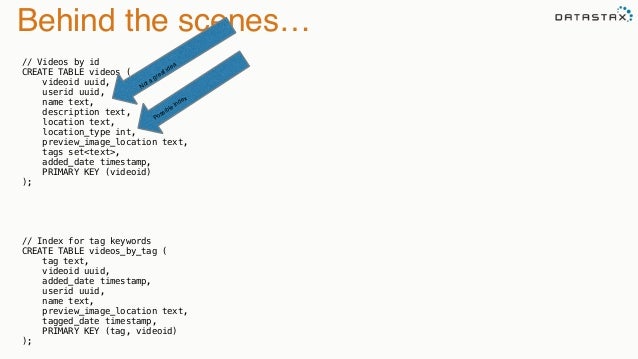

Behind the scenes…
// Videos by id
CREATE TABLE videos (
videoid uuid,
userid uuid,
name text,
description text,
location ...

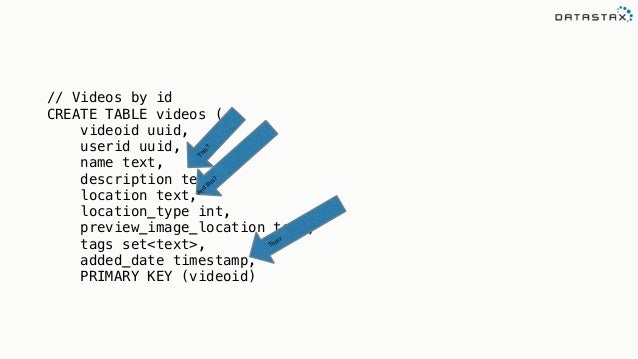

// Videos by id
CREATE TABLE videos (
videoid uuid,
userid uuid,
name text,
description text,
location text,
location_type...

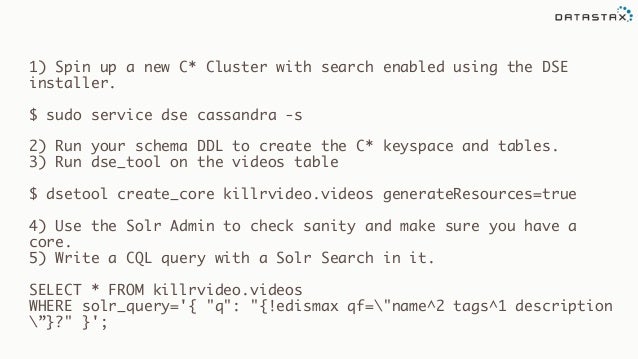

1) Spin up a new C* Cluster with search enabled using the DSE
installer.
$ sudo service dse cassandra -s
2) Run your schem...

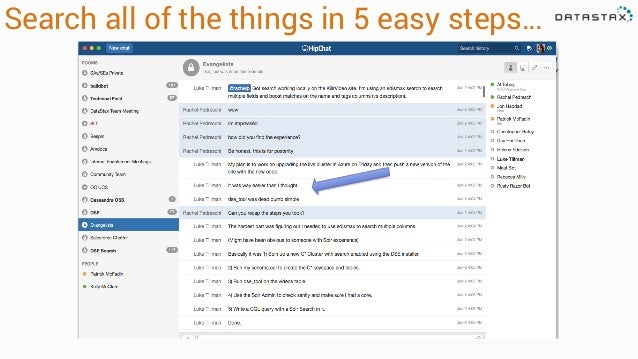

Search all of the things in 5 easy steps…

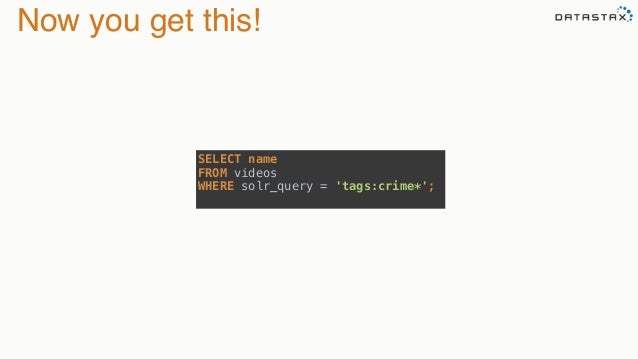

Now you get this!
SELECT name

FROM videos

WHERE solr_query = 'tags:crime*';

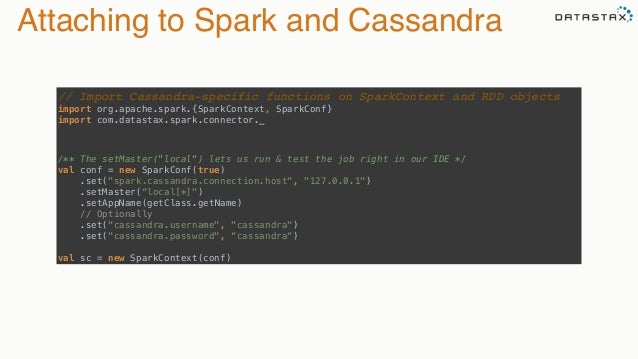

Attaching to Spark and Cassandra
// Import Cassandra-specific functions on SparkContext and RDD objects
import org.apache....

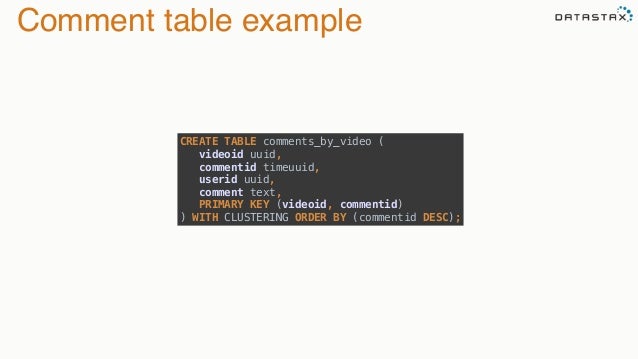

Comment table example
CREATE TABLE comments_by_video (

videoid uuid,

commentid timeuuid,

userid uuid,

comment text,

P...

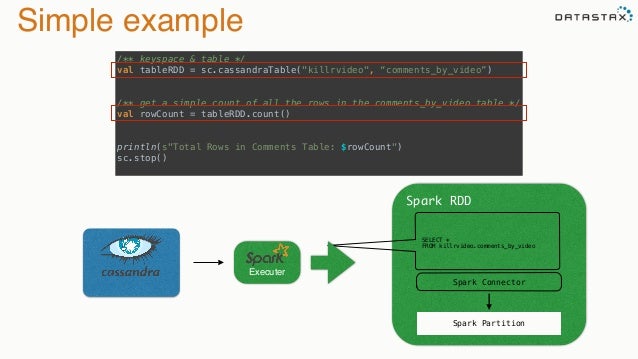

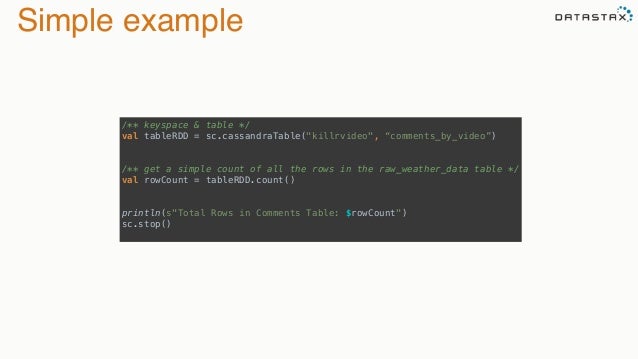

Simple example
/** keyspace & table */

val tableRDD = sc.cassandraTable("killrvideo", “comments_by_video”)





/** get a...
Simple example
/** keyspace & table */

val tableRDD = sc.cassandraTable("killrvideo", “comments_by_video”)





/** get a...

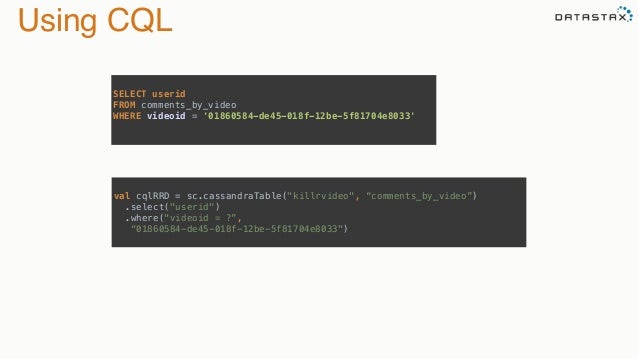

Using CQL
SELECT userid

FROM comments_by_video

WHERE videoid = '01860584-de45-018f-12be-5f81704e8033'

val cqlRRD = sc.c...

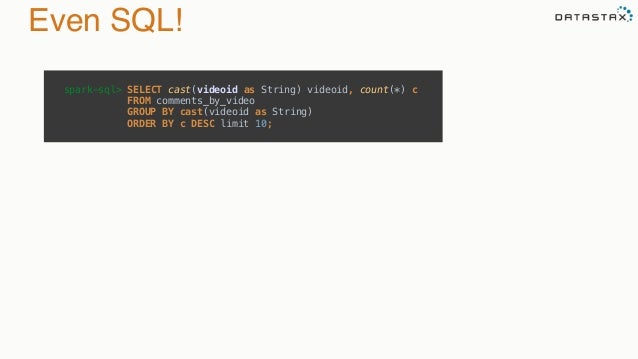

Even SQL!
spark-sql> SELECT cast(videoid as String) videoid, count(*) c
FROM comments_by_video

GROUP BY cast(videoid as S...

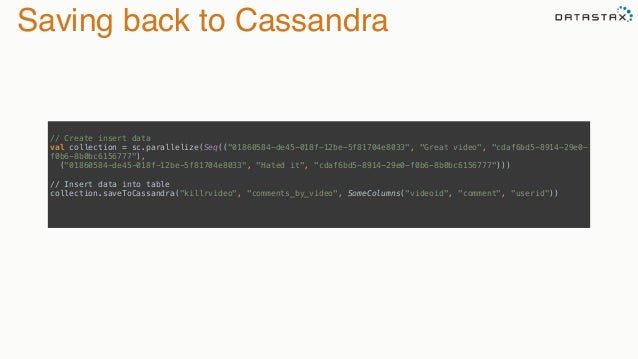

Saving back to Cassandra
// Create insert data

val collection = sc.parallelize(Seq(("01860584-de45-018f-12be-5f81704e8033...


val solrQueryRDD = sc.cassandraTable("killrvideo", “videos")
.select("name").where("solr_query='tags:crime*'")



solrQu...
C*
C*/Solr C*/Spark
OLTP
Search Analytics
Confidential
Resources
www.killrvideo.com
https://github.com/LukeTillman/killrvideo-csharp
www.datastax.com
Thank You
A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise
A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise
A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise
A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise

Upcoming SlideShare

Loading in …5

×

  1. 1. We know stuff. And get people excited about it. Rachel Pedreschi @RachelPedreschi Patrick McFadin @PatrickMcFadin A Cassandra + Solr + Spark Love Triangle Using DataStax Enterprise 1
  2. 2. Not
 (all queries preplanned. Very Fast) Very
 (Ask anything, anytime. Slowest)
 Adhociness C* Search Analytics
  3. 3. What is Search?
  4. 4. The bright blue butterfly hangs on the breeze. [the] [bright] [blue] [butterfly] [hangs] [on] [the] [breeze] Tokens
  5. 5. Credit: https://developer.apple.com/library/mac/documentation/userexperience/conceptual/SearchKitConcepts/searchKit_basics/searchKit_basics.html Terms
  6. 6. It can be lonely for Solr

  7. 7. + =
  8. 8. Cassandra ✓ Highly available ✓ Linear scalability ✓ Low latency OLTP queries C*
  9. 9. Like… High Availability
  10. 10. Data Partitioning Application Data Center 1 hash(key) => token(43) 80 10 3050 70 60 40 20
  11. 11. Replication Data Center 1 hash(key) => token(43) replication factor = 3 80 10 3050 70 60 40 20 Application
  12. 12. Multi-Data Center Replication Data Center 1 hash(key) => token(43) replication factor = 3 80 10 3050 70 60 40 20 Data Center 2 replication factor = 3 81 11 3151 71 61 41 21 Application
  13. 13. How does DSE integrate Solr? C* C*/Solr Transactional Search
  14. 14. SELECT * FROM killrvideo.videos WHERE solr_query='{ "q": "{!edismax qf="name^2 tags^1 description”}datastax" }'; SELECT id, value FROM keyspace.table WHERE token(id) >= -3074457345618258601 AND token(id) <= 3074457345618258603 AND solr_query='id:*'
  15. 15. Vocab Cassandra term Solr term Column Family /Table Core Row Document Column Field SSTable Index
  16. 16. … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 18 Node memory Node file system Client partition key1 first:Oscar last:Orange level:42 partition key2 first:Ricky last:Red Memtable (corresponds to a CQL table) Coordinator CommitLog AppendOnly … … … … … … … … … … … … SSTables Flush current state to SSTable Compact related
 SSTables W rite
 <3, Betty, Blue, 63> Acknowledge partition key3 first:Betty last:Blue level:63 Compaction Each write request … Periodically … Periodically …
  17. 17. … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 19 Node memory Node file system Client 1 best 1 2 bright 2,3 Ram Buffer Coordinator … … … … … … … … … … … … Segments Flushes current state to Segment (Softcommit) Write
 <1,blue, 2,3> 3 blue 2,3 Merge (STW) Each write request … Periodically … On C* Memtable Flush, In memory segments hard commit to disk Shard Router … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …
  18. 18. … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 20 Node memory Node file system 1 best 1 2 bright 2,3 Ram Buffer … … … … … … … … … … … … Segments 3 blue 2,3 Not Searchable Searchable Coordinator Shard Router … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …
  19. 19. And… Scalability
  20. 20. 80 10 3050 70 60 40 20 Data Center 1 Application
  21. 21. Data Center 1 80 10 30 50 70 60 40 20 Application
  22. 22. Data Center 1 80 8 32 56 72 64 48 16 24 4040 24 Application
  23. 23. Even… Improved Performance
  24. 24. Standard Solr Indexing DSE Search Live Indexing
  25. 25. Spark and Cassandra
  26. 26. Great combo Store a ton of data Analyze a ton of data
  27. 27. Great combo Spark Streaming Near Real-time SparkSQL Structured Data MLLib Machine Learning GraphX Graph Analysis
  28. 28. Spark Streaming Near Real-time SparkSQL Structured Data MLLib Machine Learning GraphX Graph Analysis Great combo CREATE TABLE raw_weather_data ( wsid text, year int, month int, day int, hour int, temperature double, dewpoint double, pressure double, wind_direction int, wind_speed double, sky_condition int, sky_condition_text text, one_hour_precip double, six_hour_precip double, PRIMARY KEY ((wsid), year, month, day, hour) ) WITH CLUSTERING ORDER BY (year DESC, month DESC, day DESC, hour DESC); Spark Connector
  29. 29. How does it work? OSS Stack Executer Master Worker Executer Executer Server
  30. 30. How does it work? OSS Stack Master Worker 0-24 Token Ranges 0-100 25-49 50-74 75-99 I will only analyze 25% of the data. Worker Worker Worker
  31. 31. Master 0-24 25-49 50-74 75-99 AnalyticsTransactional Worker WorkerWorker Worker 0-24 75-99 25-49 50-74
  32. 32. 75-99 SELECT * FROM keyspace.table WHERE token(pk) > 75 AND token(pk) <= 99 Spark RDD Spark Partition Spark Partition Spark Partition Spark Connector Executer Executer Executer Worker Master
  33. 33. Spark RDD Spark Partition Spark Partition Spark Partition Master Worker Executer Executer Executer 75-99
  34. 34. Spark Connector Cassandra Cassandra + Spark Joins and Unions No Yes Transformations Limited Yes Outside Data Integration No Yes Aggregations Limited Yes
  35. 35. Type mapping CQL Type Scala Type ascii String bigint Long boolean Boolean counter Long decimal BigDecimal, java.math.BigDecimal double Double float Float inet java.net.InetAddress int Int list Vector, List, Iterable, Seq, IndexedSeq, java.util.List map Map, TreeMap, java.util.HashMap set Set, TreeSet, java.util.HashSet text, varchar String timestamp Long, java.util.Date, java.sql.Date, org.joda.time.DateTime timeuuid java.util.UUID uuid java.util.UUID varint BigInt, java.math.BigInteger *nullable values Option
  36. 36. Confidential Let’s go code diving!
  37. 37. Behind the scenes… // Videos by id CREATE TABLE videos ( videoid uuid, userid uuid, name text, description text, location text, location_type int, preview_image_location text, tags set<text>, added_date timestamp, PRIMARY KEY (videoid) ); // Index for tag keywords CREATE TABLE videos_by_tag ( tag text, videoid uuid, added_date timestamp, userid uuid, name text, preview_image_location text, tagged_date timestamp, PRIMARY KEY (tag, videoid) ); Not a great idea Possible Index
  38. 38. // Videos by id CREATE TABLE videos ( videoid uuid, userid uuid, name text, description text, location text, location_type int, preview_image_location text, tags set<text>, added_date timestamp, PRIMARY KEY (videoid) And this? This? This?
  39. 39. 1) Spin up a new C* Cluster with search enabled using the DSE installer. $ sudo service dse cassandra -s 2) Run your schema DDL to create the C* keyspace and tables. 3) Run dse_tool on the videos table $ dsetool create_core killrvideo.videos generateResources=true 4) Use the Solr Admin to check sanity and make sure you have a core. 5) Write a CQL query with a Solr Search in it. SELECT * FROM killrvideo.videos WHERE solr_query='{ "q": "{!edismax qf="name^2 tags^1 description ”}?" }';
  40. 40. Search all of the things in 5 easy steps…
  41. 41. Now you get this! SELECT name
 FROM videos
 WHERE solr_query = 'tags:crime*';
  42. 42. Attaching to Spark and Cassandra // Import Cassandra-specific functions on SparkContext and RDD objects import org.apache.spark.{SparkContext, SparkConf}
 import com.datastax.spark.connector._ /** The setMaster("local") lets us run & test the job right in our IDE */
 val conf = new SparkConf(true) .set("spark.cassandra.connection.host", "127.0.0.1") .setMaster(“local[*]") .setAppName(getClass.getName) // Optionally
 .set("cassandra.username", "cassandra")
 .set("cassandra.password", “cassandra")
 val sc = new SparkContext(conf)
  43. 43. Comment table example CREATE TABLE comments_by_video (
 videoid uuid,
 commentid timeuuid,
 userid uuid,
 comment text,
 PRIMARY KEY (videoid, commentid)
 ) WITH CLUSTERING ORDER BY (commentid DESC);
  44. 44. Simple example /** keyspace & table */
 val tableRDD = sc.cassandraTable("killrvideo", “comments_by_video”)


 /** get a simple count of all the rows in the raw_weather_data table */
 val rowCount = tableRDD.count()


 println(s"Total Rows in Comments Table: $rowCount")
 sc.stop()
  45. 45. Simple example /** keyspace & table */
 val tableRDD = sc.cassandraTable("killrvideo", “comments_by_video”)


 /** get a simple count of all the rows in the comments_by_video table */
 val rowCount = tableRDD.count()


 println(s"Total Rows in Comments Table: $rowCount")
 sc.stop() Executer SELECT * FROM killrvideo.comments_by_video Spark RDD Spark Partition Spark Connector
  46. 46. Using CQL SELECT userid
 FROM comments_by_video
 WHERE videoid = '01860584-de45-018f-12be-5f81704e8033'
 val cqlRRD = sc.cassandraTable("killrvideo", “comments_by_video”)
 .select("userid")
 .where("videoid = ?”,
 “01860584-de45-018f-12be-5f81704e8033")
  47. 47. Even SQL! spark-sql> SELECT cast(videoid as String) videoid, count(*) c FROM comments_by_video
 GROUP BY cast(videoid as String)
 ORDER BY c DESC limit 10;
  48. 48. Saving back to Cassandra // Create insert data
 val collection = sc.parallelize(Seq(("01860584-de45-018f-12be-5f81704e8033", "Great video", "cdaf6bd5-8914-29e0- f0b6-8b0bc6156777"),
 ("01860584-de45-018f-12be-5f81704e8033", "Hated it", "cdaf6bd5-8914-29e0-f0b6-8b0bc6156777")))
 // Insert data into table
 collection.saveToCassandra("killrvideo", "comments_by_video", SomeColumns("videoid", "comment", "userid"))


  49. 49.
 val solrQueryRDD = sc.cassandraTable("killrvideo", “videos") .select("name").where("solr_query='tags:crime*'")

 solrQueryRDD.collect().map(row => println(row.getString("name")))
  50. 50. C* C*/Solr C*/Spark OLTP Search Analytics
  51. 51. Confidential Resources www.killrvideo.com https://github.com/LukeTillman/killrvideo-csharp www.datastax.com
  52. 52. Thank You
