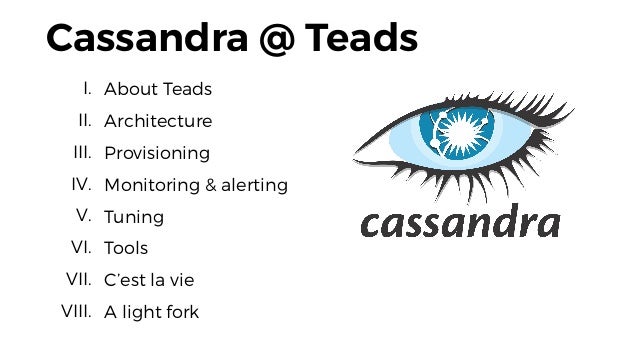

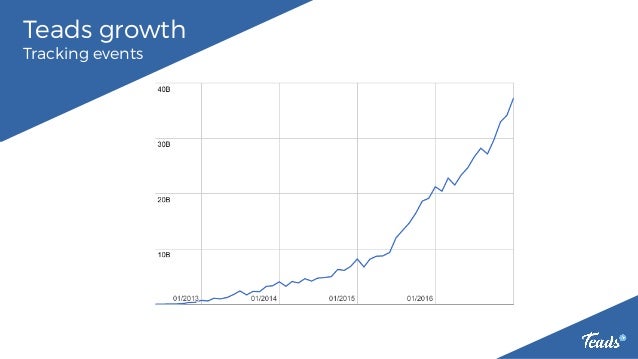

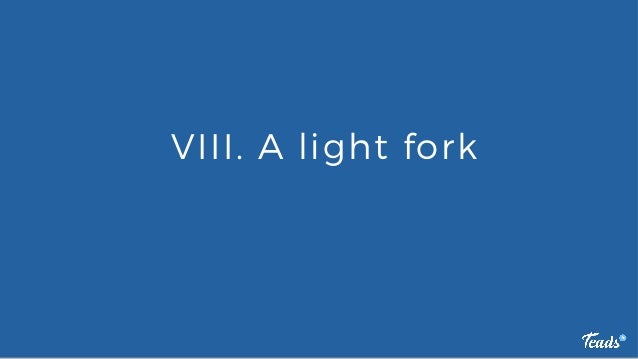

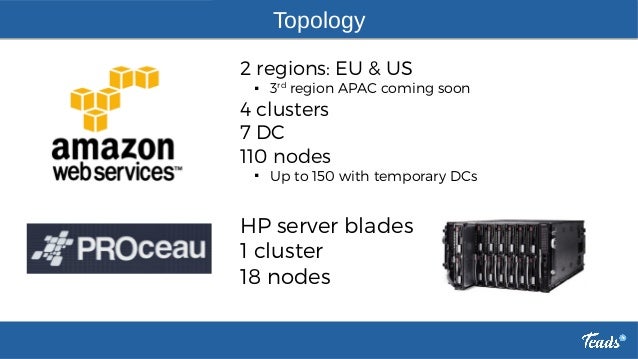

Cassandra at teads SlideShare Explorer Vous Ce diaporama a bien été signalé.Cassandra at teadsProchain SlideShareChargement dans…5× 0 commentaire 1 j’aime Statistiques Remarques Atharva Chauthaiwale , AWS Certified | Cloud Native & Microservices Enthusiast at Principal Software Engineer Aucun téléchargementAucune remarque pour cette diapositive 1. Cassandra @Lyon Cassandra UsersRomain Hardouin - Cassandra architect @ Teads2017-02-16 2. I.II.III.IV.V.VI.VII.VIII.Cassandra @ TeadsAbout TeadsArchitectureProvisioningMonitoring & alertingTuningToolsC’est la vieA light fork 3. I. About Teads 4. Teads is theinventor ofnative videoadvertisingWith inRead,an award-winningformat**IPA Media owner survey 2014, IAB recognized format 5. 27 officesin 21 countries500+Global employees1.2B usersGlobal reach90+R&D employees 6. Teads growthTracking events 7. Advertisers (to name a few) 8. Publishers (to name a few) 9. II. Architecture 10. Custom C* 2.1.16C* 3.0 jvm.optionsC* 2.2 logbackBackportsPatchesApache Cassandra versionApache Cassandra version 11. UsageUsageUp to 940K qps: Writes vs Reads 12. TopologyTopology2 regions: EU & US3rdregion APAC coming soon4 clusters7 DC110 nodesUp to 150 with temporary DCsHP server blades1 cluster18 nodes 13. AWS nodes 14. i2.2xlarge8 vCPU 61GB2 x 800 GB attached SSD in RAID0c3.4xlarge16 vCPU 30GB2 x 160 GB attached SSD in RAID0c4.4xlarge16 vCPU 30GBEBS 3.4 TB + 1 TBAWS instance typesAWS instance typesTons of countersBig Data, wide rowsMany billions keys, LCS with TTL 15. 20 x c4.4xlarge with SSD GP23.4 TB data 10,000 IOPS⇒ 16KB1 TB commitlog 3,000 IOPS⇒ 16KB25 tables: batch + real timeTemporary DCCheap storage, great for STCSSnapshots (S3 backup)No coupling between disks and CPU/RAMHigh latency => high I/O waitThroughput: 160 MB/sUnsteady performancesMore on EBS nodesMore on EBS nodes 16. Physical nodes 17. HP Apollo XL170R Gen912 CPU Xeon @ 2.60GHz128 GB RAM3 x 1,5 TB High-end SSD in RAID0Hardware nodesHardware nodesFor Big Data, supersedes EBS DC 18. DC/Cluster split 19. Instance type changeInstance type change20 x i2.2xlarge 20 x c3.4xlargeCountersCheaper and more CPUsCounters RebuildDC X DC Y 20. Workload isolationWorkload isolation20 x i2.2xlarge 20 x c3.4xlargeCounters +Big DataCounters20 x c4.4xlargeBig DataEBSStep 1: DC splitDC A DC B DC CRebuild+ 21. Workload isolationWorkload isolation20 x c4.4xlargeBig DataEBSStep 2: Cluster splitBig DataAWS Direct Connect 22. Data model 23. “KISS” principleNo fancy stuffNo secondary indexNo list/set/tupleNo UDT 24. III. Provisioning 25. Capistrano Chef→Custom Cookbooks:C*C* toolsC* reaperDatadog wrapperChef provisioning to spawn a clusterNowNow 26. C* cookbookmichaelklishin/cassandra-chef-cookbook+ Teads custom wrapperTerraform + Chef provisionerFutureFuture 27. IV. Monitoring & alerting 28. PastPastOpsCenter (Free) 29. Turnkey dashboardsSupport is reactiveMain metrics onlyPer host graphsimpossible with many hosts 30. Ring viewMore than monitoringLots of metricsStill lacks some metricsDashboard creation: no templatesAgent is heavyFree version limitations:Data stored in production clusterApache C* <= 2.1 onlyDataStax OpsCenterFree version (v5) 31. All metrics you wantDashboard creation●TemplatingTimeBoard vs ScreenBoardGraph creationAggregation, trend, rate, anomaly detectionNo turnkey dashboards yetMay change: TLP templatesAdditional fees if >350 metricsWe need to increase this limit for our use case 32. Now we can easilyFind outliersCompare a node to averageCompare two DCsExplore a node’s metricsCreate overview dashboardsCreate advanced dashboards fortroubleshooting 33. Datadog’s cassandra.yamlDatadog’s cassandra.yaml- include:bean_regex: org.apache.cassandra.metrics:type=ReadRepair,name=*attribute:- Count- include:bean_regex: org.apache.cassandra.metrics:type=CommitLog,name=(WaitingOnCommit|WaitingOnSegmentAllocation)attribute:- Count- 99thPercentile- include:bean: org.apache.cassandra.metrics:type=CommitLog,name=TotalCommitLogSize- include:bean: org.apache.cassandra.metrics:type=ThreadPools,path=transport,scope=Native-Transport-Requests,name=MaxTasksQueuedattribute:Value:alias: cassandra.ntr.MaxTasksQueued 34. ScreenBoardScreenBoard 35. TimeBoardTimeBoardalphabetagammadeltaepsilonzetaetaalpha 36. ExampleExampleHints monitoring during maintenance on physical nodesStorageStreaming 37. Datadog AlertingDown nodeExceptionsCommitlog sizeHigh latencyHigh GCHigh IO WaitHigh PendingsMany hintsLong thrift connectionsClock out of syncDisk space…Don’t miss this oneDon’t forget / 38. V. Tuning 39. Java 8CMS G1→cassandra-env.sh-Dcassandra.max_queued_native_transport_requests=4096-Dcassandra.fd_initial_value_ms=4000-Dcassandra.fd_max_interval_ms=4000 40. GC logs enabled-XX:MaxGCPauseMillis=200-XX:G1RSetUpdatingPauseTimePercent=5-XX:G1HeapRegionSize=32m-XX:G1HeapWastePercent=25-XX:InitiatingHeapOccupancyPercent=?-XX:ParallelGCThreads=#CPU-XX:ConcGCThreads=#CPU-XX:+ExplicitGCInvokesConcurrent-XX:+ParallelRefProcEnabled-XX:+UseCompressedOopsjvm.optionsjvm.options-XX:HeapDumpPath= <dir with enough free space>-XX:ErrorFile= <custom dir>-Djava.io.tmpdir= <custom dir>-XX:-UseBiasedLocking-XX:+UseTLAB-XX:+ResizeTLAB-XX:+PerfDisableSharedMem-XX:+AlwaysPreTouch...Backport from C* 3.0 41. num_tokens: 256native_transport_max_threads: 256 or 128compaction_throughput_mb_per_sec: 64concurrent_compactors: 4 or 2concurrent_reads: 64concurrent_writes: 128 or 64concurrent_counter_writes: 128hinted_handoff_throttle_in_kb: 10240max_hints_delivery_threads: 6 or 4memtable_cleanup_threshold: 0.6, 0.5 or 0.4memtable_flush_writers: 4 or 2trickle_fsync: truetrickle_fsync_interval_in_kb: 10240dynamic_snitch_badness_threshold: 2.0internode_compression: dcAWS nodesAWS nodesHeapc3.4xlarge: 15 GBi2.2xlarge: 24 GB 42. EBS volume != diskcompaction_throughput_mb_per_sec: 32concurrent_compactors: 4concurrent_reads: 32concurrent_writes: 64concurrent_counter_writes: 64trickle_fsync_interval_in_kb: 1024AWS nodesAWS nodesHeapc4.4xlarge: 15 GB 43. num_tokens: 8initial_token: ...native_transport_max_threads: 512compaction_throughput_mb_per_sec: 128concurrent_compactors: 4concurrent_reads: 64concurrent_writes: 128concurrent_counter_writes: 128hinted_handoff_throttle_in_kb: 10240max_hints_delivery_threads: 6memtable_cleanup_threshold: 0.6memtable_flush_writers: 8trickle_fsync: truetrickle_fsync_interval_in_kb: 10240Hardware nodesHardware nodesMore on this laterHeap: 24 GB 44. Why 8 tokens?Better repair performance, important for Big DataEvenly distributed tokens, stored in a Chef data bagHardware nodesHardware nodes./vnodes_token_generator.py --json --indent 2 --servers hosts_interleaved_racks.txt 4{"192.168.1.1": "-9223372036854775808,-4611686018427387905,-2,4611686018427387901","192.168.2.1": "-7686143364045646507,-3074457345618258604,1537228672809129299,6148914691236517202","192.168.3.1": "-6148914691236517206,-1537228672809129303,3074457345618258600,7686143364045646503"}https://github.com/rhardouin/cassandra-scriptsWatch out! Know the drawbacks 45. Small entries, lots of readscompression = {'chunk_length_kb': '4','sstable_compression': 'org.apache.cassandra.io.compress.LZ4Compressor'}+ nodetool scrub (few GB)CompressionCompression 46. Disabled on 2 small clustersdynamic_snitch: falseLess hop countDynamic SnitchDynamic Snitch 47. Client side latencyDynamic SnitchDynamic SnitchP95P75Mean 48. Which node to decommission?DownscaleDownscale 49. Clients 50. Scala appsDataStax driver wrapperSpark & Spark streamingDataStax Spark Cassandra Connector 51. DataStax driver policyLatencyAwarePolicy TokenAwarePolicy→LatencyAwarePolicyHotspots due to premature nodes evictionNeeds thorough tuning and steady workloadWe drop itTokenAwarePolicyShuffle replicas depending on CL 52. For cross-region scheduled jobsVPN between AWS regions20 executors with 6GB RAMoutput.consistency.level = (LOCAL_)ONEoutput.concurrent.writes = 50connection.compression = LZ4 53. Useless writes99% of empty unlogged batches on one DCWhat an optimization! 54. VI. Tools 55. {Parallel SSH + cron} on steroidsSecurityHistorywho/what/when/whyOutput is keptCQL migrationRolling restartNodetool or JMX commandsBackup and snapshot jobs“Job Scheduler &Runbook Automation”We added a “comment” field 56. Scheduled range repairSegments: up to 20,000 for TB tablesHosted fork for C* 2.1We will probably switch to TLP’s forkWe do not use incremental repairsSee fix in C* 4.0 57. cassandra_snapshotterBackup on S3Scheduled with RundeckWe created and use a forkSome PR merged upstreamRestore PR still to be merged 58. Logs management"C* " and "out of sync""C* " and "new session: will sync" | count...Alerts on pattern"C* " and "[ERROR]""C* " and "[WARN]" and not ( … )... 59. VII. C’est la vie 60. Cassandraissues & failures 61. OS reboot… seems harmless, right?Cassandra service enabledWant a clue?C* 2.0 + countersUpgrade to C* 2.1 was a reliefWithout any obvious reason 62. Upgrade 2.0 2.1→LCS cluster sufferedHigh loadPending compactions was growingSwitch to off heap memtableLess GC => less loadReduce clients loadBetter after sstables upgradeTook days 63. Upgrade 2.0 2.1→Lots of NTR “All time blocked”NTR queue undersized for our workload128 (hard coded)We add a property to test CASSANDRA-11363and set value higher and higher… up to 4096NTR pool needs to be sized accordingly 64. After replacing nodesDELETE FROM system.peersWHERE peer = '<replaced node>';Used by DataStax Driver for auto discovery 65. AWSissues & failures 66. When you have to shoot, shoot, don’t talk!The Good, the Bad and the Ugly 67. We’ll shoot your instanceWe shot your instanceEBS volume latency spikeEBS volume unreachable 68. SSDSSD 69. SSDSSDdstat -tnvlr 70. Hardwareissues & failures 71. One SSD failedCPUs suddendly became slow onone serverSmart Array Battery BIOS bugYup, not a SSD... 72. VIII. A light fork 73. Why a fork?1. Need to add a patch ASAPHigh Blocked NTR CASSANDRA-11363Require to deploy from source2. Why not backport interesting tickets?3. Why not add small features/fixes?Expose tasks queue length via JMX CASSANDRA-12758You betcha! 74. A tiny forkWe keep it as small as possible to fit our needsEven smaller when we will upgrade to C* 3.0Backports will be obsolete 75. « Hey, if your fork is tiny,is it that useful? » 76. One example: repair 77. Backport ofCASSANDRA-12580Paulo Motta: log2vs ln 78. Get these info without DEBUG burdenOriginal fixOne-liner fix 79. The most impressive result for a set of tables:Before: 23 daysWith CASSANDRA-12580: 16 hoursLongest repair for a table: 2,5 daysImpossible to repair this table before the patchFit in gc_grace_seconds 80. It was a critical fix for usIt should have landed in 2.1.17 IMHO*Repair is a mandatory operation in many use casesPaulo already made the patch for 2.1C* 2.1 is widely used[*] Full post: http://www.mail-archive.com/user@cassandra.apache.org/msg49344.html 81. « Why bother with backports?Why not upgrade to 3.0? » 82. Because C* is critical for our businessWe don’t need fancy stuff (SASI, MV, UDF, ...)We just want a rock solid scalable DBC* 2.1 does the job for the time beingWe p la n to up grade to C * 3 .0 i n 201 7We wi l l do th o ro ugh te s ts ; - ) 83. « What about C* 2.2? » 84. C* 2.2 has some nice improvements:Boostrapping with LCS: send source sstable level 1Range movement causes CPU & performance impact 2Resumable bootstrap/rebuild streaming 3[1] CASSANDRA-7460[2] CASSANDRA-9258[3] CASSANDRA-8838, CASSANDRA-8942, CASSANDRA-10810But migration path 2.2 3.0 is risky→Just my opinion based on users mailing listDSE never used 2.2 85. Questions? 86. Thanks!C* devs for their awesome workZenika for hosting this meetupYou for being here! Suggestions Office 365 : L'essentiel de PowerPointCours en ligne - LinkedIn Learning Faire un bon pitchCours en ligne - LinkedIn Learning Développer son assertivitéCours en ligne - LinkedIn Learning Cassandra advanced data modelingRomain Hardouin Cassandra: Open Source Bigtable + Dynamojbellis The Be-All, End-All List of Small Business Tax DeductionsWagepoint Advanced Apache Cassandra Operations with JMXzznate Troubleshooting RabbitMQ and services that use itMichael Klishin Cassandra Troubleshooting 3.0J.B. Langston Cassandra trainingAndrás Fehér English Español Português Français Deutsch À propos Blog Conditions générales Confidentialité Droits d’auteur LinkedIn Corporation © 2019 Clipboards publics comportant cette diapositiveAucun clipboard public n’a été trouvé avec cette diapositiveSélectionnez un autre clipboard ×Il semblerait que vous ayez déjà ajouté cette diapositive à .Créer un clipboardVous avez clippé votre première diapositive ! En clippant ainsi les diapos qui vous intéressent, vous pourrez les revoir plus tard. Personnalisez le nom d’un clipboard pour mettre de côté vos diapositives. Description Visibilité Le clipboard est visible par tous
